Raritan

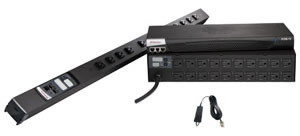

Raritan PX2-1725
- Voltage: 208V 3-Ph Delta
- Amperage: 30A
- Input: NEMA L21-30P
- Output: (24) C13 + (12) C19
- Form Factor: 0U Vertical
The Raritan PX2-1725 is a part of the PX-1000 family of high-quality rack power distribution units (PDUs). These PDUs offer real-time remote unit-level power monitoring of current (amps), voltage, power (kVA, kW), power factor and energy consumption (kWh) with ISO/IEC +/- 1% billing-grade accuracy. The PX2-1725 also supports Raritan's plug-and-play environmental sensors. Users can define thresholds and receive alerts when thresholds are crossed for both power and environmental events.
The PX-1000 series is available in Zero U (vertical mount) and 1U (horizontal mount) form factors with a wide variety of NEMA, IEC and other plugs and receptacles, including models which support high power distribution such as 400V. Precise power information can be monitored, and the PX-1000 configured, via a user-friendly Web browser GUI or command line interface. Power information is also displayed at the PDU locally. Security is ensured with up to 256-bit encryption, strong passwords and advanced authorization options, including permissions, LDAP/S and Active Directory. Plus the PX-1000 series is fully compatible with Raritan's Power IQ energy management software solutions.
Raritan PX2-1725's Input:
- Nominal voltage: 208V AC, three phase delta
- Maximum line current per phase: 30A
- Rated current: 24A per phase
- Load capacity: 8.6 kVA
- Frequency: 50-60 Hz
- Plug type: NEMA L21-30P
Raritan PX2-1725's Output:
- Nominal voltage: 208V AC
- Maximum current draw: 20A per circuit
- Unswitched receptacles: 24 x IEC C-13, 12 x IEC C-19
- Overload protection: 3 x double-pole 20A UL 489 circuit breakers
