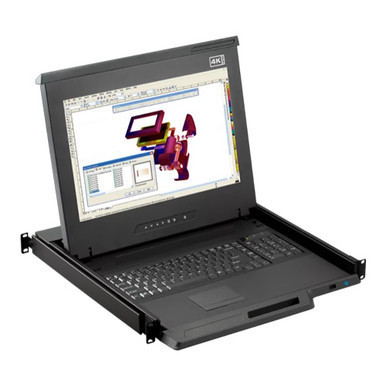

Austin Hughes K117-X

1U 17" 4K LED-backlit LCD Console Drawer

No reviews yet
Product Code: K117-X
MSRP: $2,333.00
$2,153.00
(You save $180.00 )
Choose Options:

The new CyberView K117 is a 1U 4K 17" Rack Mount Monitor Drawer. D Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

K117 Features and Benefits

  • 1U 17" 4K LCD console drawer
  • 3840 x 2160 native resolution / 16.7M colors ( 8-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • Display port 1.2 video input / USB KB / MS
  • 104-key keyboard with either touchpad or trackball options
  • Built-in dual stereo speakers
  • Short depth design of 480mm
  • One Man installation design
  • Enhanced aesthetics with new molded front panel
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more
  • 6ft combo cable included
  • 2-year standard warranty ( upgradable up to 5 years )

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • HDMI 2.0 (HDCP 2.2) video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • Additional languages supported
  • Touchscreen: Resistive 1-pt, Projective 10-pt

Cyberview K117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 18.9 in.
(44 x 442 x 579.12 mm.)
Console w/ KVM 1.73 x 17.4 x 22.8 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net Weight
Single Console 24 lbs. (10.9 kg)
Console w/ KVM 26.6 lbs. (12.1 kg)
Gross Weight
Single Console 34.8 lbs. (15.8 kg)
Console w/ KVM 39.8 lbs. (18.1 kg)
Mounting Distance
Single Console 19.3 ~ 28.3 inch
(490 ~ 720 mm)
Console w/ KVM 19.3 ~ 31.5 inch
(490 ~ 800 mm)
Console Ports
Video Input Display port 1.2
Video Option HDMI 2.0 / HDCP 2.2
KB / MS USB type B
DP console 6ft cable : CP-6 Drawer end : DP + USB type B (KB / MS)
Server end : DP + USB type A
LCD Screen
LCD panel size (diagonal) 17.3"
Backlight type LED
Native resolution 3840 x 2160 60Hz
Brightness (cd/m2) 300
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 1000 : 1
Viewing angle (L/R/U/D) 89/89/89/89
Response time (ms) 16
Dot pitch (mm) 0.0995
Display area (mm) 382.12H x 214.94V
Surface treatment Anti-glare
Surface hardness 3H
MTBF (hrs) 20,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Output Connector 3.5mm stereo jack
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 29W / Max. 38W
Power saving mode Max. 9W / Max. 18W
Power button on Max. 2W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
