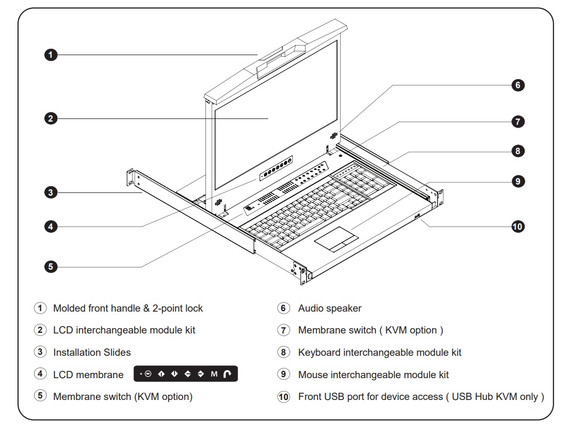

The new CyberView K119 is a 1U 4K UHD (3840 x 2160) @60Hz 18.4" Rack Mount Monitor Drawer that packs a 104-key USB keyboard, touchpad, and 4K monitor in a 1U rack mount console drawer. The K119 features a cutting edge flip-up design, 2-point lock, adjustable brackets for short depth mounting, built in dual speakers, and LCD OSD for administration and setting adjustments.
The CyberView K119 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, and mouse with this state-of-the-art, modular rack console drawer.
| Mechanical | |||||||
| Product Dimensions (H x W x D) | 1.73 x 17.4 x 18.1 in. (44 x 442 x 460 mm.) |
||||||
| Package Dimensions (H x W x D) | 5.5 x 23.2 x 31.8 in. (140 x 590 x 808 mm.) |
||||||
| Net Weight | 25.3 lbs. (11.5 kg) | ||||||
| Gross Weight | 35.2 lbs. (16 kg) | ||||||
| Mounting Distance | 18.5 ~ 27.6 inch (470 ~ 800 mm) |
||||||
| Console Ports | |||||||
| Video Input | Display port 1.2 | ||||||
| Optional Video Upgrade | HDMI 2.0 / HDCP 2.2 | ||||||
| KB / MS | USB Interface | ||||||
| DP console 6ft cable : CX-6DP | Drawer end : DP + USB type A x 2 Server end : DP + USB type A x 2 |
||||||
| LCD Screen | |||||||
| LCD panel size (diagonal) | 18.4" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 3840 x 2160 60Hz | ||||||
| Brightness (cd/m2) | 300 | ||||||
| Colors | 1.07B, 10-bit | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle (L/R/U/D) | 85/85/85/85 | ||||||
| Response time (ms) | 15 | ||||||
| Dot pitch (mm) | 0.1065 | ||||||
| Display area (mm) | 408.96H x 230.04V | ||||||
| Surface treatment | Anti-glare | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 30,000 | ||||||
| Audio Option | |||||||
| Speaker | 2 2W (Dual Stereo) | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption |
|
||||||
| Environmental | |||||||
| Operating Temperature | -20 to 70°C Degree | ||||||
| Storage Temperature | -20 to 70°C Degree | ||||||
| Operating humidity | 10 ~ 90%, non-condensing | ||||||
| Storage humidity | 5 ~ 95%, non-condensing | ||||||
| Operating altitude | 16,000 ft | ||||||
| Non-operating altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration |
| Model Number | Description |
| K119e | Base model with DisplayPort 1.2 video input |
| K119e-HDMI | HDMI input upgrade with HDMI 2.0 and DisplayPort 1.2 video inputs |
| K119e-SDI | SDI Input upgrade supporting 3G-SDI, HD-SDI, SD-SDI and DisplayPort 1.2 video |
| K119e-USB | Add-on Front USB port with DisplayPort 1.2 video |
| Other upgrades available including DC power, additional languages, and more. Call 1-866-722-5776 for availability. | |
