Server Technology C3B36RL-17kw

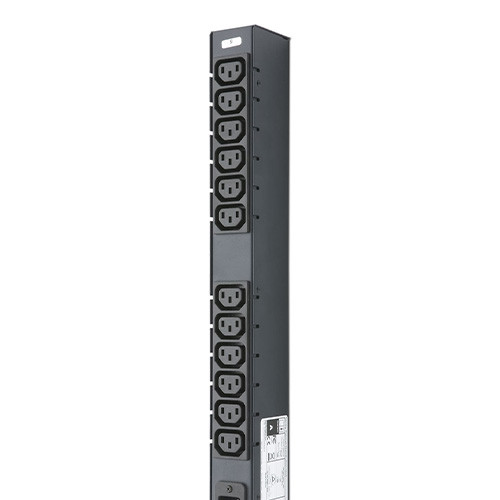

PRO3X Basic PDU 3-Phase 208V, 50-60A
• Orderable ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
Product Code:
C3B36RL-17kw
Condition:
New
Shipping:
Calculated at Checkout
Rack Units:
0
Form Factor:
0U
Total Number of Outlets:
36
Voltage:
208V
Current (Amps):
50A
Outlet Type:
C13
Outlet Type:
C19
Features:
High Temperature Rating
Features:
Locking Outlet
Current (Amps):
60A
$1,485.00
-->
This all new Server Technology 208V 3-Phase Basic PDU features RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords along with HDOT Cx, a hybrid C13/C19 outlet that accepts either an IEC C14 or C20 plug. The PDU features 18 dedicated HDOT C13 outlets and 18 HDOT Cx which can be treated as either a C13 or C19 outlet. Select either 50A or 60A input current and 3-phase Delta or 3-phase Wye input phase for a power capacity of 14.4 to 17.3 kW for all your high power server rack needs.
Key Features of the ServerTech PRO3X Basic C3B36RL 14.4kW – 17.3kW PDU
- HDOT Cx Outlets - Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.
- RamLock Locking Outlets - A mechanical locking mechanism built to secure the broadest range of C14 and C20 plugs in place.
- Branch Circuit Protection - This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetic-hydraulic circuit breakers or UL 248 fuses.
- High Temperature Rating - This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
- Flexible Mounting - Includes standard button mounts along with provisions for custom mounting brackets.
- Color-Coded Options - Select from six colors to designate PDU circuits in the data center — black, white, red, green, blue, and yellow. Please contact your Server Racks Online sales representative for colors other than black.
ServerTech PRO3X Basic C3B36RL 14.4kW – 17.3kW PDU Specifications:
| ELECTRICAL | |
| Voltage | 208V 3-Phase Delta or 3-Phase Wye |
| Input Current (A) | 50 or 60 amp |
| Outlets | 18 x RamLock C13 + 18 x RamLock Combo C13/C19 (cX) |
| Circuit Protection | 2-pole, 20A trip circuit breakers, six (6) branch, rating: ≤ 16A, 10 kAIC Interrupt Rating |
| Inlet | 208V Delta 60A IEC 60309 3P+G 9Hr, or 208V Wye 60A IEC 60309 3P+N+G 9Hr, or CS8365 3P+G 50A |
| PHYSICAL | |
| Product | 2.2W x 2.5D x 70 H (inch) |
| Net Weight | 30 (lbs) |
| ENVIRONMENTAL | |
| Operating Temperature | 0 to 60° (32 to 140°) |
| Storage Temperature | -30 to 80° (-22 to 176°) |
| Operating Humidity | 8 to 90%, non-condensing |
| COMPLIANCE | |
| Safety Certificates | Safety (Listed & Certified, cTUVus mark) UL 62368-1 CSA C22.2 No. 62368-1 |
| MPN | Input Current | Input Current Rated (de-rated) | Input Phase | Input Plug | Input Power Capacity |
| C3B36RL-DQJE0AT2 | 60A | 48A | 3-Phase Delta (L-L) |
208V Delta 60A IEC 60309 3P+G 9Hr | 17.3 kW |
| C3B36RL-DFJE0AT2 | 50A | 40A | 3-Phase Delta (L-L) |
CS8365 3P+G 50A | 14.4 kW |
| C3B36RL-YQJE0AT2 | 60A | 48A | 3-Phase Wye (L-L) | 208V Wye 60A IEC 60309 3P+N+G 9Hr | 17.3 kW |
No resources are available for this product at this time.
Request a document below.*
For information regarding orders or shipping, please visit the Ordering Information page.
*Subject to availabilityProduct Specifications
| Specification | Details |
|---|---|
| Rack Units | 0 |
| __promocondition | power |
| __promocondition | pdu |
| Form Factor | 0U |
| Total Number of Outlets | 36 |
| Voltage | 208V |
| Current (Amps) | 50A |
| __Phase | 3-Phase |
| Outlet Type | C13 |
| Outlet Type | C19 |
| Features | High Temperature Rating |
| Features | Locking Outlet |
| __#C3B36RL-DQJE0AT2 Data Sheet | https://www.servertech.com/power-distribution-unit-pdu/basic-pdu/0u-vertical-3A06/c3b36rl-dqje0at2 |
| __#UG - CB Series Basic Cabinet Power Distribution Unit - Installation & Operations Manual | https://cdn10.servertech.com/assets/documents/documents/133/original/301-0301-0370-1_Rev_H_Feb_2019.pdf?1550098250 |
| Current (Amps) | 60A |
| __#C3B36RL 17kw Design Drawing | https://cdn10.servertech.com/assets/documents/documents/854/original/412-1500-060_%283A06%29.pdf |
