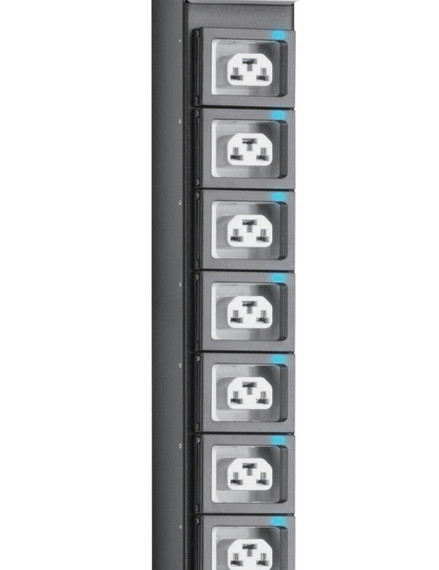

Austin Hughes Basic Series 208V Combo X19
208V - Combo C13/C19 (slide lock) - Basic PDU
Product Code:
Basic Series 208V Combo X19
MSRP:
$327.00
$283.00
(You save
$44.00
)
InfraPower 208V - combo C13/C19 (slide lock) - Basic PDU:
Current: 20A or 30A
Voltage: 208V Single-Phase
Input Plug: L6-20P or L6-30P plug
Input Cord: 10ft UL SJT 12 AWG cordset
Outlets: C13/C19 Combo Slide-locking Outlets (X19)
Circuit Breakers: (1 or 2) 1-pole MCB
Mounting: 0U Vertical
The InfraPower Basic Series 208V Combo X19 Rack PDU is single-phase PDU designed for cost efficient, reliable power distribution for your rack. Multiple outlet configurations are available in horizontal or vertical form factors. Now with the innovative slide-locking outlets.
Infrapower Basic 208V X19 PDU Specifications:
| ELECTRICAL | |
| Voltage | 208V Single-Phase |
| Rated Amperage | 20 or 30 amp |
| Outlets | Locking Combo C13/C19 (X19) |
| Circuit Protection | 1 or 2 Hydraulic MCBs Single Circuit (20A): 16Amax Circuit A & B (30A) : 12Amax |
| Inlet | NEMA L6-20P or L6-30P 10ft cordset3W 10AWG UL SJT |
| PHYSICAL | |
| Product | 2.2W x 2.2D x 31.5-65.4 H (inch) |
| Package | 4.3W x 2.2D x 43.0-80.4 H (inch) |
| Gross Weight | 11-18 (lbs) |
| Net Weight | 9-15 (lbs) |
| ENVIRONMENTAL | |
| Operating Temperature | -5 to 60° (23 to 140°) |
| Storage Temperature | -25 to 65° (-25 to 149°) |
| Operating Humidity | 0 to 95%, non-condensing |
| Operational Altitude | 0 to 2,000 m |
| Storage Altitude | 0 to 15,000 m |
| COMPLIANCE | |
| EMC Certificates | FCC : FCC 47 CFR Part 15 Subpart B, ICES-003 Issue 7 |
| Safety Certificates | CB : IEC 62368-1:2014 UL-US : UL 62368-1, 2nd Ed. UL-CA : CSAC22.2 No. 62368-1-14, 2nd Ed. |
| Environment | RoHS, Reach & WEEE |
| MPN | Amps | Outlets | Input Plug | Circuit Protection |
| V8X19-20A/CR_L620/3B-1 | 20 | 8 x X19 | L6-20P | 1 x MCB 16A max |
| V8X19-30A/CR_L630/3B-1 | 30 | 8 x X19 | L6-30P | 2 x MCB 12A max per Circuit |
| V12X19-20A/CR_L620/3B-1 | 20 | 12 x X19 | L6-20P | 1 x MCB 16A max |
| V12X19-30A/CR_L630/3B-1 | 30 | 12 x X19 | L6-30P | 2 x MCB 12A max per Circuit |
| V16X19-20A/CR_L620/3B-1 | 20 | 16 x X19 | L6-20P | 1 x MCB 16A max |
| V16X19-30A/CR_L630/3B-1 | 30 | 16 x X19 | L6-30P | 2 x MCB 12A max per Circuit |
| V20X19-20A/CR_L620/3B-1 | 20 | 20 x X19 | L6-20P | 1 x MCB 16A max |
| V20X19-30A/CR_L630/3B-1 | 30 | 20 x X19 | L6-30P | 2 x MCB 12A max per Circuit |
| V24X19-20A/CR_L620/3B-1 | 20 | 24 x X19 | L6-20P | 1 x MCB 16A max |
| V24X19-30A/CR_L630/3B-1 | 30 | 24 x X19 | L6-30P | 2 x MCB 12A max per Circuit |
| V30X19-20A/CR_L620/3B-1 | 20 | 30 x X19 | L6-20P | 1 x MCB 16A max |
| V30X19-30A/CR_L630/3B-1 | 30 | 30 x X19 | L6-30P | 2 x MCB 12A max per Circuit |
| V36X19-20A/CR_L620/3B-1 | 20 | 36 x X19 | L6-20P | 1 x MCB 16A max |
| V36X19-30A/CR_L630/3B-1 | 30 | 36 x X19 | L6-30P | 2 x MCB 12A max per Circuit |
