NetShelter SX 52U Advanced Rack for AI - 51" Deep

Taller, deeper, stronger racks designed for AI workloads and ready for rack, stack, and ship. NetShelter SX Advanced offers: Uncompromised shipping protection designed to safely load, transport, unload, and deploy a rack with IT equipment pre-installed.

• Designed to accommodate super long AI servers and liquid cooling components

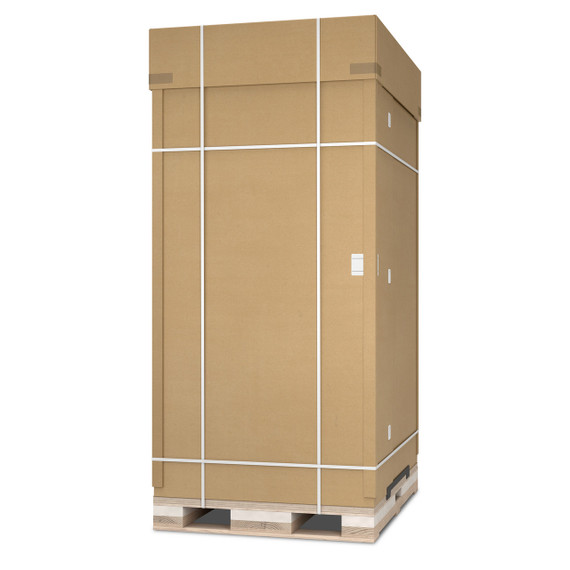

• Uncompromising protection with Shock packaging and 3500lb Shipping load rating
• Higher weight loading capacity - Static Load: 4200lb; Dynamic Load: 3500lb
• Better Air flow to cool down the increased heat with high power load servers
• Extensive list of compatible products and accessories

The APC AR9558SPB2 and AR9588SPB2 NetShelter SX advanced high-strength Racks are tailor-made for high-density AI infrastructure including liquid cooling components. The APC AR9558SPB2 and AR9588SPB2 maximize space with a 52U height, a 1295mm (50.98") depth, and either 750MM (29.5") or 800mm (31.5") widths and offer guaranteed compatibility with any EIA-310-E compliant IT equipment. These racks are ISTA-3E tested and designed to safely load, transport, unload and deploy a cabinet with up to 1587 kg (3500 lbs) of IT equipment installed.

With a static load of 4250lb and a dynamic load of 3500lb, the APC AR9558SPB2 and AR9588SPB2 advanced high-strength AI ready server racks offer higher weight loading capacities, ensuring increased revenue within a limited footprint.  This higher weight capacity offers greater safety and reduced risk of downtime and can be used in various applications. These racks are designed to support power loads of 70kW and more.

The APC AR9558SPB2 and AR9588SPB2 NetShelter SX Advanced racks are designed for durability and functionality, meeting the requirements of modern IT environments. Constructed from robust steel, this floor-standing cabinet offers enhanced security and accessibility with its lockable side panel and 3-point locking system. The perforated door allows 80% airflow, and the reversible curved front door adds to its aesthetic while ensuring optimal performance for equipment housed within. The inclusion of leveling feet and casters facilitates mobility and stability, while the multiple cable entry points help maintain organization and cleanliness. This rack complies with UL, RoHS, REACH, and ISTA standards, ensuring a reliable and safe solution for your IT infrastructure.

AR9558SPB2 and AR9588SPB2 NetShelter SX Advanced Specifications

Height: 52U (95.9 in / 2436 mm)
Width: 29.5 in (750 mm) or 31.5" (800 mm)
Depth: 51.0 in (1295 mm)
Net Weight: 672.4 lb(US) (305 kg) or 683.4 lb(US) (310 kg)
Maximum Mounting Depth: 45 in (1143 mm)
Minimum mounting depth: 11.5 in (292 mm)
Rack Width: 19"
EIA Mounting Rails: 12 gauge, 19" EIA, adjust in .5 in. (12.7 mm) increments

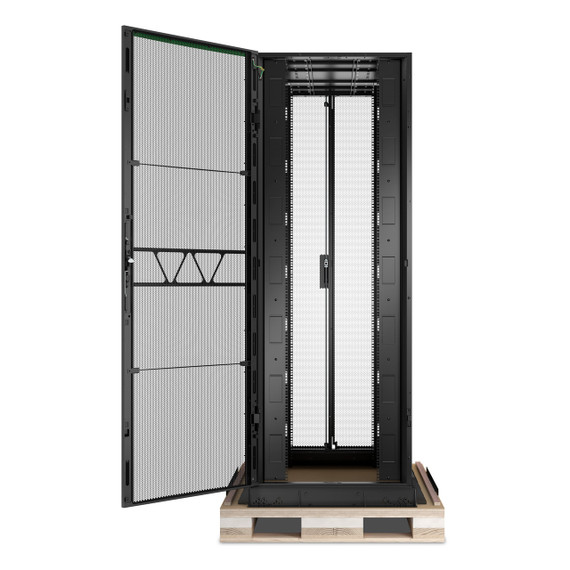

Front Door: 16 gauge, 130˚, reversible, curved front, 80% Perf.
Rear Door: 18 gauge, 130˚, flat front, 80% Perf.
Side Panels: 18 gauge, lift off, Split, lockable
Roof: 18 gauge, 4 extra large cable entry points
Vertical Posts: 16 gauge
Permanent permissible load: 4250 lb(US) (1927.8 kg) static; 3500 lb(US) (1587.6 kg) dynamic; 3500 lb(US) (1587.6 kg) shipping
Standards: UL 2416; EIA-310E; ISTA, RoHS, REACH

Included with the AR9558SPB2 / AR9588SPB2

• Baying hardware
• Key(s)
• Leveling feet
• Mounting Hardware
• Pre-installed casters
• Side Panels
