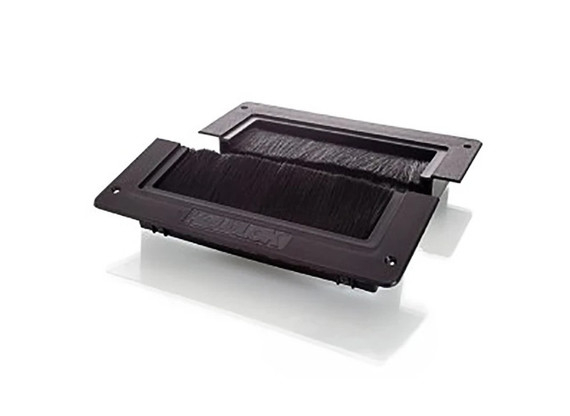

Split Raised Floor Grommet - 10 Pack

The Upsite Technologies 3030-03 KoldLok split Raised Floor Grommet is designed to seal openings in existing raised floor cutouts prior to the installation of communications or power cabling. Based on measurements at multiple data centers, 48% of valuable conditioned air is not reaching the air intake of IT equipment due to unsealed floor openings. This lost air, known as bypass airflow, contributes to IT equipment hot spots, cooling unit inefficiencies, and increasing infrastructure costs. KoldLok 3030 Split Raised Floor grommets specifically address bypass airflow and its detrimental effects on data center cooling. The 3030-03 is formerly the 3030.

Note:This Raised Floor Grommet is sold in a pack of 10.

• A limited quantity of single units are available.
• Quantity discounts available for orders of 12+.
  - Please contact us to discuss large quantity purchases.

Benefits of KoldLok 3030-03 Raised Floor Grommets

• Increases existing cooling unit capacity
• Reduces the need to purchase additional cooling units
• Improves equipment reliability and extends equipment life
• Increases static pressure under the raised floor and improves cool air delivery through perforated tiles and floor grates
• Facilitates Cold Aisle/Hot Aisle best practices

KoldLok 3030-03 Features:

• Integrate with the raised floor static dissipation system, providing 1 GigaOhm of resistance.
• Contain no loose or partially fastened parts, which can become separated or fall through the raised floor.
• Impact resistant and durable.
• Satisfy NFPA 75 Section 5-4.4 requirement by self dressing the raw metal edges of raised-floor tile cable cutouts.
• KoldLok products are compliant with Directive 2002/95/EC of the European Parliament and the Council on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).
• Effective bypass-airflow sealing in areas undisturbed by cable penetrations at static pressures up to 0.10 inches of water column
• Effective bypass-airflow sealing with four, half inch cables penetrating the Grommet at a static pressure of 0.10 inches of water column

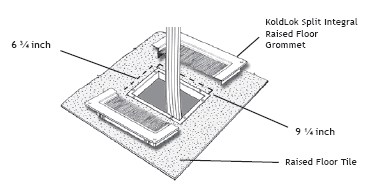

Upsite KoldLok Split Integral Raised Floor Grommet Diagram

Upsite 3030 Specifications:

• Overall size (HxWxD): 1.625 x 11 x 8.25 in (41 x 279 x 210 mm)
• Product Height Above Raised Floor: 0.125 in (3 mm.)
• Usable Cable Area: 8 x 4 in. (203 x 102 mm.)
• Grommet Frame: The frame is molded from durable polypropylene.
• Finish: Black
• Floor Mounting System: Four (4) self-drilling screws are provided for installation

Tile Cutting Requirements:
