Surface Mount Raised Floor Grommet - 10 Pack

The Upsite Technologies 2020-02 KoldLok Surface Mount Raised Floor Grommet is designed to seal a variety of existing raised floor tile cutouts and allow flexibility of removing tiles without capturing cables. Based on measurements at multiple data centers, 48% of valuable conditioned air is not reaching the air intake of IT equipment due to unsealed floor openings. This lost air, known as bypass airflow, contributes to IT equipment hotspots, cooling unit inefficiencies, and increasing infrastructure costs. KoldLok Surface Mount Raised Floor Grommets specifically address bypass airflow and its detrimental effects on data center cooling. The 2020-02 is formerly the 2020.

Note: The 2020-02 Raised Floor Grommet is sold in a pack of 10.

• A limited quantity of single units are available.
• Quantity discounts available for orders of 12+.
  - Please contact us to discuss large quantity purchases.

Benefits of The 2020-02 KoldLok Raised Floor Grommet

• Increases existing cooling unit capacity
• Reduces the need to purchase additional cooling units
• Improves equipment reliability and extends equipment life
• Increases static pressure under the raised floor and improves cool air delivery through perforated tiles and floor grates
• Facilitates Cold Aisle/Hot Aisle best practices

KoldLok 2020 Features:

• The Surface Mount Grommets facilitate re-cabling and allows tiles to be moved without capturing cables.
• Integrate with the raised floor static dissipation system, providing 1 GigaOhm of resistance.
• Contain no loose or partially fastened parts, which can become separated or fall through the raised floor.
• Impact resistant and durable.
• KoldLok products are compliant with Directive 2002/95/EC of the European Parliament and the Council on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).
• 100% bypass-airflow sealing in areas undisturbed by cable penetrations at static pressures up to 0.10 inches of water column
• 100% bypass-airflow sealing with four ½ inch cables penetrating the Grommet at the static pressure required to cool up to 3 kW/cabinet
• 96% bypass-airflow sealing with four ½ inch cables penetrating the Grommet at a static pressure of 0.10 inches of water column

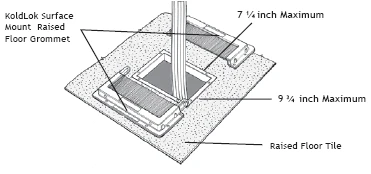

Upsite KoldLok 2020-02 Surface Mount Raised Floor Grommet Diagram

KoldLok 2020 Specifications:

• Overall size (HxWxD): 1.125 x 11 x 8.25 in (29 x 279 x 210 mm)
• Product Height Above Raised Floor: 1.125 in (29 mm.) with mounting system installed
• Maximum Cutout Size Sealed: 10 x 7.25 in. (254 x 184 mm.)
• Usable Cable Area: 8.25 x 4 in. (210 x 102 mm.)
• Grommet Frame: The frame is molded from durable polypropylene. The frame consists of two, interlocking halves.
• Finish: Black
• Floor Mounting System: Custom adhesive mounting kit consisting of:
  • Single-sided, pressure sensitive foam with adhesive backing
  • Double-sided, pressure sensitive foam with adhesive backing
  • Polyethylene foam buttons for static dissipation
  • All foam components are non-particulating
