Austin Hughes M Series 110V US
110V - US Monitored M Series PDU
Product Code:
M Series 110V US
MSRP:
$745.76
$645.00
(You save
$100.76
)
InfraPower 110V NEMA 5-20R Branch Monitored PDU:
Current: 15A, 20A, or 30A
Voltage: 110V Single-Phase
Input Plug: 5-15P,5-20P, L5-20P, 5-30P, L5-30P
Input Cord: 10ft UL SJT 14AWG (15A), 12AWG (20A), or 10 (30A) AWG cordset
Outlets: NEMA 5-20R
Circuit Breakers: (1 or 2) Hydraulic MCB
Mounting: 0U Vertical
The InfraPower M series 110V NEMA 5-20R Branch Monitored PDU is a single-phase PDU designed for cost efficient, reliable power distribution for your rack with outlet level monitoring. Includes strip power, circuit power, and circuit breaker monitoring. IP connection available for remote monitoring when connected to a Z series PDU or IP dongle.
InfraPower Monitored 110V NEMA PDU Specifications:
| ELECTRICAL | |
| Voltage | 110V Single-Phase |
| Rated Amperage | 15, 20, or 30 amp |
| Outlets | NEMA 5-20R |
| Circuit Protection | 1 or 2 Hydraulic MCBs Single Circuit (15A): 12Amax Single Circuit (20A): 16Amax Circuit A & B (30A) : 12Amax ea. |
| Inlet | NEMA 5-15P,5-20P, L5-20P, 5-30P, L5-30P 10ft cordset 3W 14AWG, 12AWG, or 10AWG UL SJT |
| METER FEATURES | |
| Local Display | Field replaceable 2.8" color LCD with touchscreen |
| Bank Measurement | Current (A), Energy (kWh), Voltage (V) & Power factor |
| Outlet Measurement | None |
| Accuracy | +/- 1% Billing-grade |

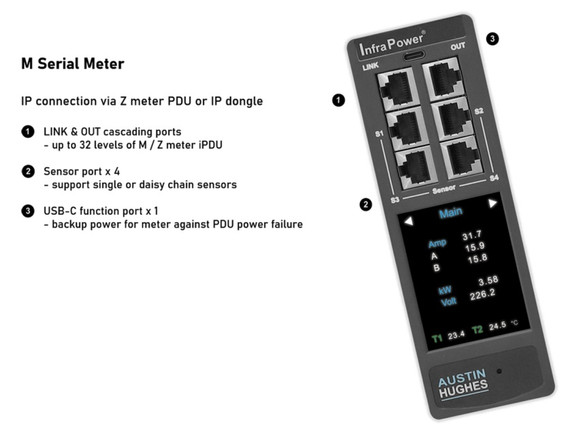

| IP Connection | via Z series PDU or IP dongle |
| Cascade | Up to 32 PDUs under single IP |
| USB-C Function Port x 1 | Supports Wi-Fi, Firmware updates, Backup power for meter |
| Sensor Port | Temp., Temp. + Humid., Door, Smoke, water (supports daisy chain sensors up to 4) |
| Product | 2.2W x 2.7D x 41.3 - 51.2 H (inch) |
| Package | 4.3W x 10.6D x 54.8 - 70.1 H (inch) |
| Gross Weight | 15 (lbs) |
| Net Weight | 12.7 (lbs) |
| ENVIRONMENTAL | |
| Operating Temperature | -5 to 60° (23 to 140°) |
| Storage Temperature | -25 to 65° (-25 to 149°) |
| Operating Humidity | 8 to 95%, non-condensing |
| Operational Altitude | 0 to 2,000 m |
| Storage Altitude | 0 to 15,000 m |
| COMPLIANCE | |
| EMC Certificates | FCC : FCC 47 CFR Part 15 Subpart B |
| Safety Certificates | CB : IEC 62368-1:2018 UL-US : UL 62368-1, 3rd Ed, 2021-10-22 UL-CA : CAN/ CSA C22.2 No. 62368-1:19, 3rd Ed, 2021-10-22 |
| Environment | RoHS, Reach & WEEE |
| MPN | Amps | Outlets | Input Plug | Circuit Protection |
| V8US-15A-M/CR_515/3B-1 | 15 | 8 x NEMA 5-20R | 5-15P | 1 x MCB 12A max |
| V8US-20A-M/CR_520/3B-1 | 20 | 8 x NEMA 5-20R | 5-20P | 1 x MCB 16A max |
| V8US-20A-M/CR_L520/3B-1 | 20 | 8 x NEMA 5-20R | L5-20P | 1 x MCB 16A max |
| V8US-30A-M/CR_530/3B-1 | 30 | 8 x NEMA 5-20R | 5-30P | 2 x MCB 12A max per Circuit |
| V8US-30A-M/CR_L530/3B-1 | 30 | 8 x NEMA 5-20R | L5-30P | 2 x MCB 12A max per Circuit |
| V12US-15A-M/CR_515/3B-1 | 15 | 12 x NEMA 5-20R | 5-15P | 1 x MCB 12A max |
| V12US-20A-M/CR_520/3B-1 | 20 | 12 x NEMA 5-20R | 5-20P | 1 x MCB 16A max |
| V12US-20A-M/CR_L520/3B-1 | 20 | 12 x NEMA 5-20R | L5-20P | 1 x MCB 16A max |
| V12US-30A-M/CR_530/3B-1 | 30 | 12 x NEMA 5-20R | 5-30P | 2 x MCB 12A max per Circuit |
| V12US-30A-M/CR_L530/3B-1 | 30 | 12 x NEMA 5-20R | L5-30P | 2 x MCB 12A max per Circuit |
| V16US-15A-M/CR_515/3B-1 | 15 | 16 x NEMA 5-20R | 5-15P | 1 x MCB 12A max |
| V16US-20A-M/CR_520/3B-1 | 20 | 16 x NEMA 5-20R | 5-20P | 1 x MCB 16A max |
| V16US-20A-M/CR_L520/3B-1 | 20 | 16 x NEMA 5-20R | L5-20P | 1 x MCB 16A max |
| V16US-30A-M/CR_530/3B-1 | 30 | 16 x NEMA 5-20R | 5-30P | 2 x MCB 12A max per Circuit |
| V16US-30A-M/CR_L530/3B-1 | 30 | 16 x NEMA 5-20R | L5-30P | 2 x MCB 12A max per Circuit |
| V20US-15A-M/CR_515/3B-1 | 15 | 20 x NEMA 5-20R | 5-15P | 1 x MCB 12A max |
| V20US-20A-M/CR_520/3B-1 | 20 | 20 x NEMA 5-20R | 5-20P | 1 x MCB 16A max |
| V20US-20A-M/CR_L520/3B-1 | 20 | 20 x NEMA 5-20R | L5-20P | 1 x MCB 16A max |
| V20US-30A-M/CR_530/3B-1 | 30 | 20 x NEMA 5-20R | 5-30P | 2 x MCB 12A max per Circuit |
| V20US-30A-M/CR_L530/3B-1 | 30 | 20 x NEMA 5-20R | L5-30P | 2 x MCB 12A max per Circuit |
| V24US-15A-M/CR_515/3B-1 | 15 | 24 x NEMA 5-20R | 5-15P | 1 x MCB 12A max |
| V24US-20A-M/CR_520/3B-1 | 20 | 24 x NEMA 5-20R | 5-20P | 1 x MCB 16A max |
| V24US-20A-M/CR_L520/3B-1 | 20 | 24 x NEMA 5-20R | L5-20P | 1 x MCB 16A max |
| V24US-30A-M/CR_530/3B-1 | 30 | 24 x NEMA 5-20R | 5-30P | 2 x MCB 12A max per Circuit |
| V24US-30A-M/CR_L530/3B-1 | 30 | 24 x NEMA 5-20R | L5-30P | 2 x MCB 12A max per Circuit |
