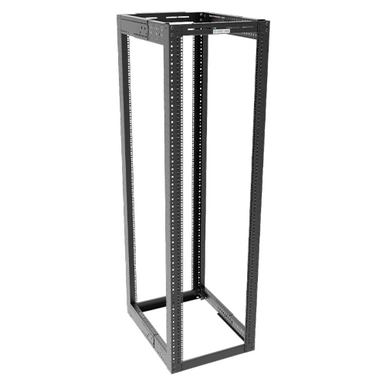

Great Lakes VRX Series

Great Lakes VRX Series Rack – Precision Cable Management with Flexible Depth Adjustment

The VRX Series Rack from Great Lakes is engineered for adaptable, high-density cable and equipment installations. Designed with a flexible architecture and industry-standard mounting support, the VRX rack delivers robust performance for network, telecom, and structured cabling applications.

Built for universal deployment, the VRX offers adjustable depth, seamless overhead cable integration, and a wide array of mounting options, making it ideal for evolving IT environments where organization, scalability, and reliability are critical.

Key Features & Benefits

Flexible Mounting Options

• Accommodates both 19" and 23" equipment with your choice of:

  • #12-24 tapped rails or

  • 3/8" square (M6) channels

• Pre-marked RMU labeling ensures accurate equipment placement and inventory.

Adjustable Variable Depth

• Side rails are adjustable in 1" increments, allowing you to configure rack depth anywhere from 24" to 36", based on your project needs​.

Comprehensive Cable Management

• Front and rear Flexible Mounting Profile (FMP) patterns support fingers and accessories without using rack units.

• Square hole patterns along all faces enable fast installation of ¼-turn D-rings—for either vertical or horizontal routing.

• Includes optional accessories like PDU/cable management bars, finger ducts, and ladder rack brackets for overhead mounting.

Strong, Self-Squaring Frame

• Rack assembly is self-squaring with an adjustable toe-in or toe-out footprint to suit varying footprint and stability needs.

• Supports up to 2,500 lbs. of static load capacity, ensuring long-term strength and dependability in high-density deployments​.

Overhead Integration Ready

• Built-in top mounting pattern lets cable runways or ladder racks rest directly on top of the frame, or connect using optional brackets for elevated overhead cable support​.

Standards & Compliance

• UL2416 certified for equipment safety

• RoHS II compliant for environmental responsibility

Popular Accessories (Optional)

• ESC-K12-7: Finger sections (7" x 7 RMU), set of 12

• CM-11, CM-25, CM-26: D-Ring kits in various sizes

• PDU2: Dual-position PDU mounting brackets

• VPCB1: Single-position PDU/cable bar

• Vertical Cable Managers: Front-only and front/rear options available​

The Great Lakes VRX Series Rack is built for adaptability and structured efficiency, offering the ideal solution for integrators and IT teams looking to simplify installations while planning for future growth.
