Server Technology
PRO2 Smart PDU 22.0kW, 230/400V 3-Phase Wye, 32A, 24 x C13 & 12 C19 outlets
$2,424.00
Zoom the image with the mouse
Server Technology

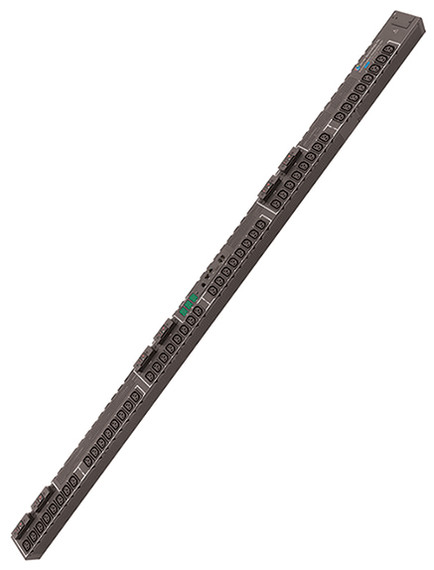

Switched PDU 22.0kW, 230/400V 3-Phase Wye, 32A, 48 x C13 outlets
Product Code:
STV-4303K
Condition:
New
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
- Voltage: 400V 3-Ph Wye
- Amperage: 32A
- Input: IEC 60309 3P+N+PE 6Hr
- Output: (48) C13
- Form Factor: 0U Vertical
The Server Technology® STV-4303K (Master) Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® (Per Inlet Power Sensing) technology provides accurate measurement of current (billing-grade), voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP.
- Input Capacity - 22kW
- Input Voltage - 400V
- Input Cord - 230/400V Wye 32A IEC 60309 3P+N+PE 6Hr
- Input Phase - 3-Phase Wye (L-N)
- Input Current - 32A
- Output - (48) x IEC 60320/C13; Global Rating: ≤ 10A @230V L-N
- Max Operating Temperature - 50 °C
- Voltage: 400V 3-Ph Wye
- Amperage: 32A
- Input: IEC 60309 3P+N+PE 6Hr
- Output: (48) C13
- Form Factor: 0U Vertical
The Server Technology® STV-4303K (Master) Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® (Per Inlet Power Sensing) technology provides accurate measurement of current (billing-grade), voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP.
- Input Capacity - 22kW
- Input Voltage - 400V
- Input Cord - 230/400V Wye 32A IEC 60309 3P+N+PE 6Hr
- Input Phase - 3-Phase Wye (L-N)
- Input Current - 32A
- Output - (48) x IEC 60320/C13; Global Rating: ≤ 10A @230V L-N
- Max Operating Temperature - 50 °C
