- Voltage: 208V 1-Ph
- Amperage: 20A
- Input: NEMA L6-20P
- Output: (24) C13 + (6) C19
- Form Factor: 0U Vertical

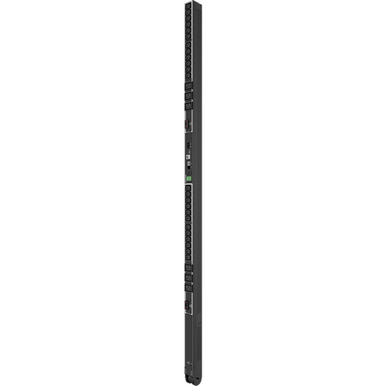

Server Technology STV-3531B: Smart PRO1, PIPS (Per Input Power Sensing), 0U, (24) IEC C13 + (6) IEC C19 Outlets, (1) LED Current Meter w/ Auto-flip, 208-240V 20A, NEMA L6-20P Plug, 9 ft (2.74m) Cord w/ Power Pivot Cord Entry, Middle Display/Network, (2) Temperature/Humidity Sensor Capable, Circuit Breakers
| Input Power Capacity (kW): | 3.3 |
| Input Plug Type: | NEMA L6-20P |
| Input Current (A): | 20 |
| Input Current Rated (A): | 16 |
| Input Nominal Voltage (V): | 208 |
| Input Phase: | 1-Phase (L-L) |
| Input Cord Location: | Bottom/Pivot |
| Outlet Form Factor: | Conventional |
| Total Outlets: | 30 |
| IEC C13 Count: | 24 |
| IEC C19 Count: | 6 |
| Utility Outlet: | 0 |
arrow_drop_downSee More Specifications
Standard Stocked: Stocked model, typically ships 7-10 business days from receipt of order.
