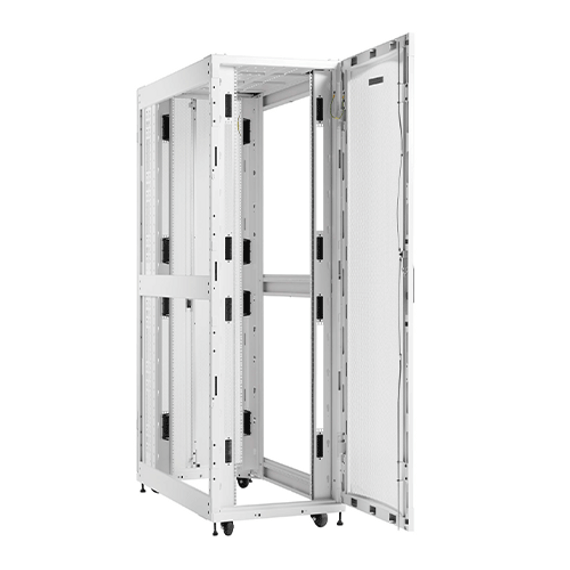

The Eaton SRH482446W SmartRack® Cabinet is purpose-built for housing heavy-duty, high-performance servers—particularly those used in AI, edge computing, and enterprise environments where space, cooling, and weight handling are critical. Designed with extended 46" depth and ultra-durable steel construction, this 48U enclosure is ideal for mission-critical IT deployments that demand superior structural integrity, secure accessibility, and optimized airflow.
Built from 2.5mm thick steel with reinforced welds, gussets, and structural bracing, this rack cabinet supports up to 5,000 lb. stationary or 3,500 lb. rolling load capacity—perfect for large AI servers and deep UPS systems. The extended 46-inch depth provides flexibility for larger hardware footprints not suited for standard racks.
Featuring a reversible locking front door, split locking rear doors, and removable locking side panels, the SRH482446W keeps valuable IT assets secure and easily accessible. Quick-release hardware ensures effortless access during maintenance or installation. The top panel includes pass-throughs for routing vertical PDUs and cabling with minimal airflow disruption.
The cabinet’s white powder-coated finish, both inside and out, improves visibility in high-density environments, making port identification and cable management faster and easier. This helps reduce human error and simplifies troubleshooting and maintenance.
Arriving fully assembled, the SRH482446W includes pre-installed casters and adjustable levelers for easy placement and leveling. Integrated baying brackets allow seamless alignment with adjacent racks, while toolless mounting rails support vertical PDUs and cable managers for scalable, clean installation.
This rack enclosure meets stringent PCI DSS physical security standards, making it an ideal solution for businesses that process or store payment data. It is backed by UL 2416 and UL 62368-1 certifications and a robust 5-year limited warranty.
48U height, 46" deep enclosure for oversized AI and enterprise-grade servers
5,000 lb. stationary / 3,500 lb. rolling weight capacity
White finish improves internal visibility for faster maintenance
Locking front, rear, and side panels for enhanced physical security
Pre-installed casters and leveling feet for easy positioning
Toolless mounting for PDUs and vertical cable organizers
Meets PCI DSS, RoHS, CE, and EIA/ECA-310-E compliance standards
| Attribute | Value |
|---|---|
| Model | SRH482446W |
| Height (Rack Units) | 48U |
| External Dimensions (HxWxD) | 90.007" x 23.622" x 49.238" |
| Internal Depth | 46 inches (1168 mm) |
| Color | White |
| Material | Heavy-duty 2.5mm steel |
| Weight (Unloaded) | 557 lbs (252.65 kg) |
| Rolling Load Capacity | 3,500 lbs (1,588 kg) |
| Stationary Load Capacity | 5,000 lbs (2,268 kg) |
| Mounting Rails | 4 vertical rails |
| Cable Management | Top pass-throughs; no built-in managers |
| Casters/Levelers | Pre-installed |
| Security Features | Locking front/rear/side panels with keys |
| Certifications | UL 2416, UL 62368-1, CE, RoHS, UKCA |
| PCI DSS Compliant | Yes |
| Shipping Form | Fully assembled |
1 x Eaton SRH482446W 48U Cabinet
4 x Locking Side Panels
8 x Panel Locks
2 x Keys
60 x M6 Mounting Screws
60 x Nylon Cup Washers
60 x M6 Cage Nuts
Owner’s Manual
