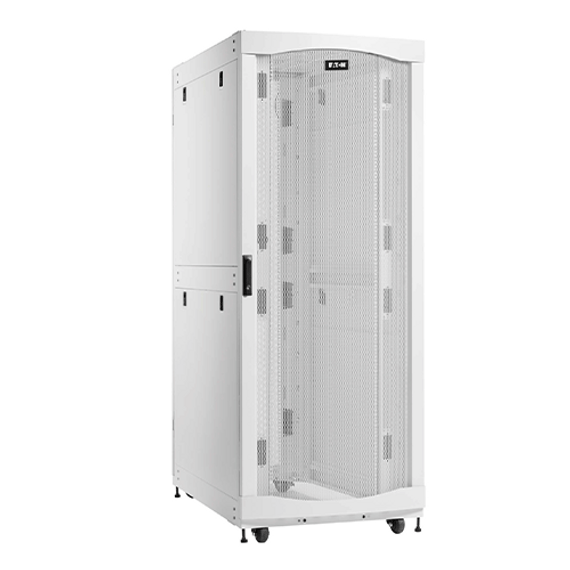

The Eaton SRH423242W SmartRack® 42U rack enclosure is purpose-built for heavy-duty applications, providing maximum strength, improved airflow, and enhanced security for housing AI servers and other mission-critical IT equipment. Designed with reinforced 2.5 mm steel construction, extra welds, gussets, and upgraded casters, this extra-wide cabinet ensures unmatched durability and reliable support for today’s demanding data center environments. Its white powder-coated finish enhances visibility, making installation and maintenance faster and easier in high-density setups.
Heavy-Duty Construction – Built from 2.5 mm thick steel with reinforced elements, providing 5000 lbs (2268 kg) stationary and 3500 lbs (1588 kg) rolling load capacity.

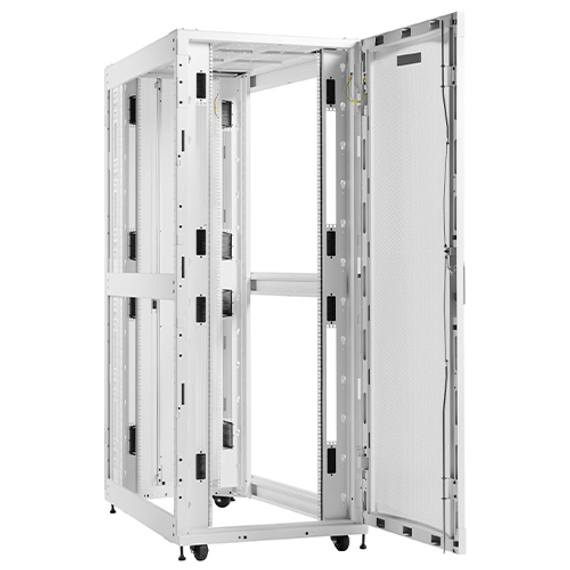

Enhanced Security – Locking reversible front door, split rear doors, and removable side panels protect against tampering and theft.

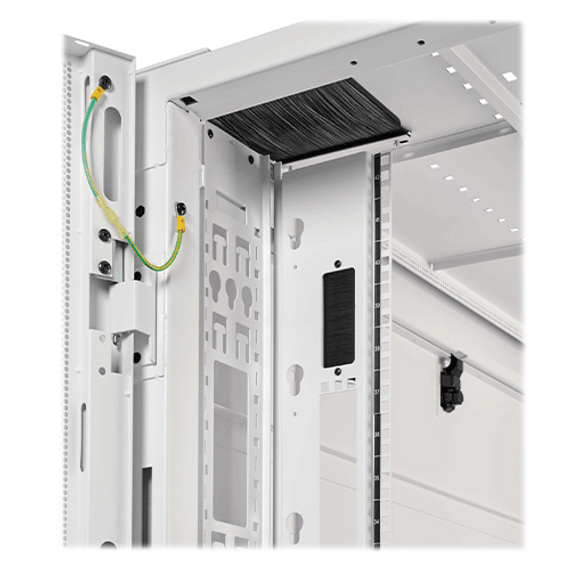

Optimized Cooling & Cable Management – Perforated front/rear doors allow excellent airflow, while 800 mm width provides side channels for accessory mounting and cable routing.
White Finish for Visibility – Easier identification of equipment, ports, and cables, reducing installation and service errors.
Easy Deployment – Ships fully assembled with pre-installed casters and toolless 0U mounting rails for quick setup.
PCI DSS Compliant – Meets Payment Card Industry Data Security Standards for equipment and media protection.
Expandable – Built-in baying brackets allow cabinets to be combined in rows for scalable deployments.
| Category | Details |
|---|---|
| Model Number | SRH423242W |
| UPC Code | 037332290182 |
| Device Compatibility | AI Server (extra deep); Server |
| Rack Type | Enclosure |
| Color | White |
| Material | Steel |
| Rack Height | 42U |
| Rack Depth | Standard |
| Factory Preset Rack Depth | 29.5 in. (74.9 cm / 749 mm) |
| Maximum Device Depth | 41 in. (104.1 cm / 1,041 mm) |
| Minimum Device Depth | 4 in. (10.16 cm / 102 mm) |
| Dimensions (H x W x D) | 79.5 x 31.5 x 44.2 in. (203.2 x 80.0 x 109.2 cm) |
| Unit Weight | 515 lbs (233.6 kg) |
| Load Capacity (Stationary) | 5000 lbs (2268 kg) |
| Load Capacity (Rolling) | 3500 lbs (1588 kg) |
| Vertical Mounting Rails | 4 |
| Shipping Form Factor | Factory Assembled |
| Assembly Required | No |
| Grounding Details | Front and rear door frames |
| Cable Management | No |
| Leveling Feet | Yes |
| Extra Wide | Yes (800 mm / 31.5 in.) |
| Locking Mechanism | Yes – doors and panels with keys |
| Pre-Installed Casters | Yes |
| Outdoor Use | No |
| Certifications | UL 62368-1; UL 2416 |
| Compliance | CE (Europe); EIA/ECA-310-E; RoHS; UKCA |
| Warranty | 5-year limited warranty |
1 × Eaton SRH423242W 42U Rack Enclosure Cabinet
4 × Side Panels
8 × Side Panel Locks
2 × Keys
60 × Phillips-head Mounting Screws (M6 × 5/8 in.)
60 × Nylon Cup Washers
60 × Cage Nuts
Owner’s Manual
No resources are available for this product at this time.
Request a document below.*
For information regarding orders or shipping, please visit the Ordering Information page.
*Subject to availability
