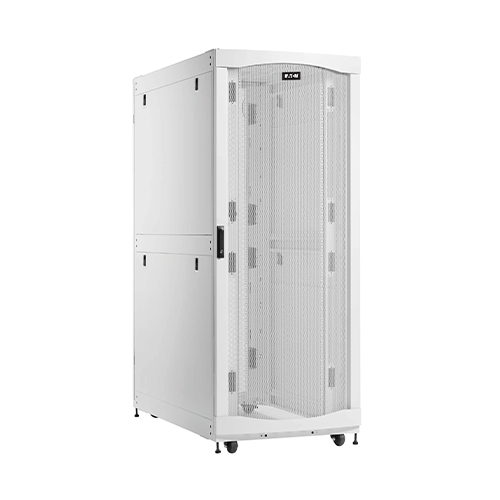

Eaton SRH422454W – SmartRack® 42U Extra-Deep Heavy-Duty Rack Enclosure (White)
The Eaton SRH422454W SmartRack® is a premium 42U extra-deep rack enclosure engineered for AI servers, edge computing, enterprise systems, and other mission-critical IT applications. Built from heavy-duty 2.5 mm steel with reinforced structural elements, upgraded casters, and extra connection points, it supports up to 5000 lb stationary and 3500 lb rolling capacity. Its 54-inch depth accommodates large, heavy servers and advanced cable management setups that won’t fit in standard enclosures. A white powder-coated finish enhances visibility for easier installation and maintenance, while locking front/rear doors and side panels ensure physical security and PCI DSS compliance.
High Strength Construction – Heavy-duty 2.5 mm steel frame with reinforced welds, gussets, and upgraded hardware.
Exceptional Load Capacity – Supports 5000 lb (2268 kg) stationary and 3500 lb (1588 kg) rolling.
Extra-Deep 54" Design – Ideal for oversized AI servers, cable managers, and deep-mount hardware.
Enhanced Security – Lockable reversible front door, split rear doors, and removable side panels with keys.
Improved Visibility – White interior/exterior finish for easier identification of ports and cabling.
Optimized Cooling – Perforated front and rear doors for improved airflow.
Easy Deployment – Ships fully assembled with pre-installed casters, leveling feet, and toolless 0U mounting rails.
Expandable – Integrated baying brackets for multi-cabinet configurations.
PCI DSS Compliant – Meets security standards for companies handling credit card data.
| Category | Details |
|---|---|
| Model | SRH422454W |
| UPC Code | 037332290168 |
| Color | White |
| Material | Steel |
| Rack Height | 42U |
| Rack Depth | Extra Deep |
| Factory Preset Rack Depth | 43 in. (109.2 cm) |
| Maximum Device Depth | 54 in. (137.16 cm) |
| Minimum Device Depth | 4 in. (10.16 cm) |
| Dimensions (H × W × D) | 79.508 × 23.622 × 58.038 in. (203.2 × 60 × 144.78 cm) |
| Unit Weight | 540 lb (244.94 kg) |
| Weight Capacity – Stationary | 5000 lb (2268 kg) |
| Weight Capacity – Rolling | 3500 lb (1588 kg) |
| Vertical Mounting Rails | 4 |
| Assembly Required | No |
| Grounding | Front and rear door frames |
| Cable Management | No built-in cable management |
| Leveling Feet | Yes |
| Locking | Yes |
| Pre-Installed Casters | Yes |
| Outdoor Use | No |
| Certifications | UL 62368-1, UL 2416 |
| Compliance | CE, EIA/ECA-310-E, RoHS, UKCA |
| Warranty | 5-year limited warranty |
SRH422454W 42U Server Rack
(4) Side panels
(8) Side panel locks
(2) Keys
(60) Phillips-head M6 × 5/8 in. screws
(60) Nylon cup washers
(60) Cage nuts
Owner’s manual
