Eaton SRH422442W

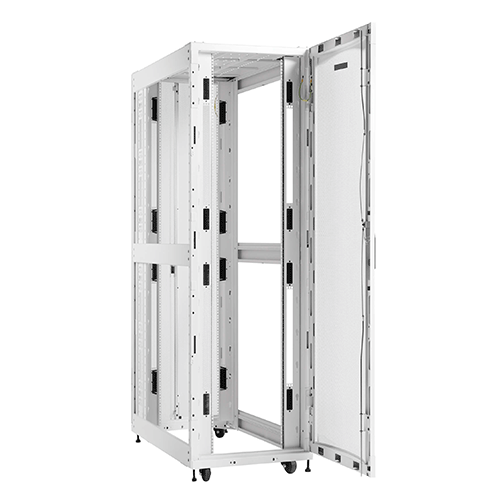

Eaton SmartRack 42U Standard-Depth Standard-Width Heavy-Duty Rack Enclosure Cabinet for AI Servers, White
UPC:
037332290137
MSRP:
$4,753.00
$3,125.00
(You save
$1,628.00
)
Eaton SRH422442W – 42U Standard-Depth Heavy-Duty AI Server Rack (White)
The Eaton SRH422442W SmartRack® 42U Heavy-Duty Enclosure is engineered to support the growing demands of AI servers, edge computing, and enterprise IT applications. Constructed with a 2.5 mm thick reinforced steel frame, this rack delivers superior durability with a maximum stationary load capacity of 5000 lbs. and a rolling capacity of 3500 lbs. Ideal for housing heavy, deep IT equipment, it features enhanced airflow, security, and accessibility in high-density deployments.
Key Features
-
Heavy-Duty Construction – 2.5 mm thick steel frame with extra welds and gussets for exceptional strength
-
High Load Capacity – Supports up to 5000 lbs. stationary and 3500 lbs. rolling
-
Enhanced Security – Locking reversible front door, split rear doors, and removable side panels with keys
-
Optimized Cooling – Perforated front and rear doors promote superior airflow for demanding AI equipment
-
Improved Visibility – White powder-coated finish enhances lighting for easier cable and port identification
-
Ready for Deployment – Ships fully assembled with pre-installed casters and adjustable levelers
-
Toolless Accessory Mounting – Supports 0U PDUs and vertical cable managers without tools
-
PCI DSS Compliant – Meets physical security requirements for data-sensitive environments
Specifications
| Attribute | Details |
|---|---|
| Model | SRH422442W |
| Rack Height | 42U |
| Rack Type | Enclosure |
| Color | White |
| Material | Steel |
| Rack Depth | Standard |
| Factory Preset Rack Depth | 29.5 in. (74.9 cm) |
| Minimum Device Depth | 4 in. (10.16 cm) |
| Maximum Device Depth | 41 in. (104.14 cm) |
| Unit Dimensions (H x W x D) | 79.5 x 23.6 x 44.2 in. (199.4 x 60.0 x 109.2 cm) |
| Unit Weight | 431 lbs. (195.5 kg) |
| Load Capacity (Stationary) | 5000 lbs. (2268 kg) |
| Load Capacity (Rolling) | 3500 lbs. (1588 kg) |
| Number of Rails | 4 Vertical Mounting Rails |
| Casters | Pre-installed |
| Leveling Feet | Yes |
| Grounding Details | Front and rear door frames |
| Cable Management | No (Supports optional accessories) |
| Locking Mechanism | Yes (doors and side panels) |
| Outdoor Use | No |
| Certifications | UL 62368-1, UL 2416 |
| Compliance | CE, EIA/ECA-310-E, RoHS, UKCA |
| Warranty | 5-Year Limited Warranty |
What’s Included
-
(1) SRH422442W 42U Server Rack Enclosure
-
(4) Side Panels
-
(8) Side Panel Locks
-
(2) Keys
-
(60) Phillips-head mounting screws (M6 x 5/8 in.)
-
(60) Nylon Cup Washers
-
(60) Cage Nuts
-
Owner’s Manual
