Austin Hughes
CyberView SK801
Product Code:
sk-801
Condition:
New
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
The SK-801 is a combination keyboard and 3-button trackball mouse with 8-port USB KVM switch. The 104-key SUN compatible keyboard supports the SUN hot keys.Regulatory Approvals: FCC, CE, VCCI
Please note, the CyberView SK801 is discontinued. For replacement or upgrade options, please contact your Server Racks Online sales representative at 1-866-722-5776.

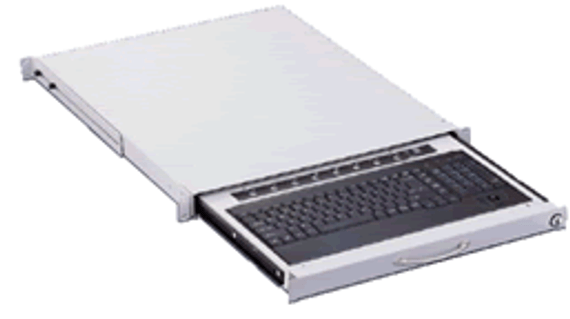

The AH SK-801 is a 1U rackmount keyboard drawer with 8-port USB KVM Switch. The 104-key keyboard is SUN compatible and includes the SUN hot keys (Stop, Cut, Paste, Compose, etc.). The SK-801 comes with the 8 CB-6 KVM cables needed for the KVM switch.
Features:
- 1U, standard 19" rackmount keyboard drawer
- 104-keys SUN-compatible keyboard w/ 3-button trackball supports SUN keys, including Stop, Cut, Paste, Compose, etc.
- KVM switch features:
- 8-port, single console USB KVM switch
- support VGA resolution up to 1920 x 1440
- Direct support SUN Micro native resolution 1152 x 900
- Supplied with 8 x 6ft USB KVM Cable
- Supplied with 12V 5A remote power adapter
- Adjustable mounting brackets compatible with SUN rack depths of 24 to 36 inch
- Lockable drawer to secure the keyboard & mouse
- Slide rails have fixed position to prevent movement of the keyboard
- All mounting hardware included
Specifications:
- Dimensions: 1.75"H x 17.4"W x 21.7"D (19" EIA Rackmountable)
- Weight: 13 lbs.
- Environmental:
- Operating Temperature: 0 to 50 Degree Celsius
- Storage Temperature: -25 to 65 Degree Celsius
- Relative Humidity: 90%, non condensing
- Shock: 50G peak acceleration (11ms, half since wave)
- Vibration: 58~500Hz/ 0.98G (11min/ cycle)
- Form Factor: 1U rack mounting on slide-out rails
- Color: Industrial light gray on keyboard drawer (Black options available)
- Compatibility: Multi-platform -SUN, IBM, HP, DELL and Mix PCs with USB-enable
- Support Platform: Solaris, MS Windows 2000/XP, Linux and SCO Unix
- Server-side Interface: USB Type A for KB/MS
- Rack Mounting: Adjustable ranges from 15.3" to 31.3" (390 to 795mm)
- Keyboard: 104-key USB keyboard with built-in SUN keys (Including stop, cut, paste, compose, copy and help)
- Mouse: 3-button trackball mouse
- Rear I/O Connector:
- KVM Port: 8- port, HD15 female
- KB/MS Emulation: USB 1.1 Compliant, support hot-plugging
- Port Access: Channel button or hot keys selectable
- Indicators: Online (green) and selected (red) status LED
- Server-side Interface: VGA HD15, analog RGB, USB type A, support hot-plugging
- Compatility: Compatible with SUNs, IBMs, HPs, DELLs and
mix PCs with USB-enable - Cascade Expansion: Up to 128 ports/servers
- KVM Cable: CB series USB KVM cable
- Support Platfrom: Solaris, MS Windows 2000/XP and SCO Unix
