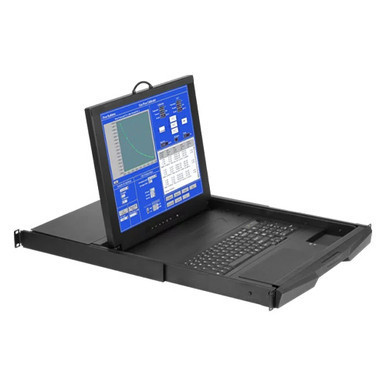

Austin Hughes RKP9

19" LCD (1280 x 1024) 1U Console Drawer with true optical mouse

No reviews yet
Product Code: RKP9
MSRP: $1,323.00
$1,221.00
(You save $102.00 )
Choose Options:

The RKP9 is a 1U 19" LCD keyboard drawer with true optical mouse.

RKP9 Features, & Benefits

  • Multi-user Matrix KVM with either 16 or 32 ports in 1U
  • "One man" installation slides for easy, quick installation
  • 1280 x 1024 native resolution / 16.7M colors
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Secure remote user access across the world wide web
  • 1U rackmount drawer with either 19" LCD
  • Combo interface either PS/2 or USB input to the LCD drawer
  • Multiple keyboard language selections with a true optical mouse
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Enhanced aesthetics with new molded front panel and two point lock

Optional Configurations (Contact us for availability)

  • DC Power: 12, 24, 48, 125 V DC

RKP9 Specifications



Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 27.6 in.
(44 x 442 x 700 mm.)
Console w/ KVM 1.73 x 17.4 x 27.6 in.
(44 x 442 x 700 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.4 x 35.8 in.
(140 x 595 x 910 mm.)
Net Weight
Single Console 33.7 lbs. (15.3 kg)
Console w/ KVM 44.2 lbs. (20.1 kg)
Gross Weight
Single Console 35.9 lbs. (16.3 kg)
Console w/ KVM 48.6 lbs. (22.1 kg)
Mounting Distance
Single Console / Console with KVM 28 ~ 36.2 inch
(710 ~ 920 mm)
Console Ports
Video Input VGA
Video Option DVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video (4-pin) - NTSC & PAL
Composite (BNC) - NTSC & PAL
KB / MS Combo (USB or PS2)
VGA console 6ft cable (CB-6) Drawer end : DB-15 (VGA + USB KB / MS)
Server end : VGA + USB type A
LCD Screen
LCD panel size (diagonal) 19"
Backlight type LED
Native resolution 1280 x 1024
Brightness (cd/m²) 250
Colors 16.7 M
Contrast Ratio (typ) 1000 : 1
Viewing angle (L/R/U/D) 85/85/80/80
Viewing angle (H x V) 170° x 160°
Response time (ms) 5
Dot pitch (mm) 0.294
Display area (mm) 376.32H x 270.33V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
MTBF (hrs) 30,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption (Single Console / with KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C
Storage Temperature -20 to 60°C
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
