Austin Hughes RKP119

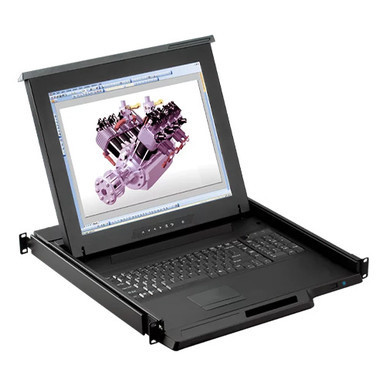

19" LCD (1280 x 1024) 1U Console Drawer

No reviews yet
Product Code: RKP119
MSRP: $1,212.00
$1,118.00
(You save $94.00 )
Choose Options:

The RKP-119 is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

RKP-119 Features:

  • 1U 19" TFT LCD console drawer
  • 1280 x 1024 native resolution / 16.7M colors
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 500mm ( 19.7" )
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access (USB Hub KVM only)
  • 2 post rack mounting available

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • DVI-D / HDMI 1.2 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • S-Video + Composite ( BNC )
  • Audio input & output
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Touchscreen: Capacitive 1-pt / Resistive 1-pt

RKP-119 Specifications



Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 19.7 in.
(44 x 442 x 500 mm.)
Console w/ KVM 1.73 x 17.4 x 24.4 in.
(44 x 442 x 620 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.2 x 31.8 in.
(140 x 595 x 808 mm.)
Net Weight
Single Console 27.9 lbs. (12.7 kg)
Console w/ KVM 30.1 lbs. (13.7 kg)
Gross Weight
Single Console 38.1 lbs. (17.3 kg)
Console w/ KVM 43.3 lbs. (19.7 kg)
Mounting Distance
Single Console 20.1 ~ 29.1 inch
(510 ~ 740 mm)
Console w/ KVM 20.1 ~ 33.1 inch
(510 ~ 840 mm)
Console Ports
Video Input VGA
Video Option DVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video (4-pin) - NTSC & PAL
Composite (BNC) - NTSC & PAL
KB / MS Combo (USB or PS2)
VGA console 6ft cable (CB-6) Drawer end : DB-15 (VGA + USB KB / MS)
Server end : VGA + USB type A
LCD Screen
LCD panel size (diagonal) 19"
Backlight type LED
Native resolution 1280 x 1024
Brightness (cd/m2) 250
Colors 16.7 M
Contrast Ratio (typ) 1000 : 1
Viewing angle (L/R/U/D) 85/85/80/80
Viewing angle (H x V) 170° x 160°
Response time (ms) 5
Dot pitch (mm) 0.294
Display area (mm) 376.32H x 270.33V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
MTBF (hrs) 30,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C
Storage Temperature -20 to 60°C
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC, CE & CCC certified
Safety c UL us, CE / LVD & CCC certified
Environment RoHS2 & REACH compliant
