Austin Hughes RKP117

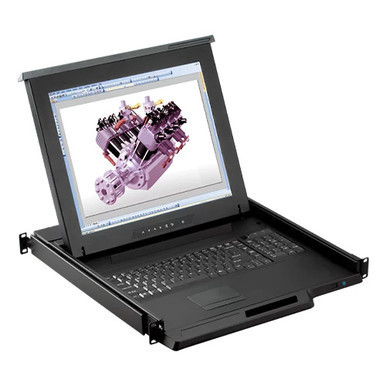

17" LCD (1280 x 1024) 1U Console Drawer, Short depth

No reviews yet
Product Code: RKP117
MSRP: $1,100.00
$1,015.00
(You save $85.00 )
Choose Options:

17" 1U Short depth Rackmount TFT LCD Monitor Keyboard Drawer. RKP Series is a combination of keyboard, mouse and monitor into a drawer, with features such as flip-up design, adjustable brackets, built-in LCD OSD to provide effective assistance for an administrator to control multiple PCs.

RKP-117 Features

  • Unique mechanical design to maximize rack mountable space.
  • Short depth design of 460mm ( 18.1" )
  • Black anodized aluminium front panel
  • Notebook keyboard with touchpad or trackball supporting multiple languages.
  • Built-in on screen display controlled by integral membrane switches
  • Lock out rails to prevent movement of the keyboard
  • Front USB port for device access (USB Hub KVM only)
  • 1280 x 1024 native resolution / 16.7M colors
  • Rear rackmount bracket included.

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • DVI-D / HDMI 1.2 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • S-Video + Composite ( BNC )
  • Audio input & output
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Touchscreen: Capacitive 1-pt / Resistive 1-pt

RKP-117 Specifications



Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net Weight
Single Console 31.9 lbs. (14.5 kg)
Console w/ KVM 34.1 lbs. (15.5 kg)
Gross Weight
Single Console 48.4 lbs. (22 kg)
Console w/ KVM 51.5 lbs. (23.4 kg)
Mounting Distance
Single Console / with KVM 26 ~ 34.3 inch
(660 ~ 870 mm)
Console Ports
Video Input VGA
Video Option DVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video (4-pin) - NTSC & PAL
Composite (BNC) - NTSC & PAL
KB / MS Combo (USB or PS2)
VGA console 6ft cable (CB-6) Drawer end: DB-15 (VGA + USB KB / MS)
Server end: VGA + USB type A
LCD Screen
LCD panel size (diagonal) 20.1"
Backlight type CCFL
Native resolution 1600 x 1200
Brightness (cd/m2) 300
Colors 16.7 M
Contrast Ratio (typ) 800:1
Viewing angle (L/R/U/D) 89/89/89/89
Viewing angle (H x V) 160° x 160°
Response time (ms) 16
Dot pitch (mm) 0.255
Display area (mm) 408H x 306V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 45,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50/60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 48W / Max. 78W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C
Storage Temperature -20 to 60°C
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
