Raloy RD119-CATx-Single-User
Dual Slide 19" Console Drawer with CATx KVM
Product Code:
RD119-CATx-Single-User
$2,053.00
$1,895.00
(You save
$158.00
)

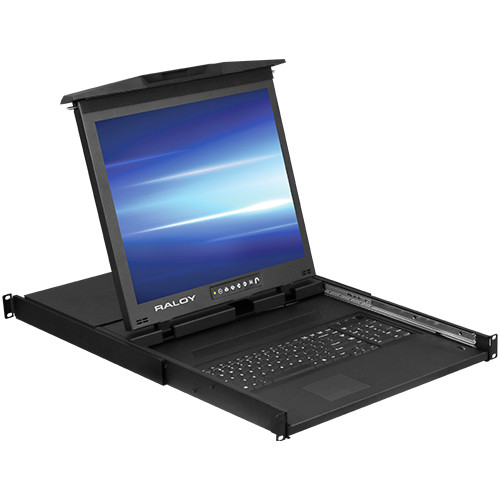

The Raloy RD119-CATx-Single-User dual slide rack console features a 19" LCD, full 104 key keyboard with touchpad and integrated CATx KVM switch. The monitor and keyboard both slide on independent rails to allow the monitor to stay up while the keyboard is stored. The RD119-CATx-Single-User offers a space saving, streamlined approach to your rack environment by integrating your monitor, keyboard, mouse and single-user KVM switch in a single unit.
Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the monitor and built-in keyboard and mouse. To conserve valuable rack space, independent rails to allow the monitor to stay up while the keyboard is stored, or close the cover and slide the console module back out of the way when finished.
KVM Port Configuration - 32-port Over-IP model shown
RD119-CATx-Multi-User Specifications:
|
Server Interface
|
VGA - USB (RDG-100S)
VGA - PS2 (RDG-100) DVI - USB (RDG-100SD) HDMI - USB (RDG-100H) DisplayPort - USB (RDG-100P) |
|
Display
|
19" TFT LCD (1280x1024)
|
|
Console Mouse Options
|
Touchpad
|
|
Console Keyboard
|
104 key, available in 13 languages
|
|
Dimensions (H x W x D)
|
1U x 17.4 x 25.6 in. (44 x 442 x 650 mm.)
|
|
Package Contains
|
1 x RD119 Rack Console w/ Integrated KVM
1 x Rack Mount Kit with screws 1 x Power Cord 1 x Quick Installation Guide |
|
Warranty
|
24 Months Parts & Labor
|
RD119-CATx-Single-User Part Matrix:
| Concurrent Users | Local | IP | 8-Port | 16-Port | 32-Port |
| 1 | 1 | 0 | RD119-CATx10008e | RD119-CATx10016e | RD119-CATx10032e |
| 1 | 1 | 1 | RD119-CATx10108e | RD119-CATx10116e | RD119-CATx10132e |
The Raloy RD119-CATx-Single-User dual slide rack console features a 19" LCD, full 104 key keyboard with touchpad and integrated CATx KVM switch. The monitor and keyboard both slide on independent rails to allow the monitor to stay up while the keyboard is stored. The RD119-CATx-Single-User offers a space saving, streamlined approach to your rack environment by integrating your monitor, keyboard, mouse and single-user KVM switch in a single unit.
Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the monitor and built-in keyboard and mouse. To conserve valuable rack space, independent rails to allow the monitor to stay up while the keyboard is stored, or close the cover and slide the console module back out of the way when finished.
KVM Port Configuration - 32-port Over-IP model shown
RD119-CATx-Multi-User Specifications:
|
Server Interface
|
VGA - USB (RDG-100S)
VGA - PS2 (RDG-100) DVI - USB (RDG-100SD) HDMI - USB (RDG-100H) DisplayPort - USB (RDG-100P) |
|
Display
|
19" TFT LCD (1280x1024)
|
|
Console Mouse Options
|
Touchpad
|
|
Console Keyboard
|
104 key, available in 13 languages
|
|
Dimensions (H x W x D)
|
1U x 17.4 x 25.6 in. (44 x 442 x 650 mm.)
|
|
Package Contains
|
1 x RD119 Rack Console w/ Integrated KVM
1 x Rack Mount Kit with screws 1 x Power Cord 1 x Quick Installation Guide |
|
Warranty
|
24 Months Parts & Labor
|
RD119-CATx-Single-User Part Matrix:
| Concurrent Users | Local | IP | 8-Port | 16-Port | 32-Port |
| 1 | 1 | 0 | RD119-CATx10008e | RD119-CATx10016e | RD119-CATx10032e |
| 1 | 1 | 1 | RD119-CATx10108e | RD119-CATx10116e | RD119-CATx10132e |
View the Raloy Limited Warranty
