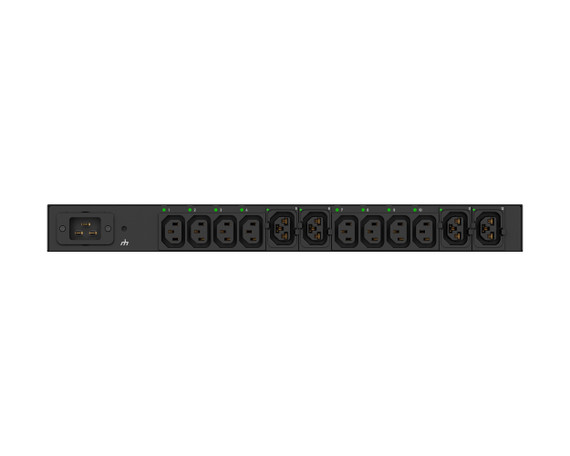

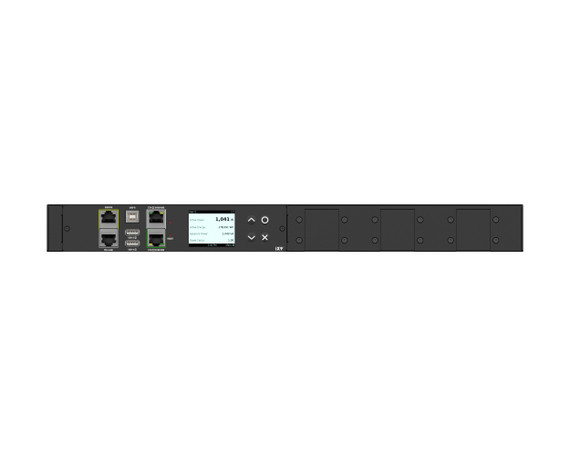

Server Technology PX4-5256CR-C8E8A0
8x IEC320 C13 outlet, 16A, 240V Switched and Metered PDU
MSRP:
$1,319.00
$1,241.41
(You save
$77.59
)
Inlet metered + outlet Metered + switched Power Distribution Unit, IEC C20 100-240V Inlet, 3.8 kvA, Horizontal input, 12 outlets: 8x C13, 4x combined C13/C19 outlets, FEATURES: Billing-Grade (± 0.5%) Energy and Power Quality Metering [kW, kVA, V, A, Voltage and Current Harmonic Distortion, True and Displacement Power Factor, Voltage Dip and Voltage Swell, Neutral Current and Voltage, Current Inrush, and Crest Factor]. Remote network monitoring via HTML, JSON-RPC, Redfish API, SSH, Telnet, MODBUS/TCP, and SNMPv3. Hot-swappable Controller with onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Physically cascade 32 PDUs under one Ethernet port or 16 PDUs with USB. Linking (Shared GUI) of up to 8 PDUs. Environmental monitoring [temp/humidity] capable – up to 32 sensor functions or 12 sensor packages. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. Data logging via HTTP/S or MQTT. Wi-Fi Capable. USB Webcam Capable. iOS or Android App. Dual 10/100/1000 Ethernet port. Mechanical locking function for Outlets. 16A Breakers, 10kAIC. Breaker metering and alarming (0V detection). Maximum ambient temperature 60°C at full load. Attested passed VAPT (Vulnerability Assessment and Penetration Testing), IPv6 Ready, ISO 27001 compliant.
Features |
|
| Energy Metering | Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor |
| Metering Accuracy | Class 0.5 meter |
| Metering per input line | Yes |
| Metering per Branch Circuit Breaker | Yes |
| Metering per Output Receptacle | Yes |
| Remote Outlet Switching | Yes |
| Power Quality Monitoring | Voltage and Current Harmonic Distortion; Distortion Power Factor; Voltage Dip and Voltage Swell; Neutral Current, Current Inrush, Crest Factor |
| Outlet Power Distribution | Alternating Branch |
| Replaceable Controller | Yes, hot-swappable |
| Environmental Sensor Compatible | Yes |
| Compatible Sensors |
Temperature, Humidity, Air Flow, Differential Pressure, Dust/Particle, Water Leak, Proximity/Motion, Vibration, Dry Contact, and Contact Closure. |
| PDU Linking | Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power. |
| Cascading | Physically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding. |
| Linking | Yes, a maximum of 8 PDUs can be linked using the PDU Link Port; PDU 1 is defined as the Primary PDU and can link up to 7 additional PDUs, called Link PDUs, totaling 8 PDUs. |
| Networking | (10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n). |
| Remote Management | HTTP(s); SSH (CLI); Telnet; RS-232 (Serial); SNMP version v2/v3; SMTP; JSON-RPC API; MODBUS-TCP; Redfish API |
| Onboard Display | Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation. |
Specifications |
|
Input |
|
| Input Plug | IEC C20 100-240V Inlet |
| Nominal Voltage | 240 V |
| Maximum Input Current | 20A |
| Rated Input Current | 16A |
| Power Capacity | 3.8kVA |
| Cord Length | N/A |
Output |
|
| Nominal Voltage | 100-240V |
| Receptacles (Output Connections) | 8x C13, 4x Cx |
| Overload Protection | 0 |
Physical |
|
| Dimensions (WxDxH) | 440mm x 183mm x 44mm |
| Unit Weight | 9 lbs |
| Shipping Weight | 9.898756 lbs |
| Mounting | RACK-KIT-DPX-1U |
Environmental |
|
| Operating Temperature/Environment |
60°C/140°F
|
| Operating Relative Humidity | 85% |
| Operating Elevation | 0-10000ft |
Conformance |
|
| Regulatory Approvals | UL;CE |
Inlet metered + outlet Metered + switched Power Distribution Unit, IEC C20 100-240V Inlet, 3.8 kvA, Horizontal input, 12 outlets: 8x C13, 4x combined C13/C19 outlets, FEATURES: Billing-Grade (± 0.5%) Energy and Power Quality Metering [kW, kVA, V, A, Voltage and Current Harmonic Distortion, True and Displacement Power Factor, Voltage Dip and Voltage Swell, Neutral Current and Voltage, Current Inrush, and Crest Factor]. Remote network monitoring via HTML, JSON-RPC, Redfish API, SSH, Telnet, MODBUS/TCP, and SNMPv3. Hot-swappable Controller with onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Physically cascade 32 PDUs under one Ethernet port or 16 PDUs with USB. Linking (Shared GUI) of up to 8 PDUs. Environmental monitoring [temp/humidity] capable – up to 32 sensor functions or 12 sensor packages. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. Data logging via HTTP/S or MQTT. Wi-Fi Capable. USB Webcam Capable. iOS or Android App. Dual 10/100/1000 Ethernet port. Mechanical locking function for Outlets. 16A Breakers, 10kAIC. Breaker metering and alarming (0V detection). Maximum ambient temperature 60°C at full load. Attested passed VAPT (Vulnerability Assessment and Penetration Testing), IPv6 Ready, ISO 27001 compliant.
Features |
|
| Energy Metering | Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor |
| Metering Accuracy | Class 0.5 meter |
| Metering per input line | Yes |
| Metering per Branch Circuit Breaker | Yes |
| Metering per Output Receptacle | Yes |
| Remote Outlet Switching | Yes |
| Power Quality Monitoring | Voltage and Current Harmonic Distortion; Distortion Power Factor; Voltage Dip and Voltage Swell; Neutral Current, Current Inrush, Crest Factor |
| Outlet Power Distribution | Alternating Branch |
| Replaceable Controller | Yes, hot-swappable |
| Environmental Sensor Compatible | Yes |
| Compatible Sensors |
Temperature, Humidity, Air Flow, Differential Pressure, Dust/Particle, Water Leak, Proximity/Motion, Vibration, Dry Contact, and Contact Closure. |
| PDU Linking | Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power. |
| Cascading | Physically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding. |
| Linking | Yes, a maximum of 8 PDUs can be linked using the PDU Link Port; PDU 1 is defined as the Primary PDU and can link up to 7 additional PDUs, called Link PDUs, totaling 8 PDUs. |
| Networking | (10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n). |
| Remote Management | HTTP(s); SSH (CLI); Telnet; RS-232 (Serial); SNMP version v2/v3; SMTP; JSON-RPC API; MODBUS-TCP; Redfish API |
| Onboard Display | Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation. |
Specifications |
|
Input |
|
| Input Plug | IEC C20 100-240V Inlet |
| Nominal Voltage | 240 V |
| Maximum Input Current | 20A |
| Rated Input Current | 16A |
| Power Capacity | 3.8kVA |
| Cord Length | N/A |
Output |
|
| Nominal Voltage | 100-240V |
| Receptacles (Output Connections) | 8x C13, 4x Cx |
| Overload Protection | 0 |
Physical |
|
| Dimensions (WxDxH) | 440mm x 183mm x 44mm |
| Unit Weight | 9 lbs |
| Shipping Weight | 9.898756 lbs |
| Mounting | RACK-KIT-DPX-1U |
Environmental |
|
| Operating Temperature/Environment |
60°C/140°F
|
| Operating Relative Humidity | 85% |
| Operating Elevation | 0-10000ft |
Conformance |
|
| Regulatory Approvals | UL;CE |
Standard 2 years manufacturer warranty
