OceanAire POLARIS Portable Water-Cooled Air Conditioner, 60100 BTU/Hr, L16-20P, 460/60/3 V

The OceanAire POLARIS PWC6034 Porable Air Conditioner is designed for applications where outside air is not available and spot cooling or air conditioning is needed. This cord connected Polaris Model features a 60100 BTU/HR floor mount configuration to satisfy any space requirements. Casters are provided for portability.

This portable air conditioner is thoroughly self-contained with the entire refrigeration system, water valve, condensate pump, fan motor and electrical components neatly arranged in a platinum polyester powder coated metal cabinet. Only power, condenser water supply and discharge and condensate drain piping are required for installation. The 24 volt electronic temperature controller provides the desired comfort. The high efficiency design of the water-cooled condenser allows the proper amount of water flow to achieve the desired high and low refrigeration system pressures. Condenser water is regulated by a refrigeration system head pressure actuated water regulating valve.

Portable Cooling: OceanAire PWC6034 - Click to enlarge



Price
$16,300.00

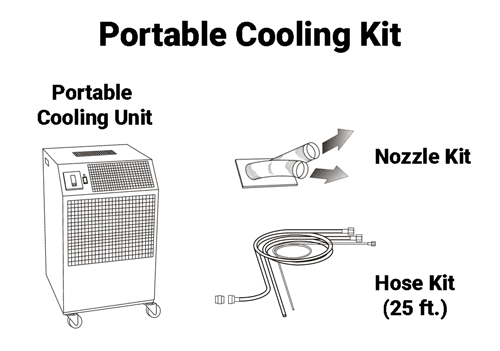

Notes on included accessories.

  • Hose kit with a 25' length is provided for supplying water to the unit and to provide drain for the water outlet and condensate pump. 10' and 40' available.
  • Nozzle kit is used in place of indoor air discharge grille to direct conditioned air for spot cooling. Kit consists of drop-in panel with two flex-duct nozzles.

OceanAire Included Accessories

For additional accessories, options or questions, please contact your Server Rack Online expert at 1-866-722-5776

Polaris Standard Features:

  • High efficiency compressors
  • Electronic temperature control
  • 20' lift condensate pump
  • Condensate check valve/safety switch
  • Dry, insulated base pan
  • High efficiency condenser coil
  • Water reg. valve controls water flow
  • Pitched drain pan (ASHRAE 62-89)
  • Manual reset hi pressure switch
  • Low pressure drop through water circuit
  • Schrader valves for service & testing
  • Compact size
  • 2-speed evap blower
  • 10 foot power supply cord
  • Rifled tube enhanced fin evap coil
  • Washable air filters
  • Heavy duty casters
  • Full line of accessories
  • U.L. Listed for safety
  • Made in U.S.A.

OceanAire Polaris Portable Cooling Unit Dimension Diagram
OceanAire Polaris Portable Cooling Unit Dimension Diagram

NOTE: Water connections: C1 = Water In, C2 = Water Out

AirBoss PWC6034 Specifications:

Mechanical
Height(A) with Casters: 52.25 in. (132.72 cm.)
(D) w/out Casters: 46.5 in. (118.1 cm)
(B) Width 28.25 in. (71.76 cm.)
(C) Depth39 in. (99 cm.)
(E) Dimension32.75 in. (83.19 cm.)
(F) Dimension6 in. (15 cm.)
(G) Dimension4.5 in. (11.4 cm.)
Weight520 lbs. (236 kg.)
Shipping Weight560 lbs. (254 kg.)
Shipping Volume46 cu.ft.
Nominal Cooling Capacity160,100
Power
Voltage (Volts/Phase) at 60Hz460/3
Unit Amps56.3
Unit Watts55000
In Rush Current (Amps)6140
Plug TypeL16-20P
EER12.0
Compressor
Compressor HP5
Compressor RLA9.0
Compressor LRA62
Evap
Evap CFM21950
Evap Motor HP1
Evap Motor Watts550
CondWater Flow (GPM)
at 60°F inlet5.5
at 85°F inlet15
Cond Coil Pressure Drop-PSI0.4
Water Valve
Water Valve Pressure Drop PSI2.0
Water Valve Connection45/8 MF
Drain (Return) Connection5/8 MF
Condensate Pump (ALL UNITS)20 Ft Lift - 3/8 MF Connection On Unit - DRAIN
Sound Level369
R-410A Charge Oz.52

Specifications subject to change without notice:
1 Nominal capacity is total BTUH at 80ºDB/67ºWB return air, high fan speed, with 85ºEWT to 95ºLWT (3 GPM per Ton)
2 CFM with free discharge
3 Sound Pressure, dB at 5 feet, commercial operation
4 3/8” water valve on models 12, 18, 24 (with 3/8” flare fitting), 3/4” water valve on models 36, 60 (with 5/8” flare fitting)
5 Amps and Watts at 208 Volts
6 Time delay fuses/circuit breakers are recommended

Ambient operating range 65º to 105º

May operate down to 55º if equipped with hot gas bypass (Factory installed)
