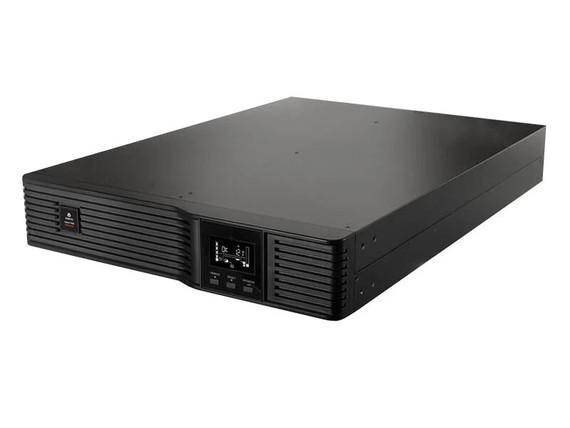

Liebert by Vertiv PSI5-3000RT120LI

Lithium-Ion Line Interactive UPS 3000VA/2700W 120V

No reviews yet

Product Code: PSI5-3000RT120LI

UPC: 767041028010

MSRP: $4,637.00

$3,273.18

(You save $1,363.82 )

3000VA/2700W 120V, (3) NEMA 5-15R programmable outlets, (3) additional NEMA 5-15R outlets, (1) NEMA L5-20R outlet.

TAA Compliant option available (PSI5-3000RT120LITAA)
Pure Sinewave output on battery.
Lithium-Ion battery with an 8 to 10-Year design life.
Network grade surge protection
50% lower Total Cost of Ownership (TCO).
Optional Intellislot™ network management card available for purchase
Free Power Assist™, Power Insight™ software.
Equipment Protection Plan (EPP): $400,000 EPP provides reimbursement or replacement of any connected equipment that is damaged by a power surge while connected to your Vertiv UPS.

The Vertiv Liebert PSI5-3000RT120LI Lithium-Ion UPS provides power protection for critical equipment in edge and distributed IT applications. This tower/rackmount 3000VA/2700W/120V Line-Interactive Lithium-ion UPS provides more than double the useful life of traditional VLRA (valve regulated lead-acid) batteries, resulting in up to 60% TCO savings or more. The PSI5-3000RT120LI reduces the burden at edge IT sites by greatly reducing the need for scheduled UPS maintenance, making it ideally suited for server rooms, network closets, and other edge or distributed IT applications in Education, Banking, Financial, Insurance, Government, Healthcare, Retail, and Wholesale.

Includes: USB Type A to USB Type B cable 1.8 meter (6ft) in length, Rack mounting kit, Rackmount Ears, Support base for tower configuration, User Manual, Free download Vertiv™ Power Assist, Vertiv™ Power Insight software

Liebert PSI5-3000RT120LI Specifications:

Input Phase	1-Phase
Input Voltage(s) Range	75 - 146 V
Input Connection Type	NEMA L5-30P
Input Cord Length (ft.)	8 ft.
OUTPUT
Output Capacity (VA)	3000 VA
Output Capacity (Watts)	2700 W
Frequency Compatibility	55 to 65Hz (57~63Hz Battery to Normal Comeback)
Output AC Waveform (Battery Mode)	Pure Sine Wave
Nominal Output Voltage(s) Supported	120VAC Default; 100/110/115/125VAC User Selectable
Output Receptacles	1 x NEMA L5-30R, 3 x NEMA 5-20R, 3 x Programmable NEMA 5-20R
BATTERY
Battery Type
Runtime Full Load (min.)	Approx. 8min 55s
Runtime Half Load (min.)	Approx. 20min 0s
Expandable Runtime	No
Internal UPS Replacement Battery Cartridge	Yes
Battery Replacement Description	PSI5-3000LIBATKIT
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display	Yes
Alarm	Yes - audible and visual alarms

PHYSICAL
Rack Height	2U
Primary Form Factor	2U Rack/Tower
Unit Dimensions (wdh / in.)	17.2 x 24.8 x 3.4
Unit Weight (lbs.)	53.5 lbs
ENVIRONMENTAL
Operating Temperature Range	0° to 40º C (32º to 104º F)
Relative Humidity	20 to 90 %
Efficiency: Normal (Line) Mode	98.4%
COMMUNICATIONS
Network Management Cards	Optional RDU101 Network Card
Communications Interface	Serial, USB
STANDARDS & COMPLIANCE
Certifications	UL 1642 (LiFe cells), UL 1973 (LiFe pack), UL 1778, CSA 22.2 no. 107.3,. UL 1778, c-UL, NOM, FCC Part 15, Class B, ANSI C62.41, Category A, Level 3, ISTA Procedure 2A UN 38.3 (Lithium-ion)
Compliance	RoHS2 / REACH / WEEE

More details

Questions
Shipping
Why us?

3000VA/2700W 120V, (3) NEMA 5-15R programmable outlets, (3) additional NEMA 5-15R outlets, (1) NEMA L5-20R outlet.

TAA Compliant option available (PSI5-3000RT120LITAA)
Pure Sinewave output on battery.
Lithium-Ion battery with an 8 to 10-Year design life.
Network grade surge protection
50% lower Total Cost of Ownership (TCO).
Optional Intellislot™ network management card available for purchase
Free Power Assist™, Power Insight™ software.
Equipment Protection Plan (EPP): $400,000 EPP provides reimbursement or replacement of any connected equipment that is damaged by a power surge while connected to your Vertiv UPS.

Liebert PSI5-3000RT120LI Specifications:

Input Phase	1-Phase
Input Voltage(s) Range	75 - 146 V
Input Connection Type	NEMA L5-30P
Input Cord Length (ft.)	8 ft.
OUTPUT
Output Capacity (VA)	3000 VA
Output Capacity (Watts)	2700 W
Frequency Compatibility	55 to 65Hz (57~63Hz Battery to Normal Comeback)
Output AC Waveform (Battery Mode)	Pure Sine Wave
Nominal Output Voltage(s) Supported	120VAC Default; 100/110/115/125VAC User Selectable
Output Receptacles	1 x NEMA L5-30R, 3 x NEMA 5-20R, 3 x Programmable NEMA 5-20R
BATTERY
Battery Type
Runtime Full Load (min.)	Approx. 8min 55s
Runtime Half Load (min.)	Approx. 20min 0s
Expandable Runtime	No
Internal UPS Replacement Battery Cartridge	Yes
Battery Replacement Description	PSI5-3000LIBATKIT
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display	Yes
Alarm	Yes - audible and visual alarms

PHYSICAL
Rack Height	2U
Primary Form Factor	2U Rack/Tower
Unit Dimensions (wdh / in.)	17.2 x 24.8 x 3.4
Unit Weight (lbs.)	53.5 lbs
ENVIRONMENTAL
Operating Temperature Range	0° to 40º C (32º to 104º F)
Relative Humidity	20 to 90 %
Efficiency: Normal (Line) Mode	98.4%
COMMUNICATIONS
Network Management Cards	Optional RDU101 Network Card
Communications Interface	Serial, USB
STANDARDS & COMPLIANCE
Certifications	UL 1642 (LiFe cells), UL 1973 (LiFe pack), UL 1778, CSA 22.2 no. 107.3,. UL 1778, c-UL, NOM, FCC Part 15, Class B, ANSI C62.41, Category A, Level 3, ISTA Procedure 2A UN 38.3 (Lithium-ion)
Compliance	RoHS2 / REACH / WEEE

Liebert Lithium-ION UPS 5-Year Limited Warranty.
