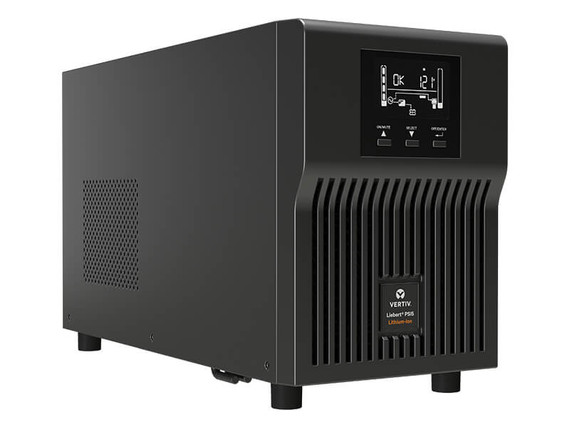

Liebert by Vertiv PSI5-1500MT120LI

Mini Tower Lithium-Ion Line Interactive UPS 1500VA/1350W 120V

No reviews yet

Product Code: PSI5-1500MT120LI

UPC: 767041033441

MSRP: $1,712.00

$1,208.47

(You save $503.53 )

1500VA 1350W/120V, (3) NEMA 5-15R programmable outlets, (3) additional NEMA 5-15R outlets. (Optionally bundled with RDU101 Network Card {PSI5-1500MT120LIN})

Pure Sinewave output on battery.
Lithium-Ion battery with an 8 to 10-Year design life.
Network grade surge protection
50% lower Total Cost of Ownership (TCO).
Intellislot™ network management card included
Free Power Assist™, Power Insight™ software.
Equipment Protection Plan (EPP): $400,000 EPP provides reimbursement or replacement of any connected equipment that is damaged by a power surge while connected to your Vertiv UPS.

The Vertiv Liebert PSI5-1500MT120LI Lithium-Ion UPS and PSI5-1500MT120LIN Lithium-Ion UPS with SNMP/Webcard provide power protection for critical equipment in edge and distributed IT applications. This Mini tower 1500VA/1350W/120V Line-Interactive Lithium-ion UPS provides more than double the useful life of traditional VLRA (valve regulated lead-acid) batteries, resulting in up to 60% TCO savings or more. The PSI5-1500MT120LI & PSI5-1500MT120LIN reduce the burden at edge IT sites by greatly reducing the need for scheduled UPS maintenance, making them ideally suited for server rooms, network closets, and other edge or distributed IT applications in Education, Banking, Financial, Insurance, Government, Healthcare, Retail, and Wholesale.

Includes: USB Type A to USB Type B cable 1.8 meter (6ft) in length, Support base for tower configuration, User Manual, Free download Vertiv™ Power Assist, Vertiv™ Power Insight software, (Vertiv™ Liebert® RDU120 Network Card included with the PSI5-1500MT120LIN

Liebert PSI5-1500MT120LI Specifications:

Input Phase	1-Phase
Input Voltage(s) Range	75 - 146 V
Input Connection Type	NEMA 5-15P
Input Cord Length (ft.)	6 ft.
OUTPUT
Output Capacity (VA)	1500 VA
Output Capacity (Watts)	1350 W
Frequency Compatibility	55 to 65Hz (57~63Hz Battery to Normal Comeback)
Output AC Waveform (Battery Mode)	Pure Sine Wave
Nominal Output Voltage(s) Supported	120VAC Default; 100/110/115/125VAC User Selectable
Output Receptacles	3 x NEMA 5-15R, 3 x Programmable NEMA 5-15R
BATTERY
Battery Type
Runtime Full Load (min.)	Approx. 7min 30s
Runtime Half Load (min.)	Approx. 17min 42s
Expandable Runtime	No
Internal UPS Replacement Battery Cartridge	Yes
Battery Replacement Description	PSI5-1500LIBATKIT
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display	Yes
Alarm	Yes - audible and visual alarms

PHYSICAL
Rack Height	2U
Primary Form Factor	Mini Tower
Unit Dimensions (wdh / in.)	6.3 x 15.6 x 8.7
Unit Weight (lbs.)	28.3 lbs
ENVIRONMENTAL
Operating Temperature Range	0° to 40º C (32º to 104º F)
Relative Humidity	20 to 90 %
Efficiency: Normal (Line) Mode	97.1%
COMMUNICATIONS
Network Management Cards	RDU101 Network Card Included with PSI5-1500MT120LIN
Communications Interface	Serial, USB
STANDARDS & COMPLIANCE
Certifications	UL 1642 (LiFe cells), UL 1973 (LiFe pack), UL 1778, CSA 22.2 no. 107.3,. UL 1778, c-UL, NOM, FCC Part 15, Class B, ANSI C62.41, Category A, Level 3, ISTA Procedure 2A UN 38.3 (Lithium-ion)
Compliance	RoHS2 / REACH / WEEE

More details

Questions
Shipping
Why us?

1500VA 1350W/120V, (3) NEMA 5-15R programmable outlets, (3) additional NEMA 5-15R outlets. (Optionally bundled with RDU101 Network Card {PSI5-1500MT120LIN})

Pure Sinewave output on battery.
Lithium-Ion battery with an 8 to 10-Year design life.
Network grade surge protection
50% lower Total Cost of Ownership (TCO).
Intellislot™ network management card included
Free Power Assist™, Power Insight™ software.
Equipment Protection Plan (EPP): $400,000 EPP provides reimbursement or replacement of any connected equipment that is damaged by a power surge while connected to your Vertiv UPS.

Liebert PSI5-1500MT120LI Specifications:

Input Phase	1-Phase
Input Voltage(s) Range	75 - 146 V
Input Connection Type	NEMA 5-15P
Input Cord Length (ft.)	6 ft.
OUTPUT
Output Capacity (VA)	1500 VA
Output Capacity (Watts)	1350 W
Frequency Compatibility	55 to 65Hz (57~63Hz Battery to Normal Comeback)
Output AC Waveform (Battery Mode)	Pure Sine Wave
Nominal Output Voltage(s) Supported	120VAC Default; 100/110/115/125VAC User Selectable
Output Receptacles	3 x NEMA 5-15R, 3 x Programmable NEMA 5-15R
BATTERY
Battery Type
Runtime Full Load (min.)	Approx. 7min 30s
Runtime Half Load (min.)	Approx. 17min 42s
Expandable Runtime	No
Internal UPS Replacement Battery Cartridge	Yes
Battery Replacement Description	PSI5-1500LIBATKIT
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display	Yes
Alarm	Yes - audible and visual alarms

PHYSICAL
Rack Height	2U
Primary Form Factor	Mini Tower
Unit Dimensions (wdh / in.)	6.3 x 15.6 x 8.7
Unit Weight (lbs.)	28.3 lbs
ENVIRONMENTAL
Operating Temperature Range	0° to 40º C (32º to 104º F)
Relative Humidity	20 to 90 %
Efficiency: Normal (Line) Mode	97.1%
COMMUNICATIONS
Network Management Cards	RDU101 Network Card Included with PSI5-1500MT120LIN
Communications Interface	Serial, USB
STANDARDS & COMPLIANCE
Certifications	UL 1642 (LiFe cells), UL 1973 (LiFe pack), UL 1778, CSA 22.2 no. 107.3,. UL 1778, c-UL, NOM, FCC Part 15, Class B, ANSI C62.41, Category A, Level 3, ISTA Procedure 2A UN 38.3 (Lithium-ion)
Compliance	RoHS2 / REACH / WEEE

Liebert Lithium-ION UPS 5-Year Limited Warranty.
