MRK-X1417

Rugged Military Grade 1U LED-backlit KVM Drawer

No reviews yet

📞 This product is coming soon. Expected release in December 2025.




Benefits

  • Meet MIL-STD-810H standard
  • 1U 17" LED-backlit LCD console drawer
  • MRK-K1417 : 3840 x 2160@60Hz native resolution
  • MRK-F1417 : 1920 x 1080 native resolution
  • Ideal design for military transit case
  • Sealed silicone keyboard with touchpad (option: trackball)
  • MIL AC power adaptor (auto-sensing 85 to 264VAC. 50/60Hz)
  • Enhanced aesthetics with molded front handle & 2-point lock
  • Self-locking rails for ultra convenience
  • TAA compliant

Options

  • Military CAC USB card reader
  • DC power: 12V/24V/48V/125V/250V
  • LCD protection: Anti-glare, AR & EMC glass
  • Touchscreen: projected Capacitive 10-pt/Resistive 1-p

**LCD protection & touchscreen only for touchpad model

Console Port MRK-K1417 MRK-F1417
Video Input DP 1.2 or HDMI 1.4 VGA or HDMI 1.4
KB / MS 2 x USB-A 2 x USB-A



AC Power
MIL Power Connector 3-pin lock plug (MS3470W83-33P
Unit Power Input Max. 15W (Single console)/Max. 27W (KVM model)



Military Environment MIL-STD-810H Standard
MIL-STD-810, Method 501.5 & 502.5

Operation temp: -20 to 65°C

Storage temp: -30 to -70°C
MIL-STD-810, Method 500.5

Operation altitude: 10,000 ft

Storage altitude: 30,000 ft

MIL-STD-810, Method 507.5

MIL-STD-810, Method 514.6 & 516.6

Humidity: 10% - 90%, non-condensing

Shock/Vibration: Procedure VI, 50G @11ms



Compliance
CE/EMC EN55032/EN55035
CE/LVD EN62368
FCC sub part 15B
RoHS 3 & REACH & WEEE

Waterproof Backlit Silicone Keyboard

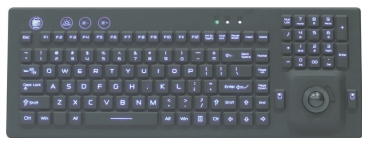

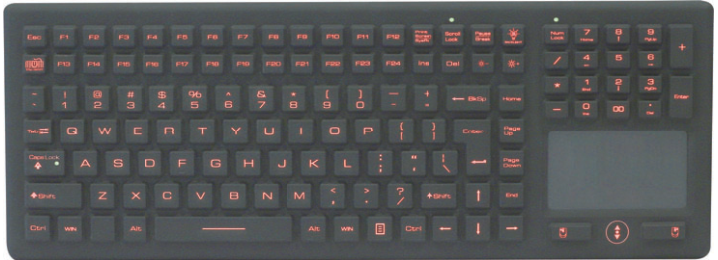

Sealed 122-keys silicone keyboard and touchpad (Standard) Sealed 114-keys silicone keyboard and trackball (option)
  • IP65 rated protection
  • Red LED backlight
  • Actuation Force: 1.0N+/-0.1N
  • Key switch lifetime: 3 mil. Operations
  • IP67 rated protection
  • Actuation Force: 1.0N+/-0.1N
  • Blue LED blacklight
  • Key switch lifetime: 3 mil. operations

Non-waterproof Keyboard Options

G keyboard integrated with touchpad

G keyboard integrated with trackball

Standard Language Layout: English (U.S.)

** Other language layouts upon request

Single Console Layout

MRK-K1417                                  *Video input: DP 1.2 or HDMI 1.4

MRK-F1417                                  *Video input: VGA or HDMI 1.4

KVM Options

DP KVM Remote 8-port
0 0

MRK-K1417-801DP

MRK-F1417-801DP

HDMI KVM Remote 8-port
0 0

MRK-K1417-801K

MRK-F1417-801K

DVI-D KVM Remote 12-port
0 0

MRK-F1417-1201D

DB-15

Combo

KVM

 Remote 8-port 16-port
1 0

MRK-F1417-IP802

MRK-F1417-IP1602
0 1

MRK-F1417-802

MRK-F1417-1602
0 0

MRK-F1417-S801

MRK-F1417-S1601

Cat6

Combo

KVM

 Remote 8-port 16-port
1 0

MRK-F1417-UIP802

MRK-F1417-UIP1602
0 1

MRK-F1417-U802

MRK-F1417-U1602
0 0

MRK-F1417-U801

MRK-F1417-U1601

More details
