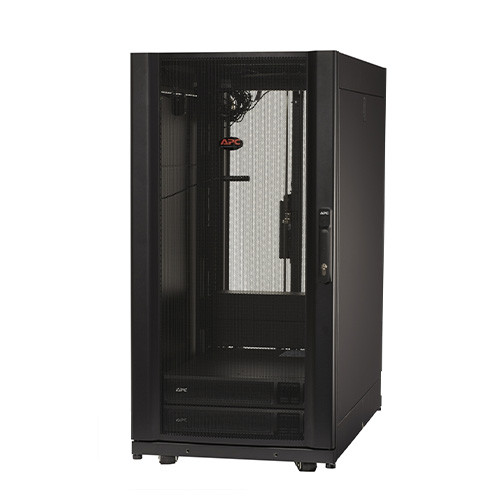

24U Micro Data Center, 3kVA UPS, 120V Switched PDU

The MDC24SX3KVAT Micro Data Center Xpress solution makes it easy and cost effective to add data center capacity anywhere & anytime it is needed – in both IT Room and non climate controlled environments. The MDC24SX3KVAT is a pre-assembled Micro Data Center including a shock packaged rack, two UPSs, two switched rack PDUs, a NetBotz 250 environmental monitoring unit with rack access handles, one temperature/ humidity probe, blanking panels, and brush strip - all tested, assembled and packaged at a Schneider Electric facility and then shipped direct to you.

• It comes pre-assembled, which simplifies deployment and reduces installation time
• Built on the APC NetShelter SX 24U AR3104
• It includes two SMX3000RMLV2UNC 3kVA UPS, providing reliable power backup
• The unit is equipped with the NetBotz 250 for enhanced security
• Includes two AP7902B switched rack PDUs, allowing for effective power distribution

MDC24SX3KVAT EcoStruxure Micro Data Center Specifications

Height: 24U (47.2 in / 1199 mm)
Width: 23.6 in (600 mm)
Depth: 42.1 in (1070 mm)
Net Weight: 420.003 lb(US) (190.51 kg)
Maximum Mounting Depth: 36.02 in (914.9 mm)
Minimum mounting depth: 7.5 in (191 mm)
Rack Width: 19"
EIA Mounting Rails: 14 gauge, 19" EIA, adjust in .25 in. (6 mm) increments
Front Door: 16 gauge, 130˚, reversible, curved front, 69% Perf.
Rear Door: 18 gauge, 130˚, flat front, 69% Perf.
Side Panels: 18 gauge, lift off, Split, lockable
Roof: 18 gauge, 3 cable entry points (3 front, 2 rear)
Vertical Posts: 16 gauge
Permanent permissible load: 2250 lb(US) (1020.6 kg) dynamic; 3000 lb(US) (1360.8 kg) static
Standards: UL 2416; UL 60950-1, EIA-310E; RoHS, REACH

Included with the MDC24SX3KVAT

• 1 x NBHN125 - NetBotz 125 kHz Handle Kit - Installed
• 1 x NBRK0250 - NetBotz Rack Monitor 250 - Installed
• 1 x NBES0303 - NetBotz Door Switch Sensors (2) for an APC Rack - 12 ft. - Installed
• 1 x AP9891 - Power Cord Kit (5 ea), C13 to 5-15P, 0.6m - Accessory Box
• 10 x AR8136BLK - APC 1U 19" Black Modular Toolless Blanking Panel - Accessory Box
• 1 x AR8429 - Horizontal Cable Organizer 1U w/brush strip - Installed
• 2 x AP7902B - Rack PDU, Switched, 2U, 30A, 120V, (16)5-20 - Installed
• 2 x SMX3000RMLV2UNC - APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card
• 1 x AR3104SP1 - NetShelter SX 24U 600mm Wide x 1070mm Deep Enclosure - 1250 lbs. Shock Packaging
