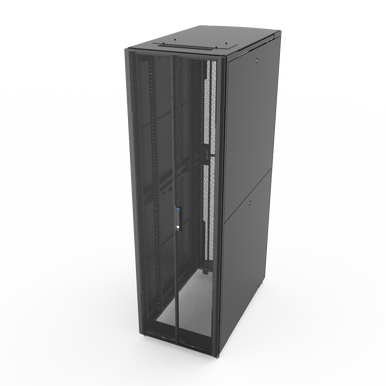

Great Lakes L Cabinets

No reviews yet
• Discontinued ⓘ This product has been discontinued by the manufacturer and is no longer available for purchase.

Looking for a replacement or comparable alternative?
Request Options

Lead time and availability are subject to change without notice.
Product Code: L Series
Condition: New
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code

STANDARD READY-TO-SHIP CABINET FOR DATA COMMUNICATIONS DEPLOYMENT

  • 3/8″ sq. (M6) mounting rails adjustable in 6.35mm increments
  • Depth markings along horizontals for easy rail adjustment
  • Includes 1 vertical PDU/cable management rail mounted in the rear corner
  • PDU/cable management rail features obrounds for cinch straps and cutouts for cable
  • routing; also provides button mounting of PDUs
  • Fully open bottom to accommodate large under floor cable applications
  • Mesh front door and split mesh rear door provide airflow
  • Half-height solid side panels with lock
  • Levelers and casters are pre-installed
  • Color: Black
  • Standards: UL2416, RoHS II

    SKU Table

    Height Width Depth Configuration SKU
    42 (77.9") 24 42 MSS GL790L-2442MSS
    42 (77.9") 24 48 MSS GL790L-2448MSS
    42 (77.9") 32 42 MSS GL790L-3242MSS
    42 (77.9") 32 48 MSS GL790L-3248MSS
    47 (87.25") 24 42 MSS GL910L-2442MSS
    47 (87.25") 24 48 MSS GL910L-2448MSS
    47 (87.25") 32 42 MSS GL910L-3242MSS
    47 (87.25") 32 48 MSS GL910L-3248MSS





STANDARD READY-TO-SHIP CABINET FOR DATA COMMUNICATIONS DEPLOYMENT

  • 3/8″ sq. (M6) mounting rails adjustable in 6.35mm increments
  • Depth markings along horizontals for easy rail adjustment
  • Includes 1 vertical PDU/cable management rail mounted in the rear corner
  • PDU/cable management rail features obrounds for cinch straps and cutouts for cable
  • routing; also provides button mounting of PDUs
  • Fully open bottom to accommodate large under floor cable applications
  • Mesh front door and split mesh rear door provide airflow
  • Half-height solid side panels with lock
  • Levelers and casters are pre-installed
  • Color: Black
  • Standards: UL2416, RoHS II

    SKU Table

    Height Width Depth Configuration SKU
    42 (77.9") 24 42 MSS GL790L-2442MSS
    42 (77.9") 24 48 MSS GL790L-2448MSS
    42 (77.9") 32 42 MSS GL790L-3242MSS
    42 (77.9") 32 48 MSS GL790L-3248MSS
    47 (87.25") 24 42 MSS GL910L-2442MSS
    47 (87.25") 24 48 MSS GL910L-2448MSS
    47 (87.25") 32 42 MSS GL910L-3242MSS
    47 (87.25") 32 48 MSS GL910L-3248MSS







No resources are available for this product at this time.

Request a document below.*



For information regarding orders or shipping, please visit the Ordering Information page.

*Subject to availability


Product Specifications

Specification Details
__promocondition rack
__#Datasheet https://greatcabinets.com/wp-content/uploads/2021/04/L_spec.pdf
__#Instruction Manual https://greatcabinets.com/wp-content/uploads/2020/12/Form_MS-5.02-60_L_Instructions.pdf
Rack Units (RMU) 13
Rack Units (RMU) 24
Rack Units (RMU) 31
Rack Units (RMU) 37
Rack Units (RMU) 44
Width 24+"
Depth >40"
Color Black
Door Type Mesh
Door Type Split Door
Dynamic Load Capacity 3000lbs
Mounting Width 19"
Rack Features Gangable
Rack Features Lift-off Side Panels
Rack Features Locking Handles
Rack Features Integrated Cable Management
Rack Units (RMU) 42
Rack Units (RMU) 47
Static Load Capacity 3000lbs
Usable Rack Depth 39.3"
Usable Rack Depth 47.2"
__customlabel TAA Compliant
__customlabel PCI Compliant
