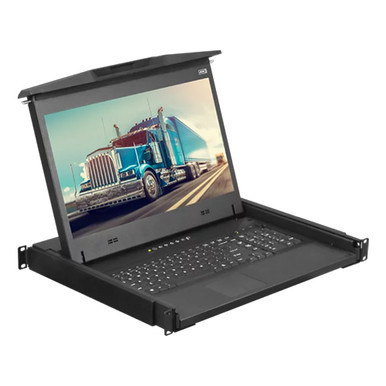

Austin Hughes K1417-X

17" 1U, 4K UHD LCD console / KVM drawer

No reviews yet
Product Code: K1417-X
MSRP: $2,445.00
$2,256.00
(You save $189.00 )
Choose Options:

The new CyberView K1417 is a Ultra Short Depth 1U 17" 4K Rack Mount Monitor Drawer. RKP14 Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

K1417 Features and Benefits

  • 1U 17" 4K LCD console drawer
  • 3840 x 2160 native resolution / 16.7M colors ( 8-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • Display port 1.2 video input / USB KB / MS
  • Ultra Short depth design of 400mm (15.7 in.)
  • Ideal for open rack / short depth rack
  • 104-key keyboard with either touchpad or trackball options
  • One Man installation design
  • Enhanced aesthetics with new molded front panel and 2-point lock
  • 6ft combo cable included
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more

Optional Configurations (Call for availability)

  • HDMI 2.0 (HDCP 2.2) video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • DC Power: 12, 24, 48, 110-125 V DC
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Touchscreen: Resistive 1-pt

Cyberview K1417 Specifications



Mechanical
Product Dimensions (Height x Width x Depth)
Single Console 1.73 x 17.4 x 15.7 inches
(44 x 442 x 400 millimeters)
Console with KVM 1.73 x 17.4 x 18.1 inches
(44 x 442 x 460 millimeters)
Package Dimensions (Height x Width x Depth)
Single Console / Console with KVM 5.5 x 23.2 x 24.5 inches
(140 x 590 x 622 millimeters)
Net Weight
Single Console 19.1 pounds (8.7 kilograms)
Console with KVM 20.9 pounds (9.5 kilograms)
Gross Weight
Single Console 30.2 pounds (13.7 kilograms)
Console with KVM 33.9 pounds (15.4 kilograms)
Mounting Distance
Single Console 16.1 to 25.2 inches
(410 to 640 millimeters)
Console with KVM 16.1 to 26.8 inches
(410 to 680 millimeters)
Console Ports
Video Input Display Port 1.2
Video Option HDMI 2.0 / HDCP 2.2
Keyboard and Mouse USB Type B
DP Console 6-foot Cable Drawer end: DP + USB Type B (Keyboard / Mouse)
Server end: DP + USB Type A
LCD Screen
LCD Panel Size (Diagonal) 17.3 inches
Backlight Type LED
Native Resolution 3840 x 2160
Brightness (candela per square meter) 400
Colors 16.7 million, 8-bit
Contrast Ratio (Typical) 1000:1
Viewing Angle (Left / Right / Up / Down) 89° / 89° / 89° / 89°
Response Time (Milliseconds) 30
Dot Pitch (Millimeters) 0.0995
Display Area (Millimeters) 382.12 Horizontal x 214.94 Vertical
Surface Treatment Anti-glare
Surface Hardness 3H
Mean Time Between Failures (Hours) 20,000
Audio Option
Speaker 2 x 2-Watt (Dual Stereo)
Input Connector 3.5-millimeter stereo jack
Input Impedance / Power Level 30 Ohms / 750 Millivolts
Output Connector 3.5-millimeter stereo jack
Output Impedance / Power Level 30 Ohms / 2.8 Volts
Power
Power Input Auto-sensing 100 to 240 Volts AC, 50 / 60 Hertz
Power Consumption (Single Console / with KVM)
Screen on Maximum 29 Watts / Maximum 38 Watts
Power saving mode Maximum 9 Watts / Maximum 18 Watts
Power button off Maximum 2 Watts / None
Environmental
Operating Temperature 0 to 55 Degrees Celsius
Storage Temperature -20 to 60 Degrees Celsius
Operating Humidity 20% to 90%, non-condensing
Relative Humidity 5% to 90%, non-condensing
Operating Altitude 16,000 feet
Non-operating Altitude 40,000 feet
Shock 10G acceleration (11 milliseconds duration)
Vibration 10 to 300 Hertz, 0.5G RMS random vibration
Regulatory Compliance
EMC FCC and CE certified
Safety CE / LVD certified
Environment RoHS2 and REACH compliant
More details

Write a Review

17" 1U, 4K UHD LCD console / KVM drawer

Austin Hughes

17" 1U, 4K UHD LCD console / KVM drawer




The new CyberView K1417 is a Ultra Short Depth 1U 17" 4K Rack Mount Monitor Drawer. RKP14 Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

K1417 Features and Benefits

  • 1U 17" 4K LCD console drawer
  • 3840 x 2160 native resolution / 16.7M colors ( 8-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • Display port 1.2 video input / USB KB / MS
  • Ultra Short depth design of 400mm (15.7 in.)
  • Ideal for open rack / short depth rack
  • 104-key keyboard with either touchpad or trackball options
  • One Man installation design
  • Enhanced aesthetics with new molded front panel and 2-point lock
  • 6ft combo cable included
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more

Optional Configurations (Call for availability)

  • HDMI 2.0 (HDCP 2.2) video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • DC Power: 12, 24, 48, 110-125 V DC
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Touchscreen: Resistive 1-pt

Cyberview K1417 Specifications



Mechanical
Product Dimensions (Height x Width x Depth)
Single Console 1.73 x 17.4 x 15.7 inches
(44 x 442 x 400 millimeters)
Console with KVM 1.73 x 17.4 x 18.1 inches
(44 x 442 x 460 millimeters)
Package Dimensions (Height x Width x Depth)
Single Console / Console with KVM 5.5 x 23.2 x 24.5 inches
(140 x 590 x 622 millimeters)
Net Weight
Single Console 19.1 pounds (8.7 kilograms)
Console with KVM 20.9 pounds (9.5 kilograms)
Gross Weight
Single Console 30.2 pounds (13.7 kilograms)
Console with KVM 33.9 pounds (15.4 kilograms)
Mounting Distance
Single Console 16.1 to 25.2 inches
(410 to 640 millimeters)
Console with KVM 16.1 to 26.8 inches
(410 to 680 millimeters)
Console Ports
Video Input Display Port 1.2
Video Option HDMI 2.0 / HDCP 2.2
Keyboard and Mouse USB Type B
DP Console 6-foot Cable Drawer end: DP + USB Type B (Keyboard / Mouse)
Server end: DP + USB Type A
LCD Screen
LCD Panel Size (Diagonal) 17.3 inches
Backlight Type LED
Native Resolution 3840 x 2160
Brightness (candela per square meter) 400
Colors 16.7 million, 8-bit
Contrast Ratio (Typical) 1000:1
Viewing Angle (Left / Right / Up / Down) 89° / 89° / 89° / 89°
Response Time (Milliseconds) 30
Dot Pitch (Millimeters) 0.0995
Display Area (Millimeters) 382.12 Horizontal x 214.94 Vertical
Surface Treatment Anti-glare
Surface Hardness 3H
Mean Time Between Failures (Hours) 20,000
Audio Option
Speaker 2 x 2-Watt (Dual Stereo)
Input Connector 3.5-millimeter stereo jack
Input Impedance / Power Level 30 Ohms / 750 Millivolts
Output Connector 3.5-millimeter stereo jack
Output Impedance / Power Level 30 Ohms / 2.8 Volts
Power
Power Input Auto-sensing 100 to 240 Volts AC, 50 / 60 Hertz
Power Consumption (Single Console / with KVM)
Screen on Maximum 29 Watts / Maximum 38 Watts
Power saving mode Maximum 9 Watts / Maximum 18 Watts
Power button off Maximum 2 Watts / None
Environmental
Operating Temperature 0 to 55 Degrees Celsius
Storage Temperature -20 to 60 Degrees Celsius
Operating Humidity 20% to 90%, non-condensing
Relative Humidity 5% to 90%, non-condensing
Operating Altitude 16,000 feet
Non-operating Altitude 40,000 feet
Shock 10G acceleration (11 milliseconds duration)
Vibration 10 to 300 Hertz, 0.5G RMS random vibration
Regulatory Compliance
EMC FCC and CE certified
Safety CE / LVD certified
Environment RoHS2 and REACH compliant
