Dataprobe iBoot-PDU4A-N20
iBoot-PDU4-N20 - Switched & Web Managed 115V, 20A PDU - Single 5-20P Inlet, 4 x 5-15R Outlets
Total Number of Outlets:
4
Current (Amps):
20A
Voltage:
115V
MSRP:
$485.00
$432.86
(You save
$52.14
)
Dataprobe iBoot-PDU4-N20 (1530043)
Cloud Controlled - Switched PDU - Managed PDU - Metered PDU
Current: 20A
Voltage: 115V
Input Plug: (Single) NEMA 5-20P, 10ft Chord
Outlets: (4) NEMA 5-15R
Mounting: 1U Rack Mount or Desktop
Monitoring: Temperature (optional), Voltage, Current (A), Date-Time
Switching: Outlets, Outlet Groups, Complex Custom Sequences
Management: Web Browser, Free Cloud, Local Network, Telnet/CLI, Landline Modem (optional), SNMP, Advanced Automation
iBoot-PDU4-N20 Operation
When you need to reduce costly site visits, ensure business continuity and increase network reliability, iBoot-PDU series gives you peace of mind. iBoot-PDU4-N20, a web-accessible, managed PDU with independently controlled outlets, enables multiple users to reboot remotely from anywhere, using any web browser, Telnet client or SNMP manager.
From servers and webcams to IP PBXes and surveillance systems, iBoot-PDU4-N20 keeps your network up and running.
iBoot-PDU4-N20 Features
| Independently controllable outlets | The iBoot-PDU4-N20 is designed to provide power distribution and remote power control. Each iBoot-PDU4-N20 allows four outlets to be independently switched on and off for reboot, energy management and security. The iBoot-PDU4-N20 has many features to make the management of power distribution simple and cost effective: |
| Web Browser Control | Simple web browser interface is easy to use and provides complete status information and control of the outlets, and groups. |
| Telnet/Serial CLI control | Telnet and serial access use the same Command Line Interface (CLI) structure and syntax to completely configure the iBoot-PDU4-N20, or multiple iBoot-PDUs in a cluster configuration. |
| Multiple Users | Multiple users can be assigned administrator or user only rights, plus access to specific outlets and groups. Users only see the outlets and groups they are assigned to. |
| Grouping of outlets for simultaneous management | Multiple outlets, across multiple iBoot-PDUs in clustered configurations can be linked together in named groups and managed together. This allows for example, power cycling all devices of a certain type together. |
| Multiple iBoot-PDU Cluster Configuration | Additional iBoot-PDUs can be managed from a single unit. One master iBoot-PDU provides the communication to the users and continuously receives status information from the rest of the iBoot-PDUs in the cluster. Groups can be created across multiple PDUs and controlled simultaneously. |
| Automation | The iBoot-PDU4-N20 can monitor voltage, current and temperature to provide automatic response to the physical environment. AutoPing testing monitors network elements. Program complex sequences of outlet actions and notifications to respond instantly to out of normal situations. Temperature monitoring requires add-on probe. |

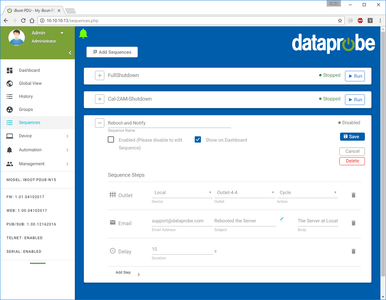

| Real-Time event control | Set automatic power actions based on your schedule. Restart systems every day to reduce memory bloat. Power up resources only when needed for energy management, lifecycle extension or security. |
| Landline Modem Option | The add-on landline modem supports data calls from terminal devices using the CLI, and direct dial from a tone telephone for simple on/off control when more sophisticated means are not available. Voice modem also allows phone dial tone control with voice response (Basic functions only) |
| Network Management | Setup and Control functions can be linked to any SNMP v2c compatible manager. The iBoot-PDU MIB is downloadable from the iBoot-PDU Support & Downloads page. Reports to syslog server. |
Pays for Itself with the First Service Call Saved
Don't let the cost of downtime keep you from meeting your service and revenue expectations. Keep your critical systems running without expensive service calls. Use low-cost remote power control to automatically reboot failed devices and get up and running in the most cost effective way possible.
iBoot-PDU4-N20 will save you time and money by reducing costly downtime. Just point your browser to the iBoot-PDU, login and you are one click away from bringing that failed system back to life. iBoot-PDU will even detect failed systems and take immediate action.
iBoot - Minimizing Cost of Downtime
eBook & Downtime Calculator
Optional Accessories
Dual Temperature Probe
Add an optional USB Plug-N-Play Dual Temperature Probe for iBoot-PDU. This temperature data can be used to monitor or to program complex sequences of outlet actions and notifications to respond instantly to out of normal situations.USB Landline Modem
The add-on landline modem supports data calls from terminal devices using the CLI, and direct dial from a tone telephone for simple on/off control when more sophisticated means are not available. Voice modem also allows phone dial tone control with voice response (Basic functions only)Add Cloud Connected iBoots
iBoot Cloud Service (iBCS) allows customers with iBoot-PDU to access and control multiple iBoot units in multiple locations by consolidating all units into one sign-on and interface.Locking Power Cables
Eliminate accidental and vibration disconnects using Zonit zLock Universal Locking Power Cables.iBoot-PDU4-N20 Package Contents
- (1) iBoot-PDU4-N20
- (1) 6 ft. NEMA 5-20P Power Cable
- (2) 1U Rack Mount Ears
- (1) 6 ft. Cat5 Network Cable
- (1) 6 ft. USB-A to USB Mini-B Cable (for Serial)
- (1) Quick-Start Guide
- (1) 3-Year Warranty
iBoot-PDU4-N20 Resources
iBoot-PDU4-N20 Datasheet (PDF)
iBoot-PDU4-N20 Manual (PDF)
Setup - Tips & Tricks (Link)
Automation - Tips & Tricks (Link)
Dataprobe iBoot-PDU4-N20 Specifications
| Mechanical |
|
||||||||
| Environmental |
|
||||||||
| A/C Power Input | NEMA 5-20 Linecord 115VAC 20 Amps combined total switched per Linecord Supplied with NEMA 5-20 Linecord, attached |
||||||||
| Network | 10/100 Ethernet Web, Telnet, SNMP, SMTP Port Assignable for Web and Telnet. SSL Security on Web control |
||||||||
| USB Ports | 4 x USB A ports for accessories, modem, temperature probe, etc.
1 x USB B port for serial port and external battery |
||||||||
| Optional - Temperature Module | USB Dual Temperature Sensors. Sensor 2 on 1m cable. | ||||||||
| Optional - Landline Modem | 56Kbps V.92 Global Compliance, Data or Tone Dial (DTMF) control | ||||||||
| Switched Outlet | 4 x NEMA 5-15 Receptacle, 12 Amps Max per Receptacle, 20 Amps Max Total per Linecord |
||||||||
| Compliance | UL/cUL Listed 60950-1, 2nd Edition 2014-10-14 (US) CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Canada)
CE Marked FCC Part 15 Class B |
Dataprobe iBoot-PDU4-N20 (1530043)
Cloud Controlled - Switched PDU - Managed PDU - Metered PDU
Current: 20A
Voltage: 115V
Input Plug: (Single) NEMA 5-20P, 10ft Chord
Outlets: (4) NEMA 5-15R
Mounting: 1U Rack Mount or Desktop
Monitoring: Temperature (optional), Voltage, Current (A), Date-Time
Switching: Outlets, Outlet Groups, Complex Custom Sequences
Management: Web Browser, Free Cloud, Local Network, Telnet/CLI, Landline Modem (optional), SNMP, Advanced Automation
iBoot-PDU4-N20 Operation
When you need to reduce costly site visits, ensure business continuity and increase network reliability, iBoot-PDU series gives you peace of mind. iBoot-PDU4-N20, a web-accessible, managed PDU with independently controlled outlets, enables multiple users to reboot remotely from anywhere, using any web browser, Telnet client or SNMP manager.
From servers and webcams to IP PBXes and surveillance systems, iBoot-PDU4-N20 keeps your network up and running.
iBoot-PDU4-N20 Features
| Independently controllable outlets | The iBoot-PDU4-N20 is designed to provide power distribution and remote power control. Each iBoot-PDU4-N20 allows four outlets to be independently switched on and off for reboot, energy management and security. The iBoot-PDU4-N20 has many features to make the management of power distribution simple and cost effective: |
| Web Browser Control | Simple web browser interface is easy to use and provides complete status information and control of the outlets, and groups. |
| Telnet/Serial CLI control | Telnet and serial access use the same Command Line Interface (CLI) structure and syntax to completely configure the iBoot-PDU4-N20, or multiple iBoot-PDUs in a cluster configuration. |
| Multiple Users | Multiple users can be assigned administrator or user only rights, plus access to specific outlets and groups. Users only see the outlets and groups they are assigned to. |
| Grouping of outlets for simultaneous management | Multiple outlets, across multiple iBoot-PDUs in clustered configurations can be linked together in named groups and managed together. This allows for example, power cycling all devices of a certain type together. |
| Multiple iBoot-PDU Cluster Configuration | Additional iBoot-PDUs can be managed from a single unit. One master iBoot-PDU provides the communication to the users and continuously receives status information from the rest of the iBoot-PDUs in the cluster. Groups can be created across multiple PDUs and controlled simultaneously. |
| Automation | The iBoot-PDU4-N20 can monitor voltage, current and temperature to provide automatic response to the physical environment. AutoPing testing monitors network elements. Program complex sequences of outlet actions and notifications to respond instantly to out of normal situations. Temperature monitoring requires add-on probe. |
| Real-Time event control | Set automatic power actions based on your schedule. Restart systems every day to reduce memory bloat. Power up resources only when needed for energy management, lifecycle extension or security. |
| Landline Modem Option | The add-on landline modem supports data calls from terminal devices using the CLI, and direct dial from a tone telephone for simple on/off control when more sophisticated means are not available. Voice modem also allows phone dial tone control with voice response (Basic functions only) |
| Network Management | Setup and Control functions can be linked to any SNMP v2c compatible manager. The iBoot-PDU MIB is downloadable from the iBoot-PDU Support & Downloads page. Reports to syslog server. |
Pays for Itself with the First Service Call Saved
Don't let the cost of downtime keep you from meeting your service and revenue expectations. Keep your critical systems running without expensive service calls. Use low-cost remote power control to automatically reboot failed devices and get up and running in the most cost effective way possible.
iBoot-PDU4-N20 will save you time and money by reducing costly downtime. Just point your browser to the iBoot-PDU, login and you are one click away from bringing that failed system back to life. iBoot-PDU will even detect failed systems and take immediate action.
iBoot - Minimizing Cost of Downtime
eBook & Downtime Calculator
Optional Accessories
Dual Temperature Probe
Add an optional USB Plug-N-Play Dual Temperature Probe for iBoot-PDU. This temperature data can be used to monitor or to program complex sequences of outlet actions and notifications to respond instantly to out of normal situations.USB Landline Modem
The add-on landline modem supports data calls from terminal devices using the CLI, and direct dial from a tone telephone for simple on/off control when more sophisticated means are not available. Voice modem also allows phone dial tone control with voice response (Basic functions only)Add Cloud Connected iBoots
iBoot Cloud Service (iBCS) allows customers with iBoot-PDU to access and control multiple iBoot units in multiple locations by consolidating all units into one sign-on and interface.Locking Power Cables
Eliminate accidental and vibration disconnects using Zonit zLock Universal Locking Power Cables.iBoot-PDU4-N20 Package Contents
- (1) iBoot-PDU4-N20
- (1) 6 ft. NEMA 5-20P Power Cable
- (2) 1U Rack Mount Ears
- (1) 6 ft. Cat5 Network Cable
- (1) 6 ft. USB-A to USB Mini-B Cable (for Serial)
- (1) Quick-Start Guide
- (1) 3-Year Warranty
iBoot-PDU4-N20 Resources
iBoot-PDU4-N20 Datasheet (PDF)
iBoot-PDU4-N20 Manual (PDF)
Setup - Tips & Tricks (Link)
Automation - Tips & Tricks (Link)
Dataprobe iBoot-PDU4-N20 Specifications
| Mechanical |
|
||||||||
| Environmental |
|
||||||||
| A/C Power Input | NEMA 5-20 Linecord 115VAC 20 Amps combined total switched per Linecord Supplied with NEMA 5-20 Linecord, attached |
||||||||
| Network | 10/100 Ethernet Web, Telnet, SNMP, SMTP Port Assignable for Web and Telnet. SSL Security on Web control |
||||||||
| USB Ports | 4 x USB A ports for accessories, modem, temperature probe, etc.
1 x USB B port for serial port and external battery |
||||||||
| Optional - Temperature Module | USB Dual Temperature Sensors. Sensor 2 on 1m cable. | ||||||||
| Optional - Landline Modem | 56Kbps V.92 Global Compliance, Data or Tone Dial (DTMF) control | ||||||||
| Switched Outlet | 4 x NEMA 5-15 Receptacle, 12 Amps Max per Receptacle, 20 Amps Max Total per Linecord |
||||||||
| Compliance | UL/cUL Listed 60950-1, 2nd Edition 2014-10-14 (US) CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Canada)
CE Marked FCC Part 15 Class B |
