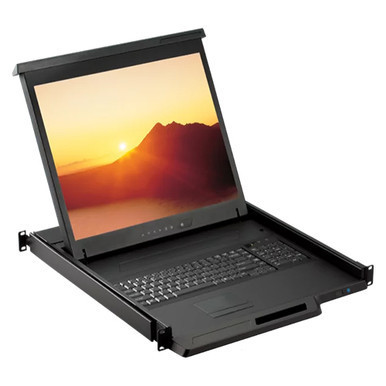

Austin Hughes H119-X

19" 1U, 1024p LCD console / KVM drawer

No reviews yet
Product Code: H119-X
MSRP: $2,223.00
$2,051.00
(You save $172.00 )
Choose Options:

The H119 is a 1U 19" High Brighness rackmount LCD monitor drawer. CyberView provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

Drawer Features and Display Benefits

  • 1000cd/m_ brightness for 19" LED LCD
  • 1280 x 1024 native resolution / 16.7M colors
  • Lower power consumption
  • High shock & vibration resistance
  • Minimum EMI emissions
  • Short depth design of 520mm ( 20.5" )
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • DVI-D / HDMI 1.3 (HDCP 1.1) video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • S-Video + Composite ( BNC )
  • Audio input & output
  • DC Power: 12, 24, 48, 125 V DC
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Touchscreen: Capacitive 1-pt / Resistive 1-pt

H119 Specifications



Mechanical
Product Dimensions (Height x Width x Depth)
Single Console 1.73 x 17.4 x 20.5 inches
(44 x 442 x 520 millimeters)
Console with KVM 1.73 x 17.4 x 24.4 inches
(44 x 442 x 620 millimeters)
Package Dimensions (Height x Width x Depth)
Single Console / Console with KVM 5.5 x 23.2 x 31.8 inches
(140 x 590 x 808 millimeters)
Net Weight
Single Console 29 pounds (13.2 kilograms)
Console with KVM 31.9 pounds (14.5 kilograms)
Gross Weight
Single Console 40 pounds (18.2 kilograms)
Console with KVM 44.9 pounds (20.4 kilograms)
Mounting Distance
Single Console 20.9 to 29.9 inches
(530 to 760 millimeters)
Console with KVM 20.9 to 33.1 inches
(530 to 840 millimeters)
Console Ports
Video Input VGA
Video Option DVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video (4-pin) - NTSC and PAL
Composite (BNC) - NTSC and PAL
Keyboard and Mouse Combo (USB or PS2)
VGA Console 6-foot Cable (CB-6) Drawer end: DB-15 (VGA + USB Keyboard / Mouse)
Server end: VGA + USB type A
LCD Screen
LCD Panel Size (Diagonal) 19 inches
Backlight Type LED
Native Resolution 1280 x 1024
Brightness (candela per square meter) 1000
Colors 16.7 million
Contrast Ratio (Typical) 1000:1
Viewing Angle (Left / Right / Up / Down) 85° / 85° / 80° / 80°
Viewing Angle (Horizontal x Vertical) 170° x 160°
Response Time (Milliseconds) 5
Dot Pitch (Millimeters) 0.294
Display Area (Millimeters) 376.32 Horizontal x 270.33 Vertical
Surface Treatment Haze 25%, Hard-coating
Surface Hardness 3H
Mean Time Between Failures (Hours) 30,000
Audio Option
Speaker 2 x 2-Watt (Dual Stereo)
Input Connector 3.5-millimeter stereo jack
Input Impedance / Power Level 30 Ohms / 750 Millivolts
Output Connector 3.5-millimeter stereo jack
Output Impedance / Power Level 30 Ohms / 2.8 Volts
Power
Power Input Auto-sensing 100 to 240 Volts AC, 50 / 60 Hertz
Power Consumption (Single Console / with KVM)
Screen on Maximum 35 Watts / Maximum 65 Watts
Power saving mode Maximum 4 Watts / Maximum 34 Watts
Power button off Maximum 1 Watt / None
Environmental
Operating Temperature 0 to 55 Degrees Celsius
Storage Temperature -20 to 60 Degrees Celsius
Operating Humidity 20% to 90%, non-condensing
Relative Humidity 5% to 90%, non-condensing
Operating Altitude 16,000 feet
Non-operating Altitude 40,000 feet
Shock 10G acceleration (11 milliseconds duration)
Vibration 10 to 300 Hertz, 0.5G RMS random vibration
Regulatory Compliance
EMC FCC and CE certified
Safety CE / LVD certified
Environment RoHS2 and REACH compliant
