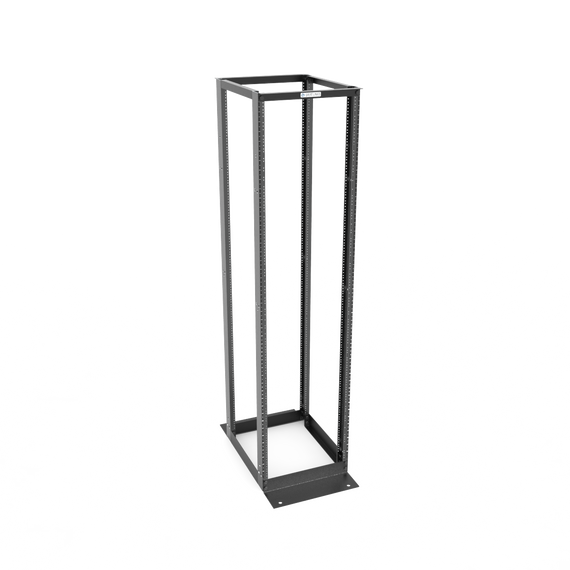

Great Lakes GL-4P
4 Post Standard Racks (4P)
Product Code:
GL-4P
MSRP:
$707.00
$612.73
(You save
$94.27
)
EFFORTLESS 4-POST RACK FOR SERVER APPLICATIONS
- 4 Post Rack
- Tapped channels (with RMU markings) for 19" mounting
- Overall depth listed below is with toe-out footprint
- Rail Rating 1500 lbs.
- Color: Black
- Standards: UL2416, RoHS II
4PM6 Four Post Rack Overview
The 4PM6 Rack is designed to securely hold 19" rack mount equipment, networking equipment, etc using 3/8" sq. (M6) Cage Nuts for mounting in the rails. Components of the 4PM6 4-Post Rack will ship in three separate boxes. Boxes will be marked with the box number and an item number.
4PM6 Four Post Rack Specifications
| Part No. | RMU | H" | W" | Channel Depth" |
Overall Depth" |
Rail Rating lbs. |
| 4P-45U24M6 | 45 | 84 | 20 | 24 | 36 | 1500 |
| 4P-45U29M6 | 45 | 84 | 20 | 29 | 41 | 1500 |
| 4P-45U32M6 | 45 | 84 | 20 | 32 | 44 | 1500 |
| 4P-45U36M6 | 45 | 84 | 20 | 36 | 48 | 1500 |
| 4P-45U42M6* | 45 | 84 | 20 | 42 | 54 | 1500 |
Certifications: UL Listed 2416 (parts marked with * are not UL Listed)
Construction: Vertical Uprights, Top and Bottom Depth Brackets and Top and Bottom Width Brackets, 12 ga.steel
Finish: Black Powder Coat
Grounding: Ground lug installed on Vertical Uprights
Rail Type: 3/8" sq. (M6) Cage Nuts
Total Max. Load Capacity: 1500 lbs.
4P1224 Four Post Rack Overview
4P1224 Racks are designed to securely hold 19" rack mount equipment, networking equipment, etc using 12-24 tapped rails for mounting. Components of the 4P1224 4-Post Rack will ship in three separate boxes. Boxes will be marked with the box number and an item number.
4P1224 Four Post Rack Specifications
| Part No. | RMU | H" | W" | Channel Depth" |
Overall Depth" |
Rail Rating lbs. |
| 4P-45U24 | 45 | 84 | 20 | 24 | 36 | 1500 |
| 4P-45U29 | 45 | 84 | 20 | 29 | 41 | 1500 |
| 4P-45U32 | 45 | 84 | 20 | 32 | 44 | 1500 |
| 4P-45U36 | 45 | 84 | 20 | 36 | 48 | 1500 |
| 4P-45U42* | 45 | 84 | 20 | 42 | 54 | 1500 |
| 4P-52U24 | 52 | 96.25 | 20 | 24 | 36 | 1500 |
| 4P-52U29 | 52 | 96.25 | 20 | 29 | 41 | 1500 |
| 4P-52U32 | 52 | 96.25 | 20 | 32 | 44 | 1500 |
| 4P-52U36 | 52 | 96.25 | 20 | 36 | 48 | 1500 |
| 4P-52U42* | 52 | 96.25 | 20 | 42 | 54 | 1500 |
| 4P-59U24 | 59 | 108.5 | 20 | 24 | 36 | 1500 |
| 4P-59U29 | 59 | 108.5 | 20 | 29 | 41 | 1500 |
| 4P-59U32 | 59 | 108.5 | 20 | 32 | 44 | 1500 |
| 4P-59U36 | 59 | 108.5 | 20 | 36 | 48 | 1500 |
| 4P-59U42* | 59 | 108.5 | 20 | 42 | 54 | 1500 |
Certifications: UL Listed 2416 (parts marked with * are not UL Listed)
Construction: Vertical Uprights, extruded aluminum; Top and Bottom Depth Brackets and Top and Bottom Width Brackets, 12 ga.steel
Finish: Black Powder Coat
Grounding: Ground lug installed on Vertical Uprights
Rail Type: 1#12-24 tapped
Total Max. Load Capacity: 1500 lbs.
