NTI FIBER-CPLR-x

Fiber Optic Couplers

No reviews yet
Product Code: FIBER-CPLR-x
$1.55
Choose Options:

NTI’s Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection.  View "more details" for full descriptions of each SKU to fond the perfect Fiber Optic Coupler for your application.

All listed adapters feature:

  • Included end cap covers keep out dust and contaminants
  • RoHS compliant

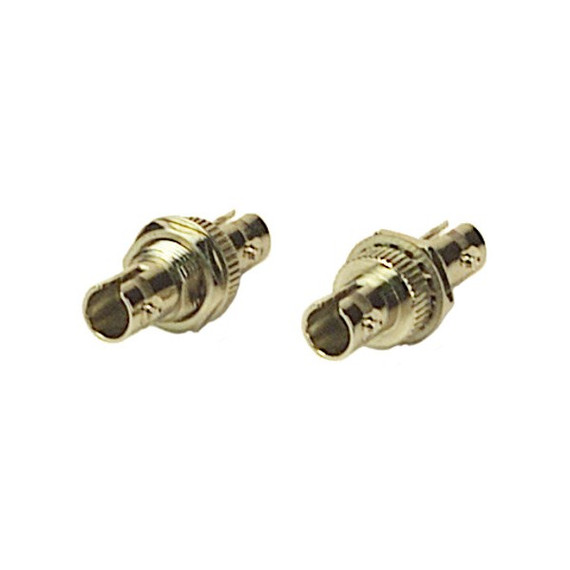

ST-ST Simplex Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-M-STST Multimode ST-ST
  • Multimode has bronze alignment sleeves.
  • Singlemode has ceramic alignment sleeves.
  • Features a panel-mount design.
    • Compatible with FIBER-BOXWALL-24 wall mount fiber enclosure and FIBER-BOXRACK-xx rack mount fiber enclosures.
  • OD: 0.27"
  • Maximum panel thickness: 1/8"
  • End caps keep out dust and contaminants.
FIBER-CPLR-S-STS Singlemode ST-ST

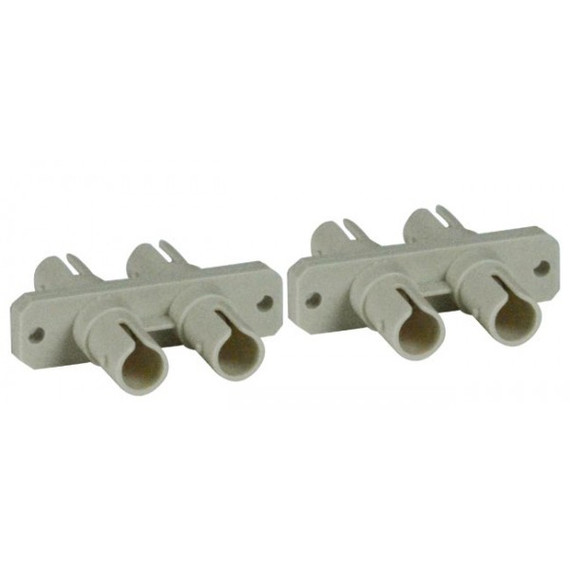

ST-ST Duplex Multimode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DM-STST ST-ST Duplex Multimode Fiber Optic Coupler
  • ST-ST female-to-female duplex fiber coupler.
  • Ivory plastic body.
  • Duplex multimode connector.
  • End caps keep out dust and contaminants.

ST-SC Duplex Multimode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DM-STSC ST-SC Duplex Multimode Fiber Optic Coupler
  • ST-SC female-to-female duplex fiber coupler.
  • Beige plastic body.
  • Duplex multimode connectors.
  • End caps keep out dust and contaminants.

ST-SC Duplex Hybrid Metal Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DH-M-STSC ST-SC Duplex Hybrid Metal Fiber Optic Coupler
  • ST style female to SC style female
  • Use in Singlemode or Multimode applications.
  • Free-hanging or panel-mount design.
  • Dust caps protect against debris and contamination
  • Connector 1: ST/APC
  • Connector 2: SC/APC
  • Material: Copper
  • RoHS Compliant

SC-SC Simplex Fiber Optic Couplers

SKU Connector Types Details
FIBER-CPLR-S-SCSC  Singlemode SC-SC
  • SC-SC female-to-female fiber coupler.
  • Plastic body.
  • Available in multimode and singlemode.
  • Multimode has bronze alignment sleeves.
  • Singlemode has ceramic alignment sleeves.
  • End caps keep out dust and contaminants.
FIBER-CPLR-M-SCSC Multimode SC-SC

SC-SC Simplex Multimode Fiber Optic Coupler, Metal

SKU Connector Types Details
FIBER-CPLRM-M-SCSC SC-SC Simplex Multimode Fiber Optic Coupler, Metal
  • Female-to-female SC simplex multimode coupler.
  • Low insertion loss. ≤0.2dB
  • Metal construction ensures long life and durability.
  • Flanged design for panel mounting.
  • Flammability rating: UL94-V0
  • Dust caps keep out dust and contaminants.

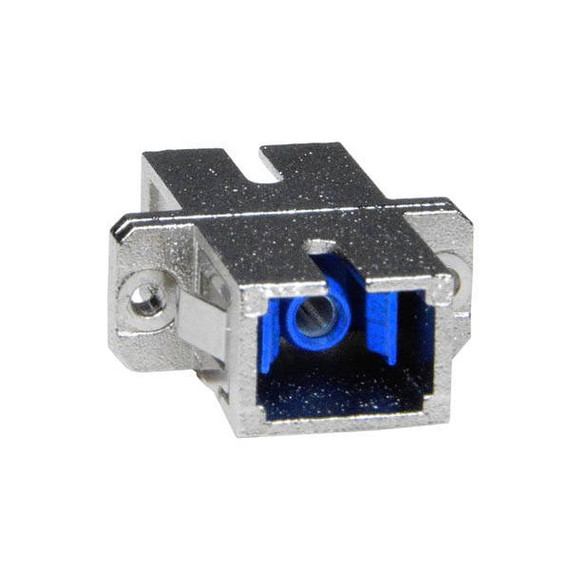

SC-SC Simplex Singlemode Fiber Optic Coupler, Metal

SKU Connector Types Details
FIBER-CPLRM-S-SCSC SC-SC Simplex Singlemode Fiber Optic Coupler, Metal
  • Female-to-female SC simplex 9-micron singlemode coupler.
  • Low insertion loss: ≤0.2dB
  • Metal construction ensures long life and durability.
  • Flanged design for panel mounting.
  • Dust caps keep out dust and contaminants.

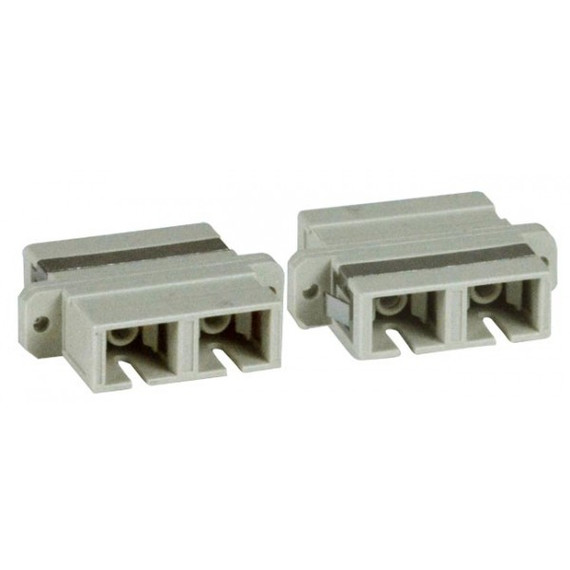

SC-SC Duplex Multimode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DM-SCSC SC-SC Duplex Multimode Fiber Optic Coupler
  • SC-SC female-to-female duplex fiber coupler.
  • Ivory plastic body.
  • Duplex multimode connectors with ceramic alignment sleeves.
  • End caps keep out dust and contaminants.

LC-LC Simplex Singlemode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-S-LCLC LC-LC Simplex Singlemode Fiber Optic Coupler
  • LC-LC female-to-female fiber coupler.
  • Blue plastic body.
  • Singlemode connector with ceramic alignment sleeves.
  • End caps keep out dust and contaminants.

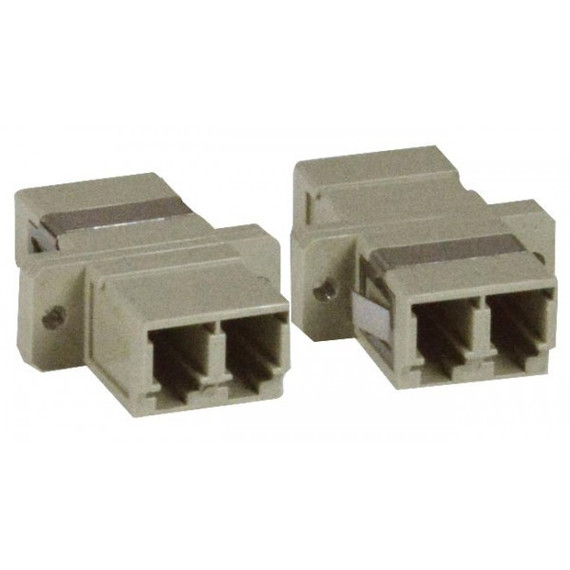

LC-LC Duplex Multimode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DM-LCLC LC-LC Duplex Multimode Fiber Optic Coupler
  • LC-LC female-to-female duplex fiber coupler.
  • Beige plastic body.
  • Duplex multimode connector with ceramic alignment sleeves.
  • End caps keep out dust and contaminants.

LC-LC OM3 Duplex Multimode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DM-LCLC-OM3 LC-LC Duplex Multimode Fiber Optic Coupler
  • LC-LC female-to-female duplex fiber coupler.
  • Beige plastic body.
  • Duplex multimode connector with ceramic alignment sleeves.
  • End caps keep out dust and contaminants.



More details

Write a Review

FIBER-CPLR-x-STST: ST-ST Simplex Fiber Optic Coupler

NTI

Fiber Optic Couplers




NTI’s Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection.  View "more details" for full descriptions of each SKU to fond the perfect Fiber Optic Coupler for your application.

All listed adapters feature:

  • Included end cap covers keep out dust and contaminants
  • RoHS compliant

ST-ST Simplex Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-M-STST Multimode ST-ST
  • Multimode has bronze alignment sleeves.
  • Singlemode has ceramic alignment sleeves.
  • Features a panel-mount design.
    • Compatible with FIBER-BOXWALL-24 wall mount fiber enclosure and FIBER-BOXRACK-xx rack mount fiber enclosures.
  • OD: 0.27"
  • Maximum panel thickness: 1/8"
  • End caps keep out dust and contaminants.
FIBER-CPLR-S-STS Singlemode ST-ST


ST-ST Duplex Multimode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DM-STST ST-ST Duplex Multimode Fiber Optic Coupler
  • ST-ST female-to-female duplex fiber coupler.
  • Ivory plastic body.
  • Duplex multimode connector.
  • End caps keep out dust and contaminants.

ST-SC Duplex Multimode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DM-STSC ST-SC Duplex Multimode Fiber Optic Coupler
  • ST-SC female-to-female duplex fiber coupler.
  • Beige plastic body.
  • Duplex multimode connectors.
  • End caps keep out dust and contaminants.

ST-SC Duplex Hybrid Metal Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DH-M-STSC ST-SC Duplex Hybrid Metal Fiber Optic Coupler
  • ST style female to SC style female
  • Use in Singlemode or Multimode applications.
  • Free-hanging or panel-mount design.
  • Dust caps protect against debris and contamination
  • Connector 1: ST/APC
  • Connector 2: SC/APC
  • Material: Copper
  • RoHS Compliant

SC-SC Simplex Fiber Optic Couplers

SKU Connector Types Details
FIBER-CPLR-S-SCSC  Singlemode SC-SC
  • SC-SC female-to-female fiber coupler.
  • Plastic body.
  • Available in multimode and singlemode.
  • Multimode has bronze alignment sleeves.
  • Singlemode has ceramic alignment sleeves.
  • End caps keep out dust and contaminants.
FIBER-CPLR-M-SCSC Multimode SC-SC

SC-SC Simplex Multimode Fiber Optic Coupler, Metal

SKU Connector Types Details
FIBER-CPLRM-M-SCSC SC-SC Simplex Multimode Fiber Optic Coupler, Metal
  • Female-to-female SC simplex multimode coupler.
  • Low insertion loss. ≤0.2dB
  • Metal construction ensures long life and durability.
  • Flanged design for panel mounting.
  • Flammability rating: UL94-V0
  • Dust caps keep out dust and contaminants.

SC-SC Simplex Singlemode Fiber Optic Coupler, Metal

SKU Connector Types Details
FIBER-CPLRM-S-SCSC SC-SC Simplex Singlemode Fiber Optic Coupler, Metal
  • Female-to-female SC simplex 9-micron singlemode coupler.
  • Low insertion loss: ≤0.2dB
  • Metal construction ensures long life and durability.
  • Flanged design for panel mounting.
  • Dust caps keep out dust and contaminants.

SC-SC Duplex Multimode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DM-SCSC SC-SC Duplex Multimode Fiber Optic Coupler
  • SC-SC female-to-female duplex fiber coupler.
  • Ivory plastic body.
  • Duplex multimode connectors with ceramic alignment sleeves.
  • End caps keep out dust and contaminants.

LC-LC Simplex Singlemode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-S-LCLC LC-LC Simplex Singlemode Fiber Optic Coupler
  • LC-LC female-to-female fiber coupler.
  • Blue plastic body.
  • Singlemode connector with ceramic alignment sleeves.
  • End caps keep out dust and contaminants.

LC-LC Duplex Multimode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DM-LCLC LC-LC Duplex Multimode Fiber Optic Coupler
  • LC-LC female-to-female duplex fiber coupler.
  • Beige plastic body.
  • Duplex multimode connector with ceramic alignment sleeves.
  • End caps keep out dust and contaminants.

LC-LC OM3 Duplex Multimode Fiber Optic Coupler

SKU Connector Types Details
FIBER-CPLR-DM-LCLC-OM3 LC-LC Duplex Multimode Fiber Optic Coupler
  • LC-LC female-to-female duplex fiber coupler.
  • Beige plastic body.
  • Duplex multimode connector with ceramic alignment sleeves.
  • End caps keep out dust and contaminants.





VPI 1-Year limited Warranty

Fiber Optic Couplers DataSheet ⇩
FIBER-SPLT-DM-STST Drawing ⇩
FIBER-CPLR-DM-STSCDrawing ⇩
FIBER-BLKHD-M-SCSC Drawing ⇩
FIBER-CPLR-DM-SCSC Drawing ⇩
FIBER-CPLR-S-LCLC Drawing ⇩
FIBER-CPLR-DM-LCLC Drawing ⇩
FIBER-CPLR-DM-LCLC-OM3 Drawing ⇩
