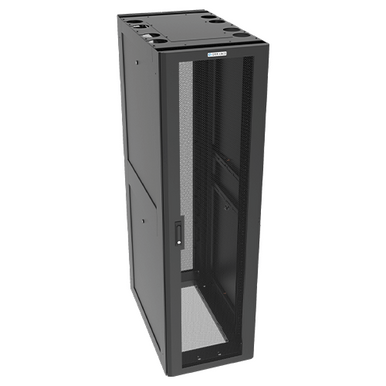

Great Lakes Seismic Zone 4 EZ Series Cabinet

Great Lakes Seismic Zone 4 EZ Series Cabinet – Built for Strength, Security, and High-Performance IT Deployments

The Great Lakes Seismic Zone 4 EZ Series Cabinet is a rugged and adaptable enclosure engineered to protect critical IT infrastructure in seismically active regions. Constructed with a fully welded steel frame, this cabinet meets GR-63-CORE seismic standards, providing exceptional durability, security, and cable management solutions. Whether installed in high-risk seismic zones or standard data center environments, the EZ Series delivers the strength and flexibility needed for mission-critical applications.

Key Features & Benefits

Seismic-Ready & High-Capacity Design

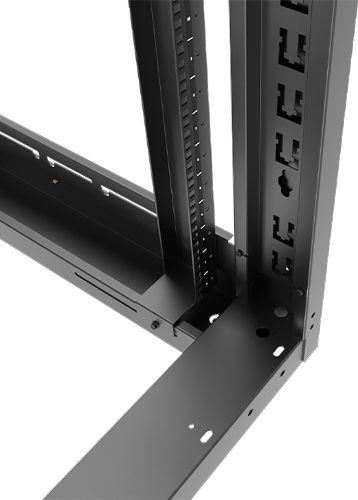

• Fully welded steel frame with 3/8" square (M6) mounting rails for superior stability and durability.
• Adjustable depth rails allow easy accommodation of diverse IT hardware.
• Supports up to 1,500 lbs. in seismic-rated environments and an impressive 6,000 lbs. in non-seismic setups.

Integrated Power & Cable Management

• Built-in PDU/lacing bars in each rear corner facilitate structured cable routing and PDU mounting.
• Keyhole-pattern button mounts simplify PDU installations, while lacing points support optional cinch straps to keep cables secure and organized.

Security & Airflow Optimization

• Mesh front door and split-mesh rear doors enhance airflow efficiency while ensuring equipment security.
• 3-point locking swing handle provides enhanced access control to prevent unauthorized entry.

Customizable Cable Access & Top Panel Options

• Interchangeable top panels (solid, perforated, brush, or fan tops) allow for custom airflow and cable routing solutions.
• 4-inch cable access cutouts along the top provide structured cable pass-through.
• Open-bottom design ensures seamless integration for large PDU power cords and bulk cable bundles.

Certified for Compliance & Safety

• GR-63-CORE Certified for seismic protection (GL52UG2EZ-3048 model).
• Other sizes conform to GR-63-CORE seismic standards, ensuring compliance in seismic-prone areas.
• RoHS II compliant, supporting environmentally responsible manufacturing.

Available Color Options

• Black (B)
• Winter White (W)

Engineered for Stability in High-Risk Environments

The Great Lakes Seismic Zone 4 EZ Series Cabinet is the ideal solution for data centers, telecom facilities, and mission-critical installations in seismically active regions. Designed to provide maximum protection, efficient cable management, and airflow optimization, this cabinet ensures equipment stability and security even in high-impact scenarios.

SKU Table
