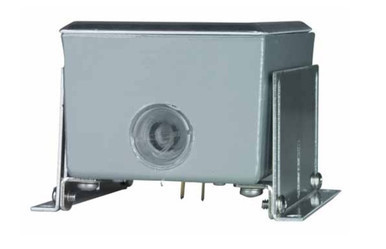

Liquid Detection, Spot Detector

The E-LD-SPDT water detector features gold-plated probes and microchip technology for dependable detection of conductive liquids. The E-LD-SPDT can be operated from 11-27 VAC/VDC. For application flexibility, SPDT contacts are provided to connect to a monitoring system. A height-adjustable, cast-aluminum, weatherproof enclosure is standard. A green LED visible outside the box indicates power. A red LED indicates water detected. E-LD-SPDT-P includes a 12VDC AC Adapter.

The E-LD-SPDT can be used with any contact-closure monitoring panel. The SPDT contacts may be wired normally open or normally closed, allowing wiring flexibility to handlemost installations.

• Features gold-plated probes and microchip technology for dependable detection of conductive liquids.
• Adjustable detection level.
• Probe height adjustable 0" to 1.5" (0 to 38mm)
• SPDT alarm contacts
• Weatherproof enclosure
• Ideal solution for sensing leaks under a raised computer floor or air conditioning drip pans.
• Use in large-scale network control centers, data centers, server rooms/closets, unattended remote shelters, mechanical equipment rooms, sensitive areas with overhead piping, industrial process control rooms, etc.
• Powered by E-2D/5D/16D NTI Small, Mediium and Large Enterprise Environment Monitoring Systems.

Formerly the NTI ENVIROMUX-LD-SPDT.
