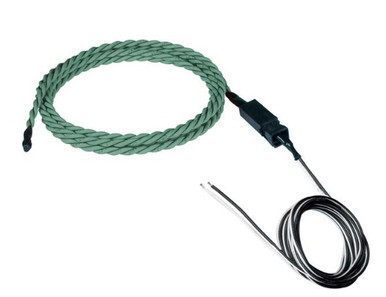

Chemical Detection Sensor Rope

The E-CDx-y Chemical Detection Sensor is used to reliably sense the presence of acids, bases, and other conductive liquids. The cable’s abrasion-resistant polymer core increases its strength and durability. The cable’s sensing wires are enclosed in a non-conductive polymer mesh to help eliminate false alarms

The chemical sensing cable (x) is available in standard lengths (1,10,50 and 100 foot) but custom lengths over 100 feet (30 meters) up to 1000 feet (305 meters) are available. The two-wire connecting cable (y) is available in 5/10/20/50/100 feet but custom lengths over 100 feet (30 meters) up to 1000 feet (305 meters) are available

NTI E-CDx-y Specifications

• For detecting the presence of chemical liquid.
  • Reliably senses acids, bases, and other conductive liquids.
• Detects liquid depth >0.1" (2.5 mm).
• Minimum puddle: 0.6" (15 mm) diameter.
• Features a non-conductive polymer mesh that prevents false alarms caused by dirt/dust buildup, metal contact, or pressure on the rope.
• Chemical resistant – cable functions normally after seven-day exposure to:
  • Fresh deionized water
  • Tap water
  • Sulfuric acid, H₂SO₄ (98%)
  • Sulfuric acid, H₂SO₄ (50%)
  • Hydrochloric acid, HCl (37%)
  • Sodium hydroxide, NaOH (10%)
  • Aqua regia, HNO₃₊₃ HCl
  • Ethylene glycol, C₂H₆O₂ (60% in DI water)
• Voltage and current:
  • Open Circuit: 5VDC max @ 1㎂.
  • Closed circuit: <300mV @ 10.7mA.
• Available chemical sensor cable (x) lengths: 1/10/50/100 feet.
  • 100% waterproof
  • Contact your Server Racks Online representative for cable lengths over 100 feet (30 meters) - supports up to 1,000 feet (305 meters).
• Available 2-wire plenum cable (y) lengths: 5/10/20/50/100 feet.
  • Plenum rating: CL2P (UL)
  • Diameter: 0.25 in (6.35mm)
  • Contact your Server Racks Online representative for cable lengths over 100 feet (30 meters) – supports up to 1,000 feet (305 meters).
• Regulatory approvals: CE, RoHS
• Use self-adhesive clips (E-CLP10-LD or E-CLP100-LD) to prevent sensor rope cable from shifting after installation
