NTI

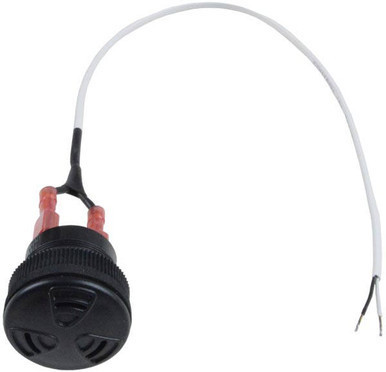

Rugged Miniature Piezo Alarm, Panel Mount, 103 dB
Product Code:
E-BEEP1-x
Condition:
New
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
The E-BEEP1 is a general purpose piezo siren to provide audible indication of alert when configured to respond to variations in a sensor’s readings. Operating on 12VDC, the E-BEEP1 can be controlled and powered by an E-2D, E-5D or E-16D Enterprise Environmental Monitoring System. With an optional 12VDC power supply, the E-BEEP1 can also be controlled by an E-MINI-LXO.
- Emits loud continuous tone to deter intruders or alert personnel.
- Output level: 95 to 103 dB at 2 feet.
- Input voltage: 5-15VDC.
- Panel mount.
- 2-wire interface.
- Maximum cable length: 1000 ft (304.8 m).
- Epoxy encapsulated and polarity protected.
- Water, humidity and vibration resistant.
- ASTM B117 and IP 68 rated protection.
- Operating temperature: -4 to 149°F (-20 to 65°C)
- Dimensions (WxD): 1.3x1.15 in (33x29.2 mm).
- Current consumption: 50mA @ 12VDC.
- Powered by E-2D/5D/16D.
- Regulatory approvals: RoHS, UL.
- Terminated with 22 AWG plenum 2-wire cable.
- Available lengths: 1/10/50/100/200/400/600/800/1000 feet.
The E-BEEP1 is a general purpose piezo siren to provide audible indication of alert when configured to respond to variations in a sensor’s readings. Operating on 12VDC, the E-BEEP1 can be controlled and powered by an E-2D, E-5D or E-16D Enterprise Environmental Monitoring System. With an optional 12VDC power supply, the E-BEEP1 can also be controlled by an E-MINI-LXO.
- Emits loud continuous tone to deter intruders or alert personnel.
- Output level: 95 to 103 dB at 2 feet.
- Input voltage: 5-15VDC.
- Panel mount.
- 2-wire interface.
- Maximum cable length: 1000 ft (304.8 m).
- Epoxy encapsulated and polarity protected.
- Water, humidity and vibration resistant.
- ASTM B117 and IP 68 rated protection.
- Operating temperature: -4 to 149°F (-20 to 65°C)
- Dimensions (WxD): 1.3x1.15 in (33x29.2 mm).
- Current consumption: 50mA @ 12VDC.
- Powered by E-2D/5D/16D.
- Regulatory approvals: RoHS, UL.
- Terminated with 22 AWG plenum 2-wire cable.
- Available lengths: 1/10/50/100/200/400/600/800/1000 feet.
