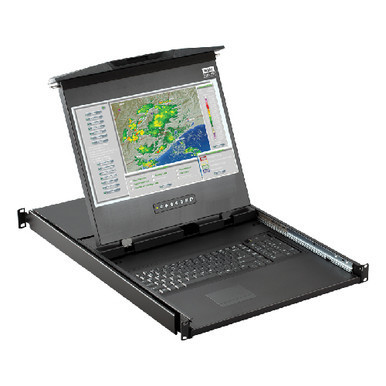

Austin Hughes DF117

17" LCD (1920 x 1080) 1U dual slides LCD Console Drawer

No reviews yet
• Orderable ⓘ This product is available for order. Lead times vary by product and manufacturer.

A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time

Lead time and availability are subject to change without notice.
Product Code: DF117
Condition: New
Shipping: Calculated at Checkout
MSRP: $1,782.00
$1,645.00
(You save $137.00 )
-->
Choose Options:

The DF117 is a 1U 17" Full HD rackmount LCD monitor drawer. CyberView provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

F117 Drawer Features and Dispaly Benefits

  • 1U dual slide 17" widescreen LCD console drawer
  • Support Full HD with 1080p resolution
  • 104-key keyboard with touchpad
  • Enhanced aesthetics with new molded front panel and two point lock

Optional Configurations (Contact us for availability)

  • HDMI 1.4 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio input & output
  • DC Power: 12, 24, 48, 125 V DC

DF117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)
Single Console / Console w/ KVM 5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net Weight
Single Console 26.2 lbs. (11.9 kg)
Console w/ KVM 28.4 lbs. (12.9 kg)
Gross Weight
Single Console 39.4 lbs. (17.9 kg)
Console w/ KVM 41.6 lbs. (18.9 kg)
Mounting Distance
Single Console / Console w/ KVM 26 ~ 34.3 in
(660 ~ 870 mm)
Console Ports
Video Input VGA + HDMI single link
KB / MS USB interface
VGA console 6ft cable (CB-6A)
--OR--
DVI-D console 6ft cable (CX-6A)
Drawer end: DB-15 + USB type A x 2
Server end: DB-15 + USB type A x 2
Drawer end: DVI-D + USB type A x 2
Server end: DVI-D + USB type A x 2
LCD Screen
LCD panel size (diagonal) 17.3"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m²) 300
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 1000 : 1
Viewing angle (L/R/U/D) 89/89/89/89
Viewing angle (H x V) 160° x 140°
Response time (ms) 25
Dot pitch (mm) 0.1989
Display area (mm) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 15,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption (Single Console / with KVM)
Screen on Max. 14W / Max. 45W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C
Storage Temperature -20 to 60°C
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS3 & REACH compliant
More details

Write a Review

17" LCD (1920 x 1080) 1U dual slides LCD Console Drawer

Austin Hughes

17" LCD (1920 x 1080) 1U dual slides LCD Console Drawer



The DF117 is a 1U 17" Full HD rackmount LCD monitor drawer. CyberView provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

F117 Drawer Features and Dispaly Benefits

  • 1U dual slide 17" widescreen LCD console drawer
  • Support Full HD with 1080p resolution
  • 104-key keyboard with touchpad
  • Enhanced aesthetics with new molded front panel and two point lock

Optional Configurations (Contact us for availability)

  • HDMI 1.4 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio input & output
  • DC Power: 12, 24, 48, 125 V DC

DF117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)
Single Console / Console w/ KVM 5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net Weight
Single Console 26.2 lbs. (11.9 kg)
Console w/ KVM 28.4 lbs. (12.9 kg)
Gross Weight
Single Console 39.4 lbs. (17.9 kg)
Console w/ KVM 41.6 lbs. (18.9 kg)
Mounting Distance
Single Console / Console w/ KVM 26 ~ 34.3 in
(660 ~ 870 mm)
Console Ports
Video Input VGA + HDMI single link
KB / MS USB interface
VGA console 6ft cable (CB-6A)
--OR--
DVI-D console 6ft cable (CX-6A)
Drawer end: DB-15 + USB type A x 2
Server end: DB-15 + USB type A x 2
Drawer end: DVI-D + USB type A x 2
Server end: DVI-D + USB type A x 2
LCD Screen
LCD panel size (diagonal) 17.3"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m²) 300
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 1000 : 1
Viewing angle (L/R/U/D) 89/89/89/89
Viewing angle (H x V) 160° x 140°
Response time (ms) 25
Dot pitch (mm) 0.1989
Display area (mm) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 15,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption (Single Console / with KVM)
Screen on Max. 14W / Max. 45W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C
Storage Temperature -20 to 60°C
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS3 & REACH compliant
