Server Technology

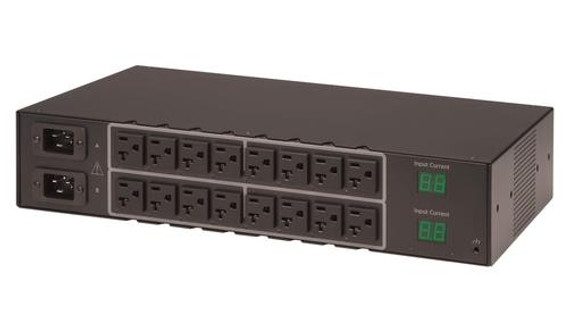

Fail-Safe Transfer Switch, Switched, (16) 5-20R Outlets, 20A 100-120V
Product Code:
CW-16HF1A452
Condition:
New
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
- Current Rating: 20A
- Voltage Rating: 100-120V
- Outlets: (16) NEMA 5-20R
- Circuit Protection: Breakers
- Inputs: (2) IEC C20
- Form Factor: 2U x 17.2"W x 10"D
Server Technology CW-16HF1B452 Switched ATS Specifications:
- Input Connector - (2) IEC C20 Power Inlets (cords ordered separately)
- Current Rating - 20A
- Input Voltage Rating - 100-120 VAC 50/60 Hz
- Outlets - (16) NEMA 5-20R
Features:
- Type - Switched (Networked) with outlet ON/OFF/Reboot control
- Input Current Monitoring - Yes
- Form Factor - 2U, Horizontal Mount (Brackets Included)
- Branch Circuit Protection - User-resettable breakers
- Input Current LEDs - One per input feed
- Expansion Unit to Share One IP Address - Yes
- Temperature/Humidity Sensors - Up to 2 (P/N EMTH-1-1)
- Phase Synchronization Required? - Yes
Recommended Replacements
- Current Rating: 20A
- Voltage Rating: 100-120V
- Outlets: (16) NEMA 5-20R
- Circuit Protection: Breakers
- Inputs: (2) IEC C20
- Form Factor: 2U x 17.2"W x 10"D
Server Technology CW-16HF1B452 Switched ATS Specifications:
- Input Connector - (2) IEC C20 Power Inlets (cords ordered separately)
- Current Rating - 20A
- Input Voltage Rating - 100-120 VAC 50/60 Hz
- Outlets - (16) NEMA 5-20R
Features:
- Type - Switched (Networked) with outlet ON/OFF/Reboot control
- Input Current Monitoring - Yes
- Form Factor - 2U, Horizontal Mount (Brackets Included)
- Branch Circuit Protection - User-resettable breakers
- Input Current LEDs - One per input feed
- Expansion Unit to Share One IP Address - Yes
- Temperature/Humidity Sensors - Up to 2 (P/N EMTH-1-1)
- Phase Synchronization Required? - Yes
