VPI’s CAT8 cables are capable of reaching up to 40Gbps transfer speeds and up to 2GHz bandwidth. These CAT8 patch cords consist of 4 pairs, 24 AWG stranded copper conductors and RJ45 connectors. Cat.8 patch cables are backwards compatible with Cat.5E, Cat.6, Cat6A, and Cat.7.
- Category 8 S/FTP 4-pair 24AWG stranded pure copper cable.
- Max bandwidth: Up to 2,000 MHz (2GHz).
- Max data rate: Up to 40Gps
- Backwards compatible with all CATx categories.
- RJ45 plug with 50 micron gold plated contacts.
- Patch cables & boots are the same color; boots are snagless.
- Overall foil shield around the four pairs protects signals from external noise.
- Available lengths: 1/2/3/5/7/10/15/25/35 feet.
- Available colors: Gray, Black, Blue, White.
- Complies with TIA/EIA 568B standard.
- RoHS Compliant

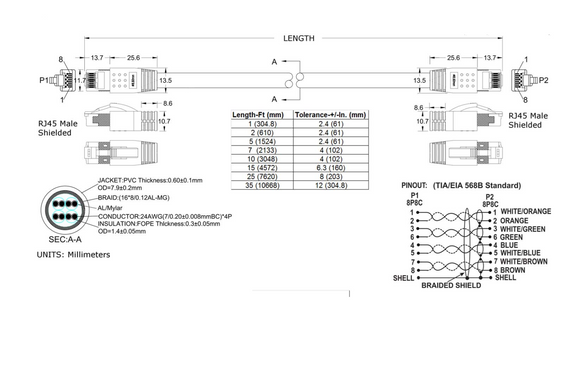

24AWG S/FTP CAT8 Patch Cords Specifications:
- 24AWG stranded STP CAT6.
- 8x8 (RJ45) plugs
- Outside Diameter: 7.9mm
- PVC Jacket
- 50 micron gold plated contacts.
- Complies with TIA/EIA 568B standard.
- UL, ETL, & RoHS compliant.
Environmental
- Operating temperature: 32 to 140°F (0 to 60℃)
CAT8 Stranded S/FTP Patch Cord SKU Table:
| Black | Blue | Gray | White | |
|---|---|---|---|---|
| 1ft | CAT8-1-BLACK | CAT8-1-BLUE | CAT8-1-GRAY | CAT8-1-WHITE |
| 2ft | CAT8-2-BLACK | CAT8-2-BLUE | CAT8-2-GRAY | CAT8-2-WHITE |
| 3ft | CAT8-3-BLACK | CAT8-3-BLUE | CAT8-3-GRAY | CAT8-3-WHITE |
| 5ft | CAT8-5-BLACK | CAT8-5-BLUE | CAT8-5-GRAY | CAT8-5-WHITE |
| 7ft | CAT8-7-BLACK | CAT8-7-BLUE | CAT8-7-GRAY | CAT8-7-WHITE |
| 10ft | CAT8-10-BLACK | CAT8-10-BLUE | CAT8-10-GRAY | CAT8-10-WHITE |
| 15ft | CAT8-15-BLACK | CAT8-15-BLUE | CAT8-15-GRAY | CAT8-15-WHITE |
| 25ft | CAT8-25-BLACK | CAT8-25-BLUE | CAT8-25-GRAY | CAT8-25-WHITE |
| 35ft | CAT8-35-BLACK | CAT8-35-BLUE | CAT8-35-GRAY | CAT8-35-WHITE |
