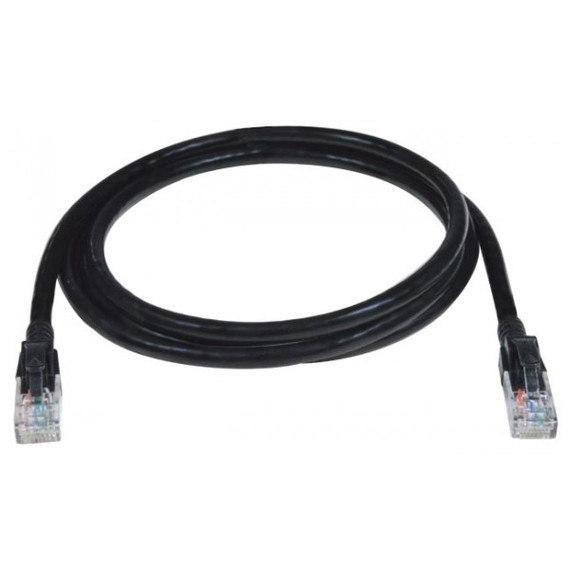

Locking CAT6a Patch Cord Cable -10 Gigabit Unshielded

VPI’s CAT6a 10 Gigabit Patch Cord Cables with Locking Boots and Key provide a secure connection between your CAT6a patch cord and RJ45 port. The locking connectors prevent your CAT6a patch cord from being unplugged from critical ports while in use.

• Used to connect your network card to any of the following:
  • 10GBASE-T Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet

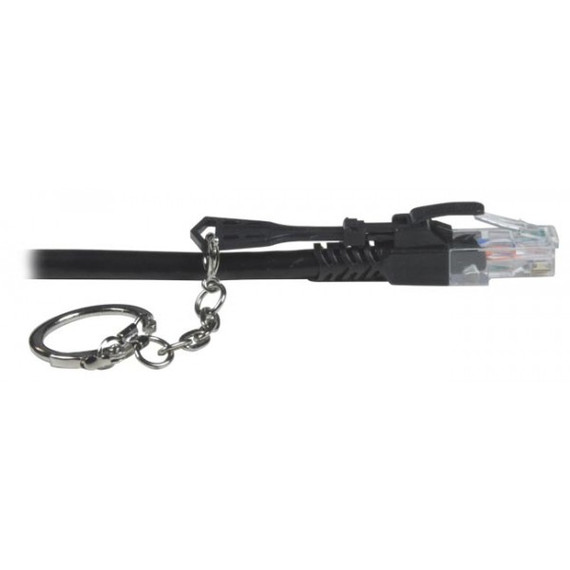

•  Locking boots prevent your Ethernet cable from being unplugged.

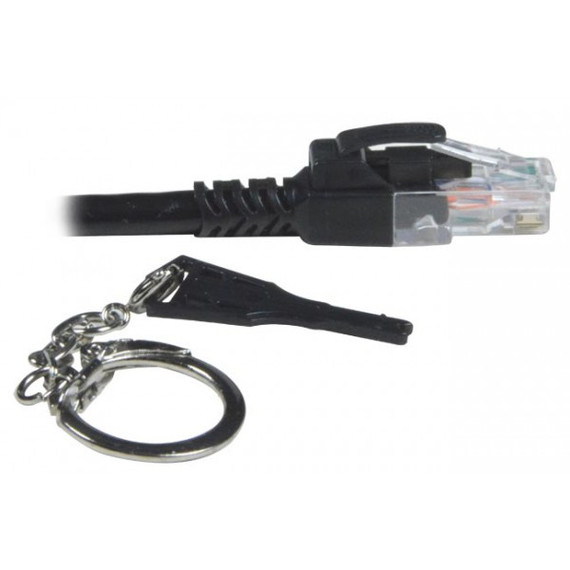

  • Includes 1 key for every cable to unlock the RJ45 connector.
• Wire Gauge: 24AWG
• Complies with TIA/EIA 568B standard.
• Suppresses AXT (Alien Near End Cross Talk) and delivers superior 10 GbE performance
• Bandwidth: 500 MHz.
• Available lengths: 2ft: CAT6A-LOCK-2-BLACK / 5ft: CAT6A-LOCK-5-BLACK / 25ft: CAT6A-LOCK-25-BLACK / 50ft: CAT6A-LOCK-50-BLACK.
• Color: Black

24AWG S/FTP CAT8 Patch Cords Specifications:

• 24 AWG stranded U/UTP CAT6a
• 8x8 (RJ45) plugs.
• Exterior jacket: PVC
• Cable diameter: 0.24 in (6.00 mm) ± 0.15mm
• Connector size (WxDxH): 0.47 x 1.95 x 0.61 in (12.00 x 49.50 x 15.60 mm)
• Key size (WxDxH): 0.59 x 1.42 x 0.08 in (15.00 x 36.00 x 2.00 mm)
• 50 micron gold plated contacts
• Complies with TIA/EIA 568B standard.
• RoHS compliant

Environmental

• Operating Temperature: -4 to 167°F (-20 to 75°C)
