Server Technology C4W48RA-2-11kw
PRO4X Switched 1.9kW - 11kW PDU
Product Code:
C4W48RA-2-11kw
Condition:
New
Availability:
Usually In stock. Typicaly ships within 2 weeks.
Shipping:
Calculated at Checkout
Rack Units:
0U
Form Factor:
0U
Total Number of Outlets:
48
Voltage:
208V
Outlet Type:
C13
Outlet Type:
Cx
Features:
High Temperature Rating
Features:
Locking Outlet
Current (Amps):
30A
Features:
Cascading Option
Features:
Environmental Monitoring
Current (Amps):
60A
Voltage:
120V
$3,622.00
Server Technology's C4W48RA 1-Phase Switched 1.9kW-11kW PRO4X Switched run on our state-of-the-art Xerus network interface platform and provide remote access to power, PDU status, input and branch current monitoring, and outlet on/off control. The PDU features RamLock, a self-locking mechanism to prevent accidental cord disconnects, and our award-winning HDOT Cx outlets that can be deployed as either a C13 or C19. This PDU features 24 dedicated HDOT C13 outlets and 24 HDOT Cx outlets. Switched PDUs are guaranteed secure and feature external authentication and authorization support, while SNMP traps provide automated alerts on power and environmental conditions from Legrand's plug-and-play environmental monitoring sensors like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.

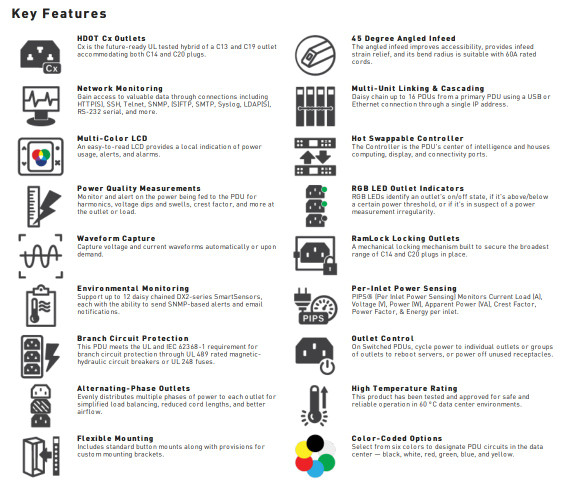

High-Density Outlet Technology - The highest outlet density available in a network-connected PDU meets IEC C13 and C19 specifications, plus high native retention and UL94V-0 flame rating.
HDOT Cx Outlets - Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.
Branch Circuit Protection - This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers.
Per-Inlet Power Sensing - PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.
Waveform Capture - Capture voltage and current waveforms automatically or upon demand.
Power Quality Measurements - Monitor and alert on the power being fed to the PDU for harmonics, voltage dips and swells, crest factor, and more at the outlet or load.
High Temperature Rating - This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
C4W48RA 1.9kW-11kW Switched PDU Specifications
| INPUT | |
| Input Voltage (V) | 120v or 208v |
| Frequency | 50/60 Hz |
| Input Phase | 1-Phase |
| Input Plug | See Below |
| Input Current (A) | 20A, 30A, or 60A |
| Input Current Rated (A) | 16A, 24A, or 48A |
| Input Power Capacity (kW) | 3.3kW, 5.0kW, 10 kW |
| OUTPUT | |
| Outlet 1 Form Factor | (24) x IEC 60320/C13 North American Rating: ≤ 12A @208V L-L (15A Peak) |
| Outlet 2 Form Factor | (24) x Cx North American Rating: ≤ 16A @208V L-L (20A Peak) |
| Total Outlets | 48 (24 x C13 + 24 x Cx) |
| Branch Circuit Protection | UL489 Compliant 2-pole, 20A trip circuit breakers, three (3) branch, rating: ≤ 16A, 10 kAIC Interrupt Rating |
| PHYSICAL | |
| Dimensions | 80.0in tall x 2.2in wide x 2.5in deep [1778mm x 56mm x 64mm] |
| ENVIRONMENTAL | |
| Operating Environment | 32°F to 140°F / 0°C to 60°C | 8%RH to 90%RH non-condensing | < 3000M / 10,000 ft. elevation |
| Storage Environment | -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | < 15,000M / 50,000 ft. elevation |
| Quiescent / Unloaded Power Draw | < 7W for all configurations |
| COMMUNICATIONS & SECURITY | |
| Connectivity | Dual Ethernet, Two (2) 10/100/1000 Mbps (Cat5e/6 connector), Optional Wi-Fi (802.11 a/b/g/n) One (1) Sensor port (RJ45), One (1) PDU Link (RJ45), Two (2) USB-A (5 V / 500 mA), and One (1) USB-B |
| Protocols | Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP |
| MEASUREMENT ACCURACY | |
| LCD Current | ± 0.2% at 0.01 amp resolution |
| GUI Current | ± 0.2% at 0.01 amp resolution |
| Branch Current | ± 1% at 0.01 amp resolution |
| CERTIFICATIONS | |
| North American | Safety: (Listed & Certified, cTUVus mark) UL 62368-1 CSA C22.2 No. 62368-1 EMC: FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A CANICES-003, Class A |
Model Specific Specifications
| SKU | Amperage | Voltage | Input Cord Location | Input Plug Type |
|---|---|---|---|---|
| C4W48RA-0ABE2ED7 | 20A | 208V | Angled/Top Feed | IEC C20 100-240V Inlet (Requires a power cord) |
| C4W48RA-2BBE2ED7 | 20A | 208V | Angled/Top Feed | NEMA L6-20P |
| C4W48RA-2CBE2ED7 | 30A | 208V | Angled/Top Feed | NEMA L6-30P |
| C4W48RA-2QBE2ED7 | 60A | 208V | Angled/Top Feed | IEC 208V/60A 2P+G 6Hr |
| C4W48RA-0ABE2FD7 | 20A | 208V | Angled/Bottom Feed | IEC C20 100-240V Inlet (Requires a power cord) |
| C4W48RA-2BBE2FD7 | 20A | 208V | Angled/Bottom Feed | NEMA L6-20P |
| C4W48RA-1DBE2FD7 | 30A | 120V | Angled/Bottom Feed | NEMA L5-30P |
| C4W48RA-2CBE2FD7 | 30A | 208V | Angled/Bottom Feed | NEMA L6-30P |
| C4W48RA-2PBE2FD7 | 30A | 208V | Angled/Bottom Feed | IEC 240V/30A 2P+PE 6Hr |
| C4W48RA-2QBE2FD7 | 60A | 208V | Angled/Bottom Feed | IEC 208V/60A 2P+G 6Hr |
All products are shipped with a standard 2-year limited parts & labor warranty. An expanded Advanced Replacement Warranty is available to ensure support, device repair or replacement for periods extending beyond two years. View the Server Technology Warranty Program here.
