Server Technology

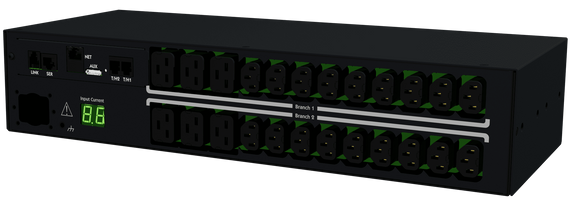

Server Tech C1S24SP-2CAA4A6
- Voltage: 208V 1-Ph
- Amperage: 30A
- Input: NEMA L6-30P
- Output: (18) C13 + (6) Cx
- Form Factor: 2U Horizontal
Server Technology C1S24SP-2CAA4A6: Smart PIPS PRO1, 2U, (18) HDOT IEC C13 + (6) HDOT Cx (C13/C19) Outlets, Input Amp Meter, 208V 30A, NEMA L6-30P, 10 ft (3m) Input Cord, Circuit Breakers, (2) Temperature/Humidity Sensor Capable
| Input Power Capacity (kW): | 5 |
| Input Plug Type: | NEMA L6-30P |
| Input Current (A): | 30 |
| Input Current Rated (A): | 24 |
| Input Nominal Voltage (V): | 208 |
| Input Phase: | 1-Phase (L-L) |
| Input Cord Location: | Horizontal |
| Outlet Form Factor: |  |
| Total Outlets: | 24 |
| IEC C13 Count: | 18 |
| IEC Cx Count: | 6 |
arrow_drop_downSee More Specifications
Please Note: This PDU is built-to-order. Some models require a minimum order quantity of 50 pcs.
- Voltage: 208V 1-Ph
- Amperage: 30A
- Input: NEMA L6-30P
- Output: (18) C13 + (6) Cx
- Form Factor: 2U Horizontal
Server Technology C1S24SP-2CAA4A6: Smart PIPS PRO1, 2U, (18) HDOT IEC C13 + (6) HDOT Cx (C13/C19) Outlets, Input Amp Meter, 208V 30A, NEMA L6-30P, 10 ft (3m) Input Cord, Circuit Breakers, (2) Temperature/Humidity Sensor Capable
| Input Power Capacity (kW): | 5 |
| Input Plug Type: | NEMA L6-30P |
| Input Current (A): | 30 |
| Input Current Rated (A): | 24 |
| Input Nominal Voltage (V): | 208 |
| Input Phase: | 1-Phase (L-L) |
| Input Cord Location: | Horizontal |
| Outlet Form Factor: | |
| Total Outlets: | 24 |
| IEC C13 Count: | 18 |
| IEC Cx Count: | 6 |
arrow_drop_downSee More Specifications
Please Note: This PDU is built-to-order. Some models require a minimum order quantity of 50 pcs.
No resources are available for this product at this time.
Request a document below.*
For information regarding orders or shipping, please visit the Ordering Information page.
*Subject to availability
