Server Technology

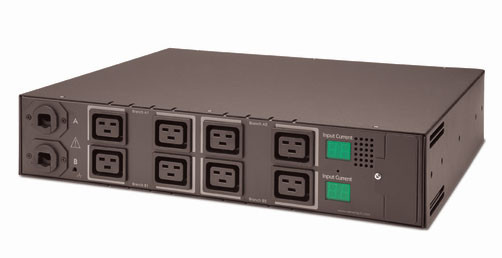

Fail-Safe Transfer Switch, Metered, (8) C19 Outlets, 20A 208-240V - 3.3kW
Product Code:
C-8HF2-C203
Condition:
New
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
- Current Rating: 16A (20A max)
- Voltage Rating: 208V-240V
- Outlets: (8) IEC C19
- Circuit Protection: Fused
- Inputs: (2) IEC C20
- Form Factor: 2U x 17.2"W x 14.13"D
Server Technology C-8HF2-C203 Metered ATS Specifications:
- Input Connector - (2) IEC C20
- Input Cords - Sold separately (PTCord-1)
- Input Current Rating - ≤ 16A (20A max)
- Input Voltage Rating - 208V-240V L-L nominal, 60Hz
- Outlets - (8) IEC C19
- Output Current Rating - ≤ 16A (20A max)
- Output Usable Power - 3.3kW
- Output Max Power - 4.1kW @ 208V
Features:
- Type - Metered (Not Networked)
- Input Current Monitoring - Yes
- Form Factor - 2U, Horizontal Mount (Brackets Included)
- Branch Circuit Protection - Internally fused
- Input Current LEDs - One per input feed
- Expansion Unit to Share One IP Address - NA
- Temperature/Humidity Sensors - No
- Phase Synchronization Required? - No
Recommended Replacements
- Current Rating: 16A (20A max)
- Voltage Rating: 208V-240V
- Outlets: (8) IEC C19
- Circuit Protection: Fused
- Inputs: (2) IEC C20
- Form Factor: 2U x 17.2"W x 14.13"D
Server Technology C-8HF2-C203 Metered ATS Specifications:
- Input Connector - (2) IEC C20
- Input Cords - Sold separately (PTCord-1)
- Input Current Rating - ≤ 16A (20A max)
- Input Voltage Rating - 208V-240V L-L nominal, 60Hz
- Outlets - (8) IEC C19
- Output Current Rating - ≤ 16A (20A max)
- Output Usable Power - 3.3kW
- Output Max Power - 4.1kW @ 208V
Features:
- Type - Metered (Not Networked)
- Input Current Monitoring - Yes
- Form Factor - 2U, Horizontal Mount (Brackets Included)
- Branch Circuit Protection - Internally fused
- Input Current LEDs - One per input feed
- Expansion Unit to Share One IP Address - NA
- Temperature/Humidity Sensors - No
- Phase Synchronization Required? - No
