Server Technology

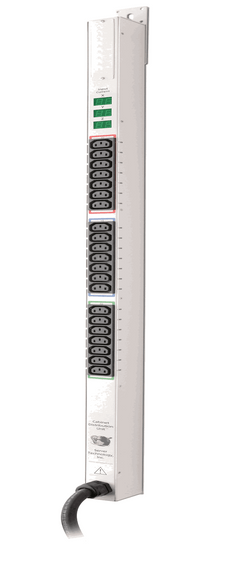

Smart CDU High-Density Metered 21 IEC C13 outlets, 3 x LED Meters, 3 Phase D input w/ L1520
The Server Technology C-21VD-L1520 is a 208V, 20 amp, metered rack mount CDU with 3 phase power and the ability to load balance the phases using LED load meters. This unit has 21 IEC C13 outlets, a locking 3 phase NEMA L15-20P in-feed plug, and 3 integrated local amp meters, one for each phase. This smart PDU provides nearly twice (1.732x) the power density of a standard 208V circuit. With local LED input current monitoring network engineers can utilize the Cabinet PDU's True RMS Power Monitor to precisely measure the current (in amps) that network devices are drawing on the power circuit. As new equipment units are added to the power drop, immediately observe its impact on the cumulative current draw. This allows the engineer to safely load each circuit to its maximum allowable load capacity without the danger of overloading the power circuit. Power, temperature and humidity levels are available via web browser, and SNMP alarms are activated when conditions exceed thresholds. The smart CDU also supports Enterprise View PDU Manager. This gives the engineer the ability to manage a large installation of Networked CDUs from one location, view and access up to 1,000 Smart CDUs from a single web interface.
C-21VD-L1520 Features:
- Vertical mounting, Zero U
- 3 Local LED Phase Meters w/ True RMS Reading
- Hardwired power
- Steel Case Enclosure
- Industrial Grade Outlets
- High Quality Powder Coat
Standard Lead Time: 24 hours
The Server Technology C-21VD-L1520 is a 208V, 20 amp, metered rack mount CDU with 3 phase power and the ability to load balance the phases using LED load meters. This unit has 21 IEC C13 outlets, a locking 3 phase NEMA L15-20P in-feed plug, and 3 integrated local amp meters, one for each phase. This smart PDU provides nearly twice (1.732x) the power density of a standard 208V circuit. With local LED input current monitoring network engineers can utilize the Cabinet PDU's True RMS Power Monitor to precisely measure the current (in amps) that network devices are drawing on the power circuit. As new equipment units are added to the power drop, immediately observe its impact on the cumulative current draw. This allows the engineer to safely load each circuit to its maximum allowable load capacity without the danger of overloading the power circuit. Power, temperature and humidity levels are available via web browser, and SNMP alarms are activated when conditions exceed thresholds. The smart CDU also supports Enterprise View PDU Manager. This gives the engineer the ability to manage a large installation of Networked CDUs from one location, view and access up to 1,000 Smart CDUs from a single web interface.
C-21VD-L1520 Features:
- Vertical mounting, Zero U
- 3 Local LED Phase Meters w/ True RMS Reading
- Hardwired power
- Steel Case Enclosure
- Industrial Grade Outlets
- High Quality Powder Coat
Standard Lead Time: 24 hours
