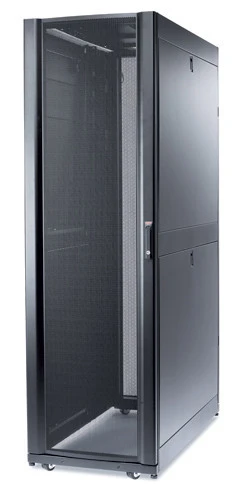

APC AR3307
SX 48U 24" Wide x 47" Deep Enclosure
UPC:
731304256281
Condition:
New
Shipping:
Calculated at Checkout
Rack Units:
48U
Width:
19"
Depth:
0-10"
Depth:
11-20"
Depth:
21-25"
Depth:
25-30"
Depth:
31-40"
Depth:
>40"
Depth:
Adjustable
Door Type:
Perforated
Door Type:
Split Door
Features:
Lift-off Side Panels
Features:
Locking Handle
MSRP:
$5,530.00
$3,688.24
(You save
$1,841.76
)
- Height: 48U (88.9" / 2258mm)
- Weight Capacity: 3000 lbs.
- Depth: 48.1" (1222mm)
- Usable Depth: 47.2" (1199mm)
- Width: 23.6" (599mm)
- Rails: 19" EIA
fully enclosed
The APC NetShelter SX AR3307 is a 48U 600mm Wide x 1200mm Deep Enclosure which is optimized for cable management, power distribution, and airflow management.
Includes: Baying hardware, Documentation CD, Key(s), Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels, User Manual
APC NetShelter SX AR3307 Detail View
APC AR3307 Specifications:
- Net Weight: 329.00 lbs. (149.55 kg.)
- Weight Capacity (static load): 3000.00 lbs. (1363.64 kg)
- Weight Capacity (dynamic load): 2250.00 lbs. (1022.73 kg)
- Minimum Mounting Depth: 7.52 inches (191 mm)
- Maximum Mounting Depth: 41.73 inches (1060 mm)
- Rack Height: 48U
- Color: Black
- Vertical Posts: 16 gauge
- Front Door: 16 gauge
- Rear Door: 18 gauge
- Roof: 18 gauge
- EIA Mounting Rails: 14 gauge
- Side Panels: 18 gauge
- Regulatory Approvals: EIA-310-D
- envir_compliance_id: 1,11
- Height: 48U (88.9" / 2258mm)
- Weight Capacity: 3000 lbs.
- Depth: 48.1" (1222mm)
- Usable Depth: 47.2" (1199mm)
- Width: 23.6" (599mm)
- Rails: 19" EIA
fully enclosed
The APC NetShelter SX AR3307 is a 48U 600mm Wide x 1200mm Deep Enclosure which is optimized for cable management, power distribution, and airflow management.
Includes: Baying hardware, Documentation CD, Key(s), Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels, User Manual
APC NetShelter SX AR3307 Detail View
APC AR3307 Specifications:
- Net Weight: 329.00 lbs. (149.55 kg.)
- Weight Capacity (static load): 3000.00 lbs. (1363.64 kg)
- Weight Capacity (dynamic load): 2250.00 lbs. (1022.73 kg)
- Minimum Mounting Depth: 7.52 inches (191 mm)
- Maximum Mounting Depth: 41.73 inches (1060 mm)
- Rack Height: 48U
- Color: Black
- Vertical Posts: 16 gauge
- Front Door: 16 gauge
- Rear Door: 18 gauge
- Roof: 18 gauge
- EIA Mounting Rails: 14 gauge
- Side Panels: 18 gauge
- Regulatory Approvals: EIA-310-D
- envir_compliance_id: 1,11
