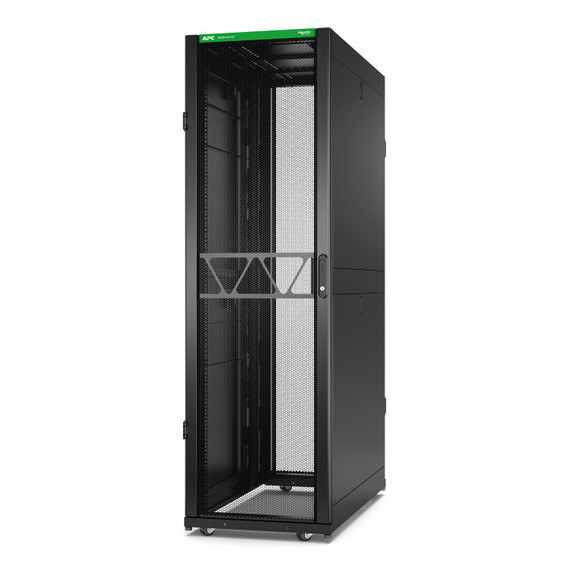

SX Gen 2 Enclosure - 42U, 1200mm(D), 600mm(W)

The APC NetShelter AR3300 is one of the world's most versatile rack enclosure for demanding IT environments and now redesigned with larger load capacities and better airflow, it enables higher-density computing than ever before. The newly redesigned Gen2 NetShelter SX series is APC's latest generation of rack enclosure solution, influenced by many years of customer feedback and addresses current IT market trends for AI, high-density server, and networking applications. With a strong focus on cooling, power distribution, cable management and environmental monitoring, the Netshelter SX AR3300B2 and AR3300W2 provide a reliable rack-mounting environment for mission-critical equipment.

• Ideal for AI, high density server and networking applications
• 2nd Gen model with higher load capacity and better airflow
• Ample space, organization, security and convenience features
• 42U height to easily roll through doorways
• Easily fit through standard doorways

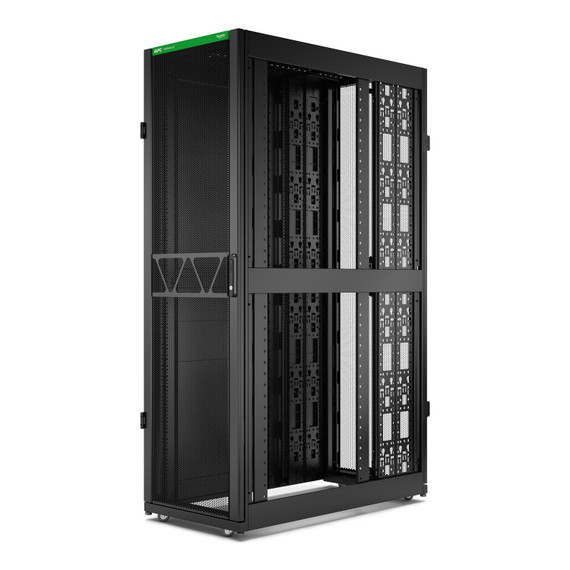

• Split rear doors

AR3300 NetShelter SX Specifications

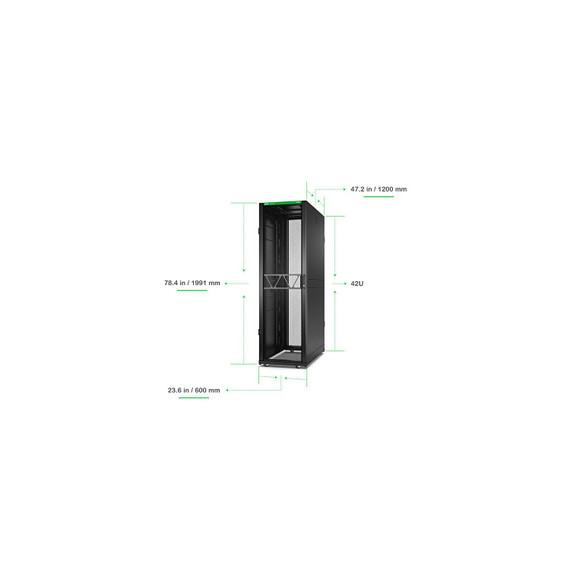

Height: 42U (78.4" / 1991mm)
Width: 23.6 in (60 cm)
Depth: 47.2 in (120 cm)
Net Weight: 288.89 lb (131.04 kg)
Maximum Mounting Depth: 41.26 in (104.8 cm)
Minimum mounting depth: 7.50 in (19.05 cm)
Rack Width: 19"
EIA Mounting Rails: 14 gauge, 19" EIA, adjust in .25 in. (6 mm) increments
Front Door: 16 gauge, 270˚(180 bayed), reversible, curved front, 80% Perf.
Rear Door: 18 gauge, 270˚, flat front, 80% Perf.
Side Panels: 18 gauge, lift off, Split, lockable
Roof: 18 gauge, 5 large cable entry points (3 front, 2 rear)
Vertical Posts: 16 gauge
Permanent permissible load: 2250 lb(US) (1020.6 kg) dynamic; 4000 lb(US) (1814.4 kg) static
Standards: UL 2416; EIA-310E

Included with the AR3300B2 / AR330W2

• Baying hardware
• Key(s)
• Keyed-alike doors and side panels
• Leveling feet
• Mounting Hardware
• Pre-installed casters
• Side Panels
