APC AR3157

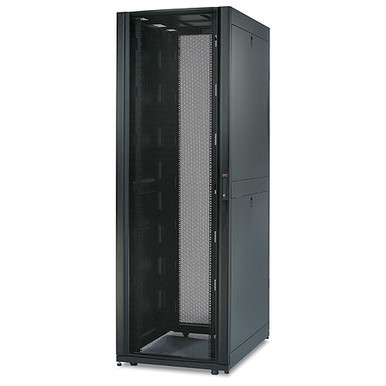

Server Rack Enclosure, 48U, Black, 2258H x 750W x 1070D
• Orderable ⓘ
This product is available for order. Lead times vary by product and manufacturer.
A lead time will be provided after the order has been placed, or upon request before ordering.
Request Current Lead Time
Lead time and availability are subject to change without notice.
UPC:
7.31304E+11
Condition:
New
Shipping:
Calculated at Checkout
Rack Units (RMU):
48
Color:
Black
Mounting Width:
19"
Depth:
11-20"
Depth:
31-40"
Depth:
Adjustable
Door Type:
Mesh
Features:
Lift-off Side Panels
Features:
Locking Handle
Dynamic Load Capacity:
2250lbs
Rack Features:
Integrated Cable Management
Rack Features:
Locking Handles
Rack Features:
Lift-off Side Panels
Rack Units (RMU):
48
Static Load Capacity:
3000lbs
Usable Rack Depth:
36.26"
MSRP:
$5,250.00
$3,718.75
-->
(You save
$1,531.25
)
APC offers rack enclosures with advanced cooling, power distribution, and cable management for server and networking applications in IT environments.
The APC AR3157 comes with Casters, Doors, Ground Studs, Installation Guide, Leveling feet, Mounting Hardware, Roof, Side Panels
AR3157 Features:
Adjustable front vertical mounting rail, adjustable mounting depth, cable access, casters, deep form factor (42"/1070mm), door ventilation exceeds, 830 in2 (5355 cm2), expanded cable management, facilitates overhead cable management, facilitates overhead power distribution, facilitates rear/vertical cable management, guaranteed compatibility, leveling feet, lockable doors and side panels, mounts two APC metered PDUs in one rear channel, multi-vendor equipment compatibility, numbered U positions, optimized depth, protective grounding provisions, provides mounting option for PDUs, provides security between enclosures when bayed together, quick release doors, quick release side panels, removable doors and side panels, reversible doors, ships fully assembled, split rear doors, structural stability, tool-less mounting, UBC Zone 4 stabilization provisions, ventilated doors with scalable cooling options, vertical mounting rails with square holes, wide form factor (29.5"/750mm)
APC AR3157 Specifications:
Net Weight: 372.00 lbs. (169.09 kg.)
Weight Capacity (static load): 3000 lbs. (1363.64 kg.)
Weight Capacity (dynamic load): 2250 lbs. (1022.73 kg.)
Minimum Mounting Depth: 11.22 in. (285 mm.)
Maximum Mounting Depth: 36.26 in. (921 mm.)
Color: Black
Vertical Posts: 14 gauge
Front Door: 16 gauge
Rear Door: 16 gauge
Roof: 18 gauge
EIA Mounting Rails: 14 gauge
Side Panels: 18 gauge
Regulatory Approvals: EIA-310-D
Standards: UL 60950
ROHS/WEEE Compliance: RoHS
No resources are available for this product at this time.
Request a document below.*
For information regarding orders or shipping, please visit the Ordering Information page.
*Subject to availabilityProduct Specifications
| Specification | Details |
|---|---|
| Rack Units (RMU) | 48 |
| Color | Black |
| Mounting Width | 19" |
| Depth | 11-20" |
| Depth | 31-40" |
| Depth | Adjustable |
| Door Type | Mesh |
| Features | Lift-off Side Panels |
| Features | Locking Handle |
| __promocondition | rack |
| Dynamic Load Capacity | 2250lbs |
| Rack Features | Integrated Cable Management |
| Rack Features | Locking Handles |
| Rack Features | Lift-off Side Panels |
| Rack Units (RMU) | 48 |
| Static Load Capacity | 3000lbs |
| Usable Rack Depth | 36.26" |
| __customlabel | TAA Compliant |
| __customlabel | PCI Compliant |
