Great Lakes

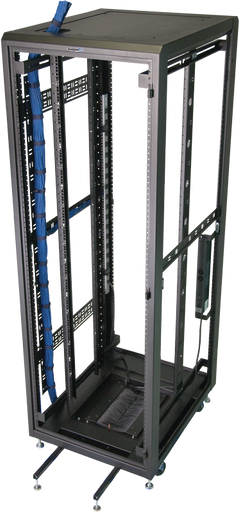

31U, 32"D Enhanced Series Server Rack (FRAME ONLY)
- Height: 31U (60" / 1524mm)
- Weight Capacity: 600 lbs.
- Depth: 32" (813mm)
- Usable Depth: 30" (762mm)
- Width: 24" (610mm)
- Rails: 19" EIA
base unit w/ two pair of M6 rails
Great Lakes 6001E-2432 Base Unit (FRAME ONLY) with two (2) pair of black powder coated M6 rails.
Dimension: 60"H x 24"W x 32"D
Rack Spaces: 31 RMU, 19" EIA 310-D Compliant
Weight Capacity: 600 lbs.
**Product pictured is with optional accessories added including doors and sides.
Great Lakes 6001E-2432 Base Unit Features:
- Fully Welded Steel Construction, #16 Gauge Steel
- Universal M6 Cage Nut Rails Standard, #12 Gauge Steel
- Rack Mounting Hardware Included
- Rails are Infinitely Adjustable, Front to Rear (Max. Rail Spacing is Cabinet Depth minus 2 inches)
- Rails with RMU Markings
- TRC (True Rail Count) Rails: This certifies that the number of RMU are true and all accessible within the door opening.
- (3) 10/32 x 1.5" Copper Plated Grounding Studs (One in bottom, two in top)
- Durable Powder Coat Finish
- Field Reversible Door Hinges (No Additional Hardware Required)
- Height: 31U (60" / 1524mm)
- Weight Capacity: 600 lbs.
- Depth: 32" (813mm)
- Usable Depth: 30" (762mm)
- Width: 24" (610mm)
- Rails: 19" EIA
base unit w/ two pair of M6 rails
Great Lakes 6001E-2432 Base Unit (FRAME ONLY) with two (2) pair of black powder coated M6 rails.
Dimension: 60"H x 24"W x 32"D
Rack Spaces: 31 RMU, 19" EIA 310-D Compliant
Weight Capacity: 600 lbs.
**Product pictured is with optional accessories added including doors and sides.
Great Lakes 6001E-2432 Base Unit Features:
- Fully Welded Steel Construction, #16 Gauge Steel
- Universal M6 Cage Nut Rails Standard, #12 Gauge Steel
- Rack Mounting Hardware Included
- Rails are Infinitely Adjustable, Front to Rear (Max. Rail Spacing is Cabinet Depth minus 2 inches)
- Rails with RMU Markings
- TRC (True Rail Count) Rails: This certifies that the number of RMU are true and all accessible within the door opening.
- (3) 10/32 x 1.5" Copper Plated Grounding Studs (One in bottom, two in top)
- Durable Powder Coat Finish
- Field Reversible Door Hinges (No Additional Hardware Required)
