Server Technology

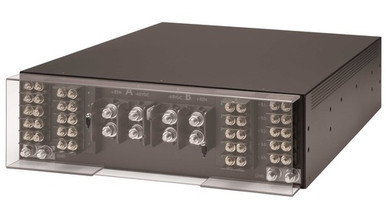

Neg 48VDC PDU Expansion Unit, 2x300A Inputs / 10x125A Outputs
Product Code:
48DCXB-10-2X300-E0
Weight:
78.00 LBS
This product has been discontinued.
Start Call for Price Product View Page short code
Ended Call for Price Product View Page short code
- Rated Amperage: 2x 300A
- Typical Power: 28.8 kW
- Outputs: High Current: (10) 125A
- Circuit Protection: TPC Fuses or Circuit Breakers
- Inputs: (2) -48VDC Input Terminal
- Form Factor: 3U x 20"D x 17"W
Connect this ServerTech 48DCXB-10-2X300-E0 Expansion Unit to a 48DCWB-10-2X300-E0 Cabinet PDU using the included RJ-12 cable to control two power input circuits and manage outlets (individual or groups) under 1 IP address.
- Inputs: (2) -48VDC (-40 to -60) Input Terminal
- Rated Amperage: 300A each, 600A total
- Typical Power: 28.8 kW
- Outputs: High Current: (10) 125A
- Circuit Protection: TPC Fuses or Circuit Breakers
- Form Factor: 3U Horizontal x 20" Deep - 19" EIA Mounting
- Rated Amperage: 2x 300A
- Typical Power: 28.8 kW
- Outputs: High Current: (10) 125A
- Circuit Protection: TPC Fuses or Circuit Breakers
- Inputs: (2) -48VDC Input Terminal
- Form Factor: 3U x 20"D x 17"W
Connect this ServerTech 48DCXB-10-2X300-E0 Expansion Unit to a 48DCWB-10-2X300-E0 Cabinet PDU using the included RJ-12 cable to control two power input circuits and manage outlets (individual or groups) under 1 IP address.
- Inputs: (2) -48VDC (-40 to -60) Input Terminal
- Rated Amperage: 300A each, 600A total
- Typical Power: 28.8 kW
- Outputs: High Current: (10) 125A
- Circuit Protection: TPC Fuses or Circuit Breakers
- Form Factor: 3U Horizontal x 20" Deep - 19" EIA Mounting
